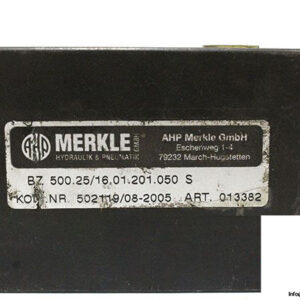

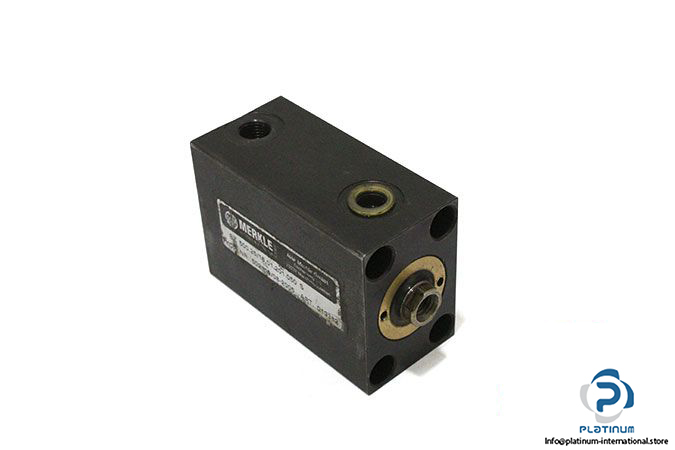

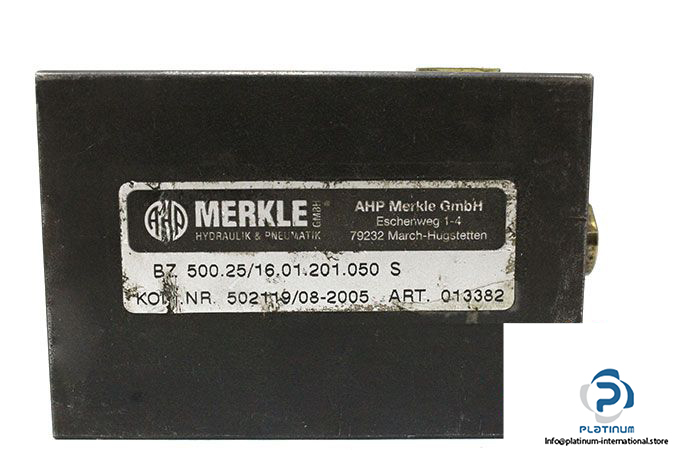

Manufacturer: MERKLE

Type: Hydraulic Block Cylinder

Model: BZ500.25/16.01.201.050 S

Art No.: 013382

Piston Diameter: 25 mm

Rod Diameter: 16 mm

Stroke: 50 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Maximum operating pressure: 500 bar

Piston rod thread: Female

Temperature range: 0 …. 180 °C

Connection: G ¼

Stroke (total length): 94 mm

Width: 65 mm

Weight: 1.6 kg
