Manufacturer: MERKLE

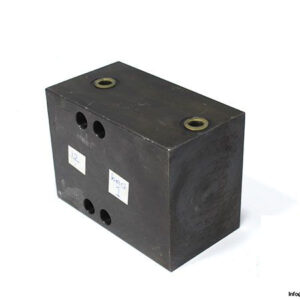

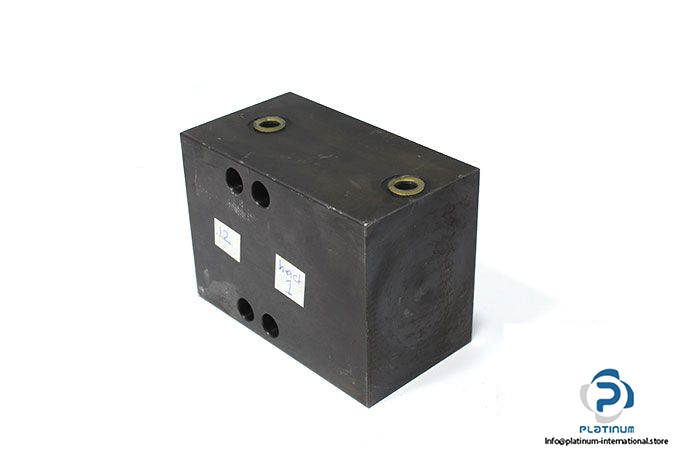

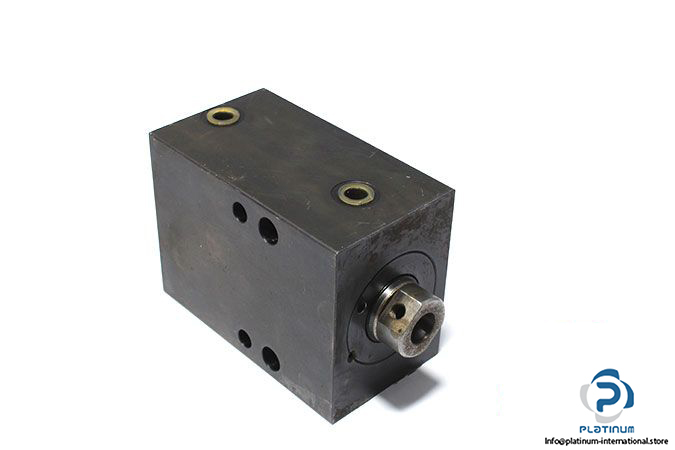

Type: Hydraulic Block Cylinder

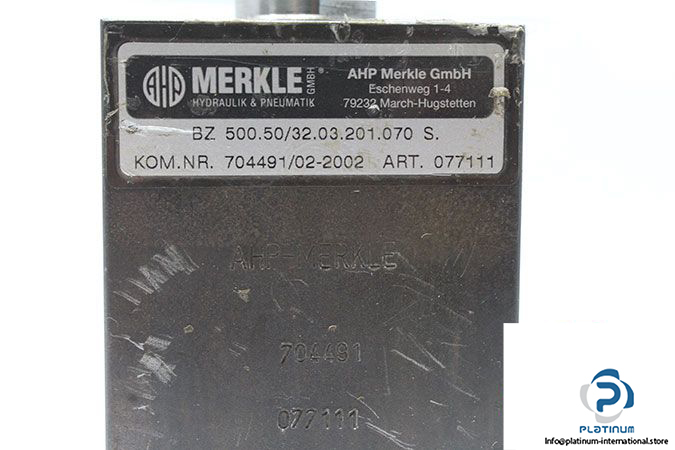

Model: BZ 500.50/32.03.201.070 S

Piston Diameter: 50 mm

Rod Diameter: 32 mm

Stroke: 70 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Maximum operating pressure: max. 500 bar

Piston rod thread: Female

Temperature range: 0 …. 180 °C

Connection: G ¼”

Weight: 6.8 kg
