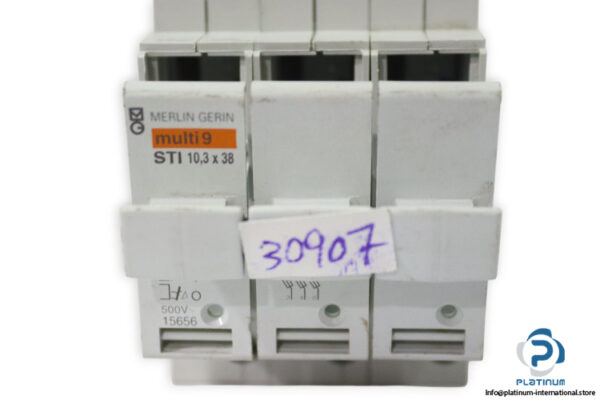

Merlin Gerin STI 10.3X38 Fuse Switch Disconnector
The Merlin Gerin STI10.3X38 Fuse Switch Disconnector from the Multi9 range is a reliable protection and isolation device designed for industrial and commercial power systems. It combines fuse protection and disconnection in one compact unit, ensuring safe and efficient circuit management.
Manufacturer: Merlin Gerin
Type: Fuse Switch Disconnector
Model: STI10.3X38
Part No.: 15656 / 3303430156567

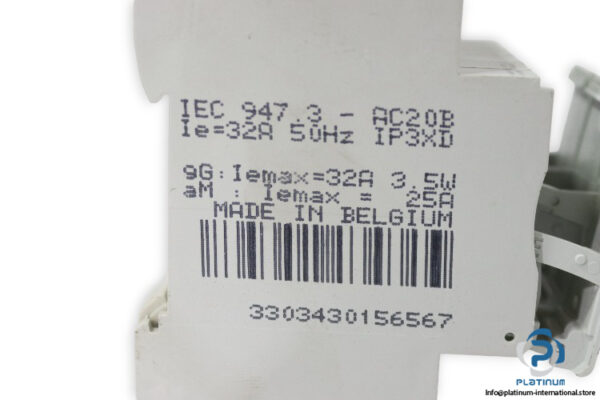

Technical Information
- Range: Multi9
- Product Name: Multi9 STI
- Rated Operational Voltage: 500 V AC
- Rated Operational Current: 32 A
- Frequency: 50 Hz
- Fuse Size: 10 x 38 mm
- Fuse Links Rated Current Max.: gG: 35 A / aM: 25 A
- Fuse-Link Power Loss Max.: 3.5 W gG
- Pole No.: 3
- Protection Class: IP20
- Ambient Temperature: -20 / 60 °C
- Dimensions: 81 x 54 x 75 mm
