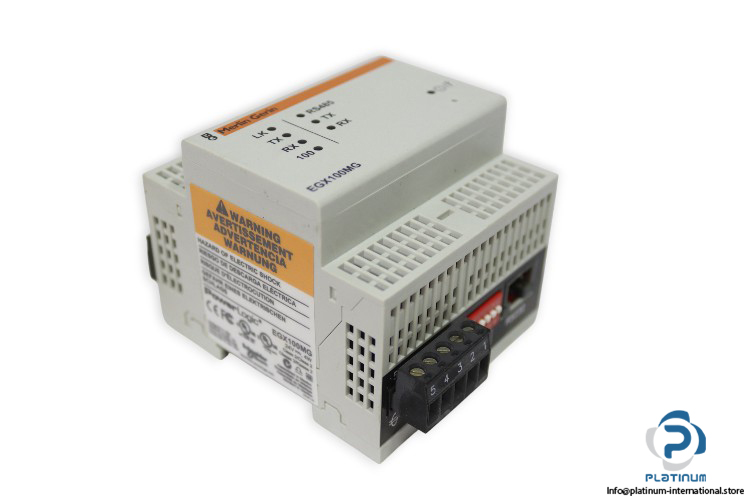

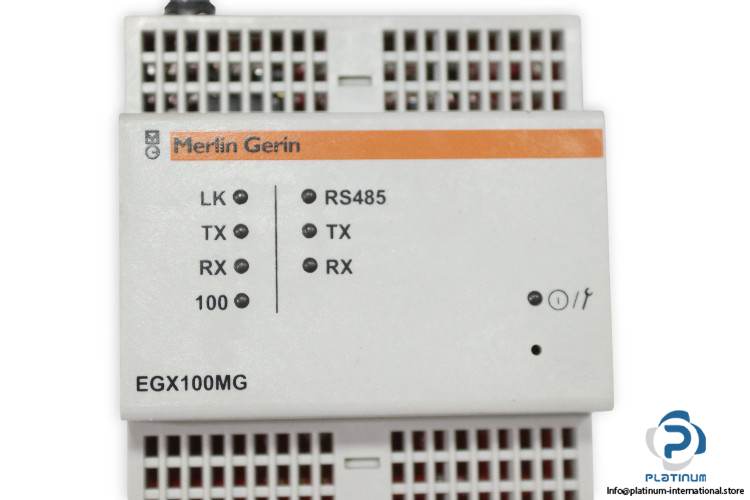

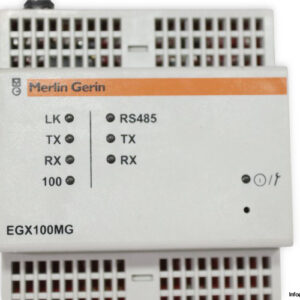

Merlin Gerin EGX100MG Ethernet Gateway Module
The Merlin Gerin EGX100MG Ethernet Gateway Module is a high-performance communication interface designed to integrate serial and Ethernet networks for industrial and power monitoring systems. It provides seamless data exchange between Modbus, PowerLogic, and TCP/IP devices, ensuring efficient and reliable connectivity.
Manufacturer: Merlin Gerin
Type: Ethernet Gateway Module

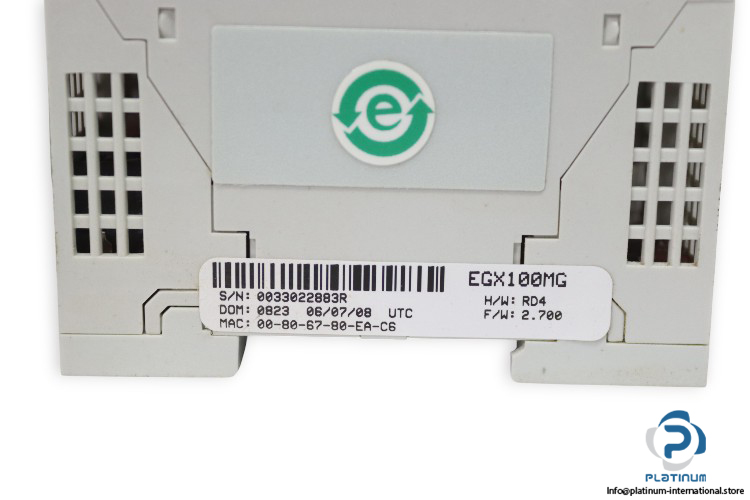

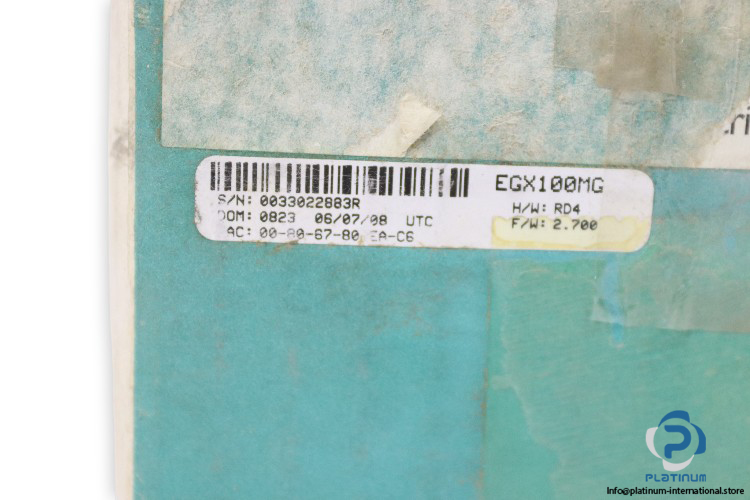

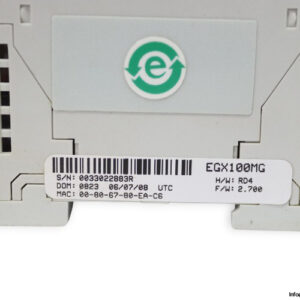

Model: EGX100MG
Part No.: ECU-1051TL-R10AAE
Range: PowerLogic EGX100
Short Name: EGX100
Technical Information

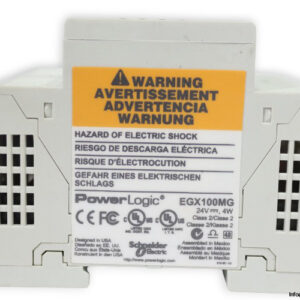

- Supply Voltage: 24 V DC
- Power: 4 W
- Device Connection:
- Ethernet Port FTP 10/100 Mbit/s
- Ethernet Port HTTP 10/100 Mbit/s
- Ethernet Port Modbus TCP/IP 10/100 Mbit/s
- Ethernet Port SNMP 10/100 Mbit/s
- Serial Port Modbus RTU and ASCII RS232 38400/57600 Bauds
- Serial Port Modbus RTU and ASCII RS485 38400/57600 Bauds
- Serial Port PowerLogic (SY/MAX) RS232 38400/57600 Bauds
- Serial Port PowerLogic (SY/MAX) RS485 38400/57600 Bauds
- Connection: 1 x 3-Pin Terminal Block
- Temperature: -25 / 70 °C
- Protection Class: IP30
- Dimensions: 72 x 91 x 68 mm
- Standards: AS/NZS25 60950 / IEC 60950 / EN 60950 / CSA C22.2 No. 60950 / UL 60950 / UL 508
