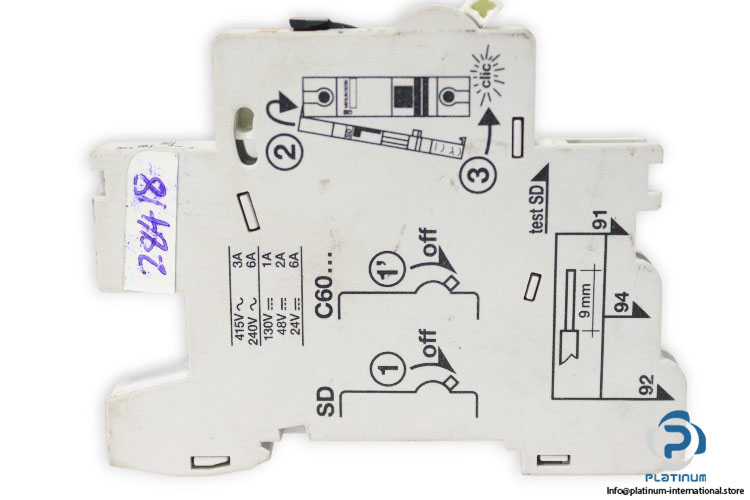

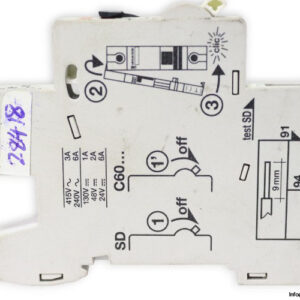

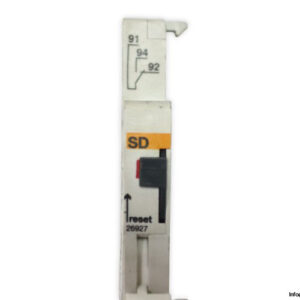

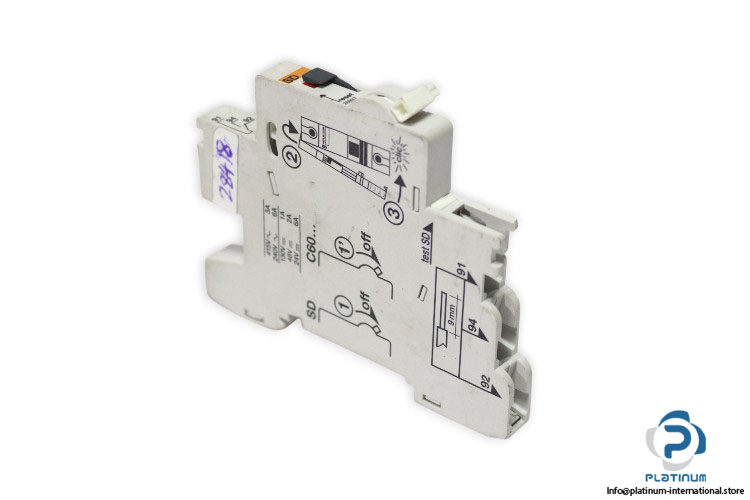

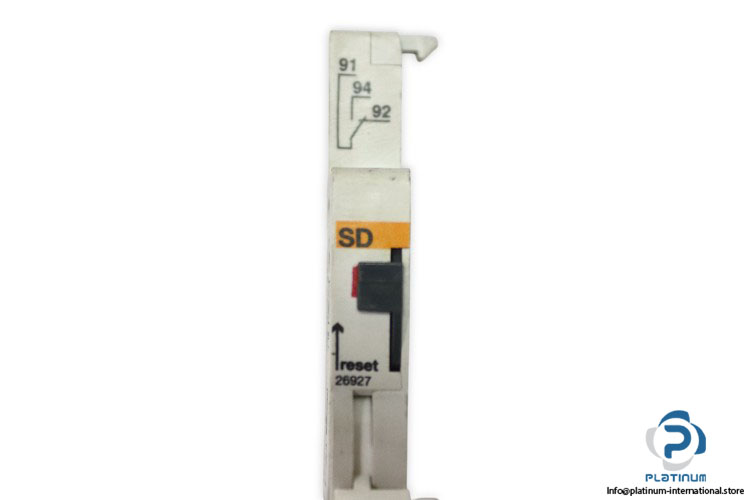

MERLIN GERIN SCHNEIDER AUXILIARY CONTACT BLOCK SD

The Merlin Gerin Schneider SD Auxiliary Contact Block is a reliable component from the Multi9 range, designed for enhanced control and monitoring in electrical systems. Built with robust protection and compact dimensions, it ensures safe and efficient operation in industrial environments.

Manufacturer: Merlin Gerin Schneider
Type: Auxiliary Contact Block
Model: SD
Part No.: 26927
Range: Multi9

Technical Information

• Operational Ratings:
  • 240 V AC, 3 A
  • 415 V AC, 6 A
  • 130 V DC, 1 A
  • 48 V DC, 2 A
  • 24 V DC, 6 A
• Frequency: 50 / 60 Hz
• Contact: 1-Pole, 1 Normally Closed (NC)
• Protection Class: IP20
• Ambient Temperature: -25 / 50 °C
• Dimensions: 84 x 9 x 73 mm
