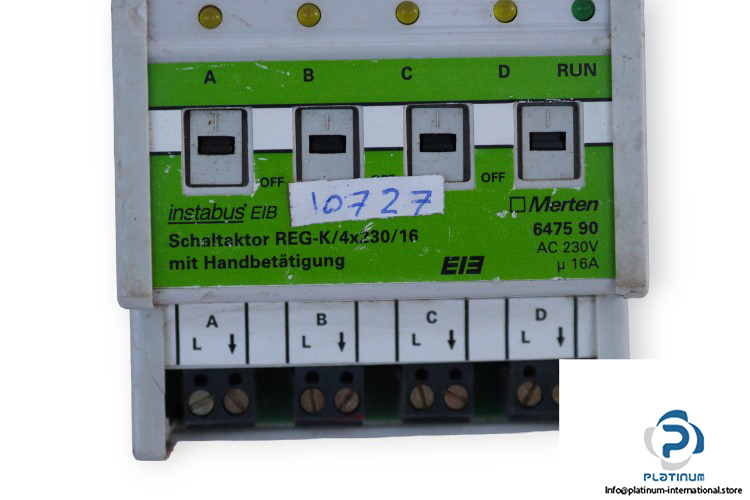

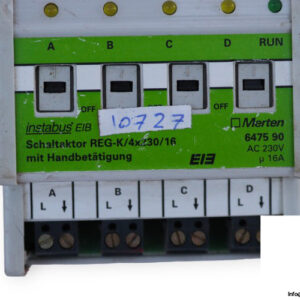

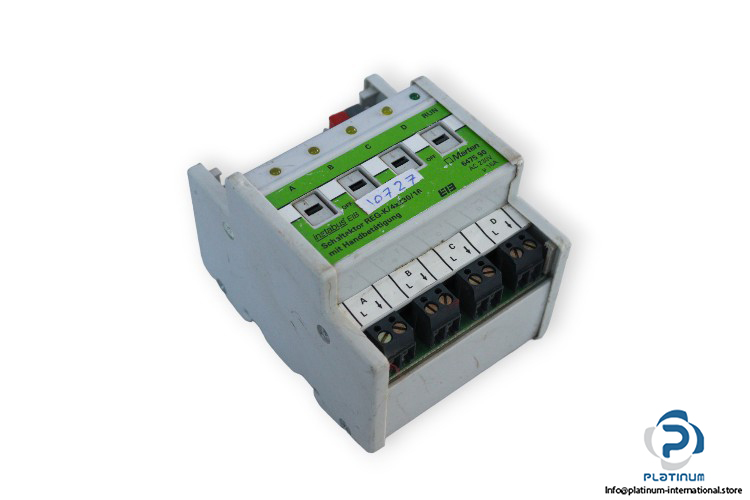

Manufacture: Merten
Type: Switch Actuator
Model: REG-K/4×230/16
Art No.: 6475 90

Power supply from the bus: 24 V DC/<10 mA
Insulation voltage: 4 Kv
Nominal voltage: 230 V AC, 50 … 60 Hz (L1, L2 or L3)
Nominal current: 16 A, cos Ï• = 1, 10 A, cos Ï• = 0.6
Switch contact: 4 x make contacts, floating
Nominal capacity:
Incandescent lamps: 230 V AC, max. 3000 W
Halogen lamps: 230 V AC, max. 2000 W
Fluorescent lamps: 230 V AC, max. 1500 VA
Capacitive load: 230 V AC, max. 140 µF
Connections
Bus: via two 1 mm pins for bus connecting terminal
Outer conductor: four 2-fold screw terminals for max. 2.5 mm2
Ambient temperature Operation: -5 … +45 °C
Device width: 4 modules = 72 mm
