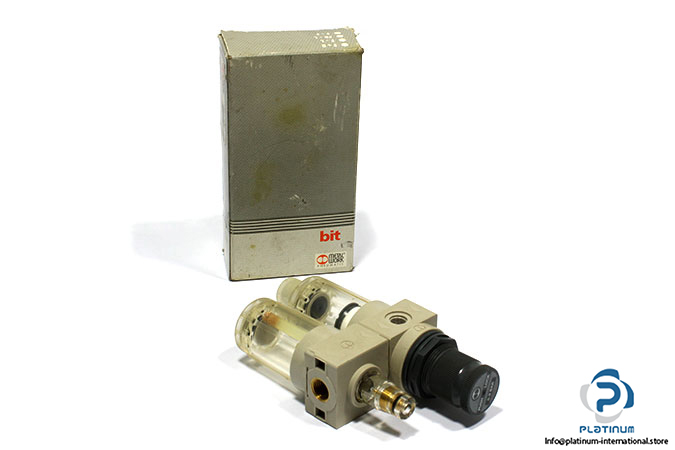

METAL WORK FR+L BIT 1/4 20 08 LUBRICATOR

This precision-engineered lubricator by METAL WORK is built to deliver optimal oil mist lubrication in compressed air systems. Ideal for enhancing tool performance and protecting components from wear.

Manufacturer: METAL WORK
Type: Lubricator
Model: FR+L BIT 1/4 20 08

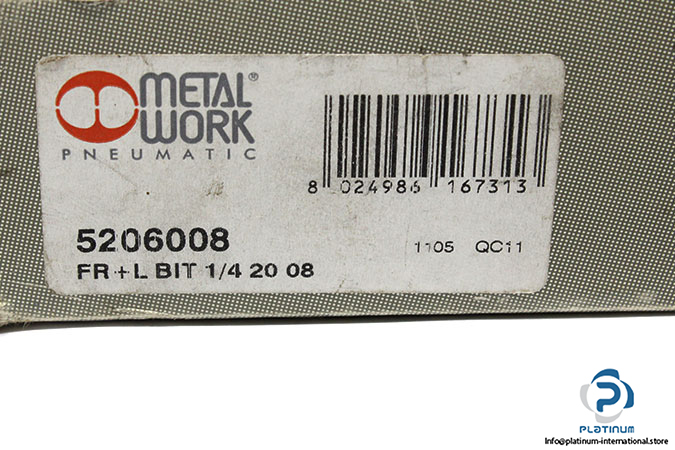

Part No.: 5206008

Technical Specifications

• Threaded Port: 1/8“1/4
• Type of Lubrication: Oil Mist

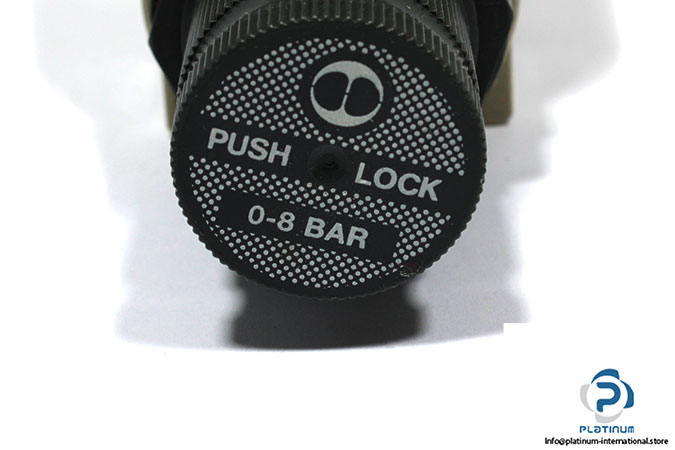

• Inlet Pressure: 0 to 8 bar
• Flow Rate at 6 bar ΔP 0.5 bar: 140 NI/min
• Flow Rate at 6 bar ΔP 1 bar: 260 NI/min
• Fluid: Compressed Air
• Max Temperature at 10 bar: 50°C
• Gauge Port: G1/8 inch
• Wall Fixing Screws: M4
