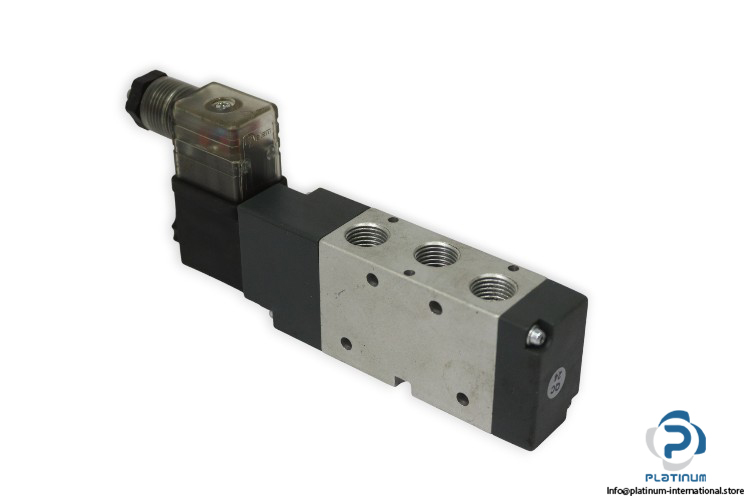

METAL WORK 7091021100 Single Solenoid Valve
The METAL WORK 7091021100 Single Solenoid Valve is a high-performance pneumatic valve engineered for precise control and long-lasting reliability. Designed for demanding industrial automation systems, it features a 5 by 2 way directional control function and an ATEX certified explosion proof construction.
Manufacturer: METAL WORK
Type: Single Solenoid Valve

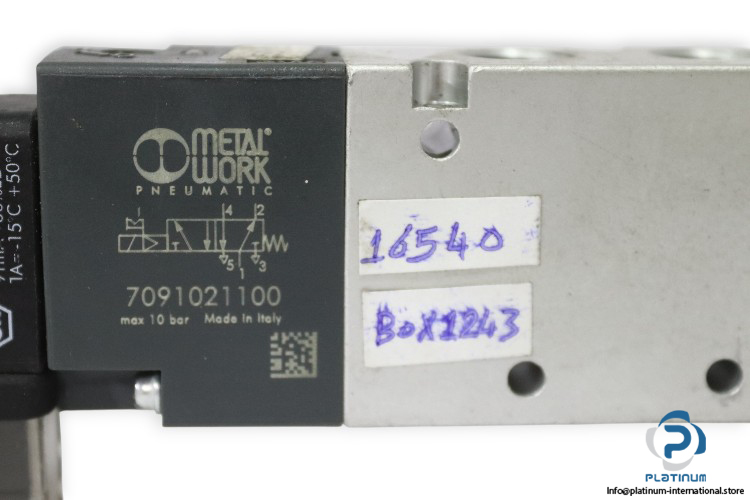

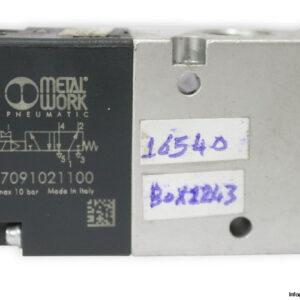

Model: 7091021100
Series: 70
Technical Information
- Type of Actuation: Electrical
- Fluid: Air
- Function: 5 by 2 way directional control valve, solenoid actuated
- Operating Pressure: Maximum 10 bar
- Connection Ports: G 1 by 4

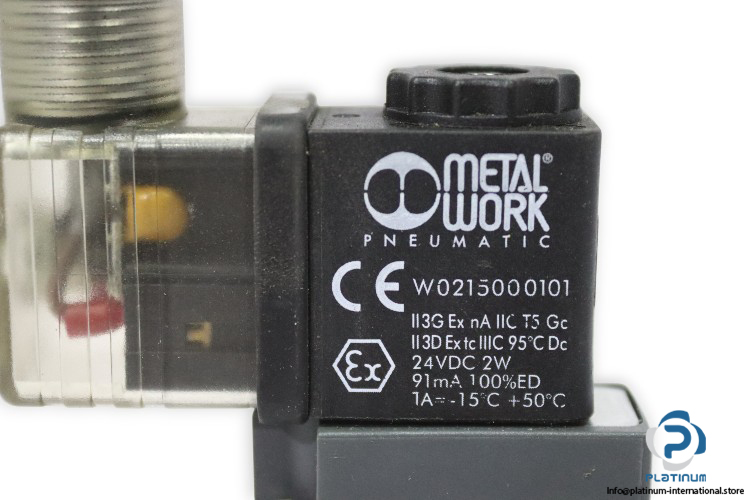

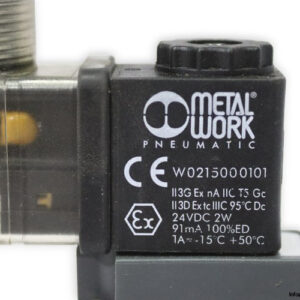

- Coil Model: W0215000101
- Coil Voltage: 24 V DC
- Power Consumption: 2 W
- Current: 91 mA
- Duty Cycle: 100 percent ED (continuous operation)
- Protection Class: ATEX Certified
- Explosion Proof Classification: II3G Ex nA IIC T5 Gc, II3D Ex tc IIIC 95 degree Celsius Dc
- Ambient Temperature Range: minus 15 to plus 50 degree Celsius
