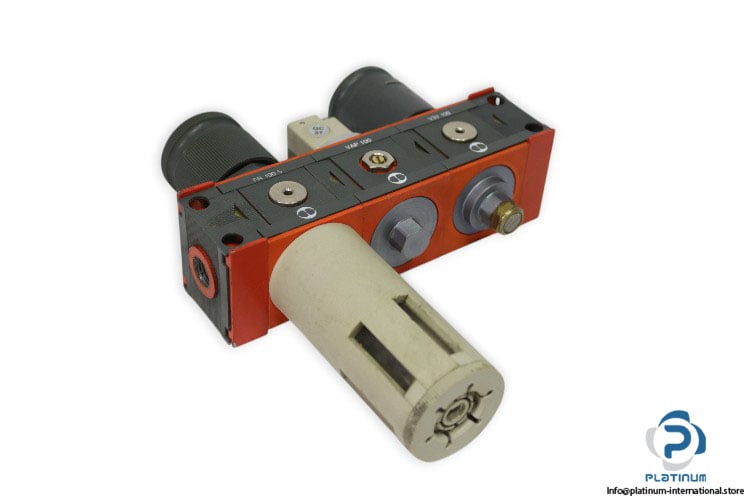

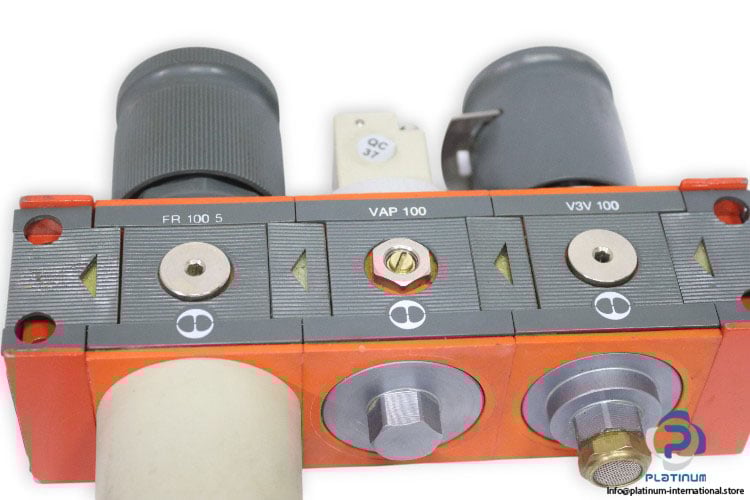

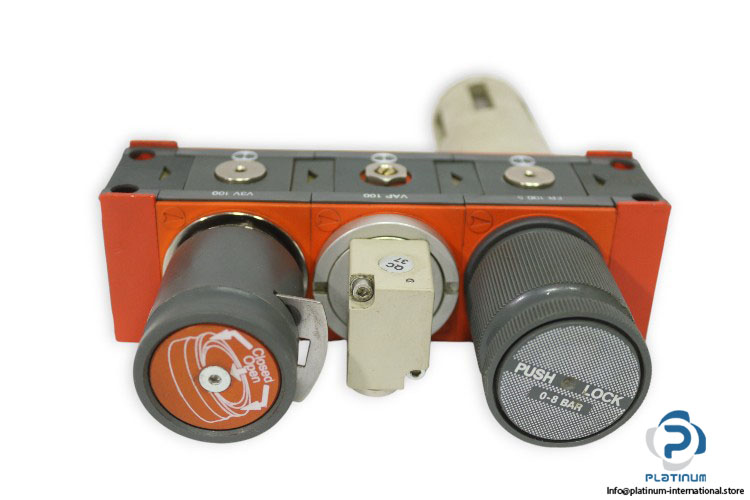

Metal Work FR1005 Filter Regulator with Relief and Shut-Off Valve
The Metal Work FR1005 Filter Regulator is designed to ensure clean, regulated compressed air supply in pneumatic systems. Equipped with a pressure relief valve and a 3-way shut-off valve, this unit provides reliable operation, enhanced safety, and easy maintenance in industrial applications.
- Manufacturer: Metal Work
- Type: Filter Regulator with Relief and Shut-Off Valve
- Filter Regulator Model: FR1005
Technical Information
- Fluid: Air
- Max. Pressure: 15 bar
- Flow Rate: 1100 Nl/min
- Filtration Degree: 5 µm
- Operating Temperature: Max. 50 °C
- Connection: G1/4

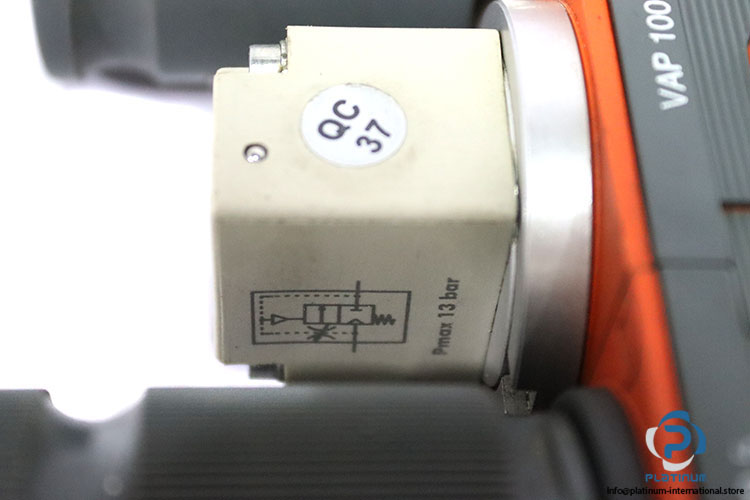

Attachment: Metal Work VAP 100 Pneumatic Pressure Relief Valve
- Media: Air
- Operating Pressure: Max. 13 bar
- Control: Spring-Operated, Adjustable Set Pressure
- Application: Protects compressed air systems by automatically discharging air when pressure exceeds the preset limit
Attachment: Metal Work V3V 100 3-Way Shut-Off Valve
- Flow Rate: 1,650 l/min
- Max Input Pressure: 15 bar
- Operating Temperature: -10 to 50 °C
