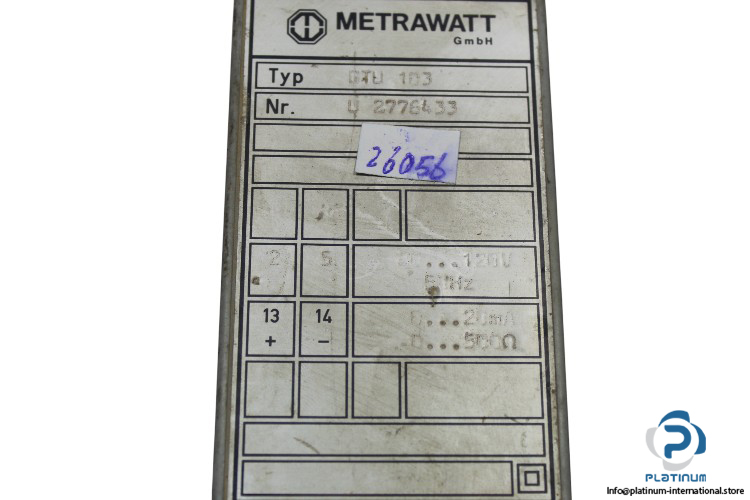

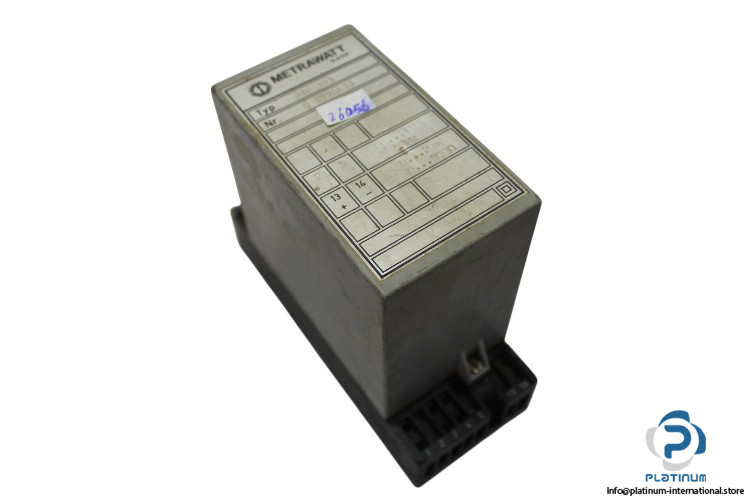

Metrawatt GTU103 “ Measuring Transducer
The Metrawatt GTU103 measuring transducer is designed for precise monitoring and conversion of electrical parameters in industrial applications. With a wide input voltage range and robust output signal, it integrates seamlessly into various systems for power monitoring, energy management, and automation control.
- Manufacturer: Metrawatt
- Type: Measuring Transducer
- Model: GTU103
- Part No.: U 2776433
Applications:
- Power Monitoring: Monitoring current and voltage levels in electrical circuits.
- Energy Management: Integrating with energy management systems for consumption analysis.
- Automation Systems: Providing feedback to programmable logic controllers (PLCs) for process control.
- Safety Systems: Detecting abnormal electrical conditions to trigger alarms or shutdowns.
Technical Information:
- Input Voltage: 0 to 120 V AC, 50 Hz
- Output Signal: 0 to 20 mA
- Resistance: 0 to 500 ohms
- Mounting: DIN rail
- Protection Class: IP20
- Operating Temperature: -10°C to +60°C
