Metso NOVES22M0 Sampler Valve

The Metso NOVES22M0 Sampler Valve is a high-quality manual sampling device designed for reliable extraction of liquids and slurries in industrial processes. Built with durable stainless steel construction and a hygienic clamp connection, it ensures safe, accurate, and repeatable sampling in demanding environments such as pulp & paper, chemical, water treatment, and food-grade applications.

• Manufacturer: Metso
• Type: Sampler Valve
• Model: NOVES22M0

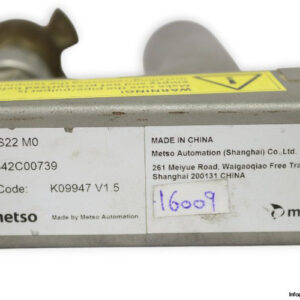

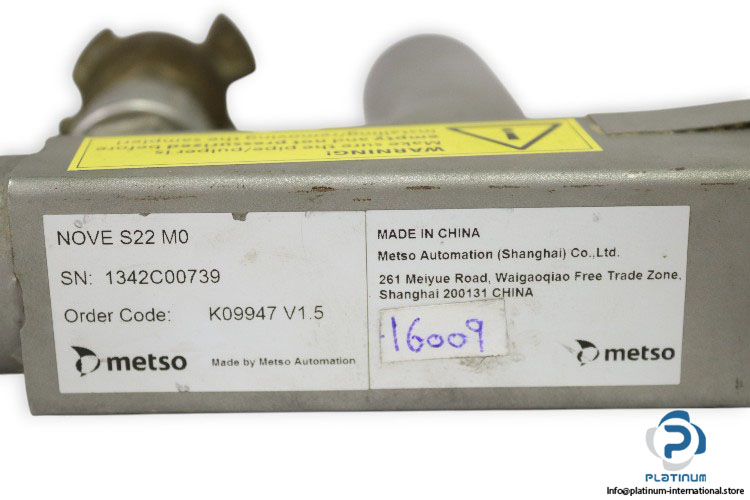

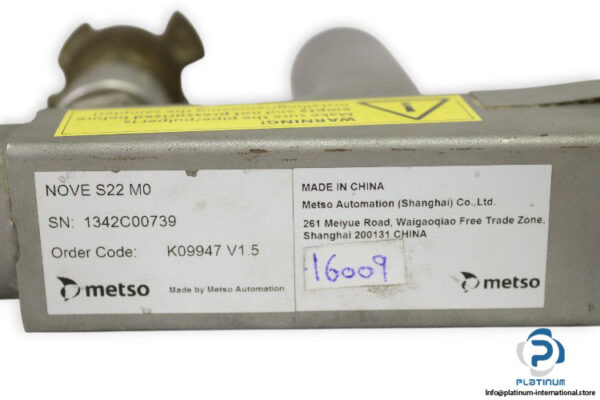

• Serial No.: 1342C00739
• Order Code: K09947 V1.5

Technical Information

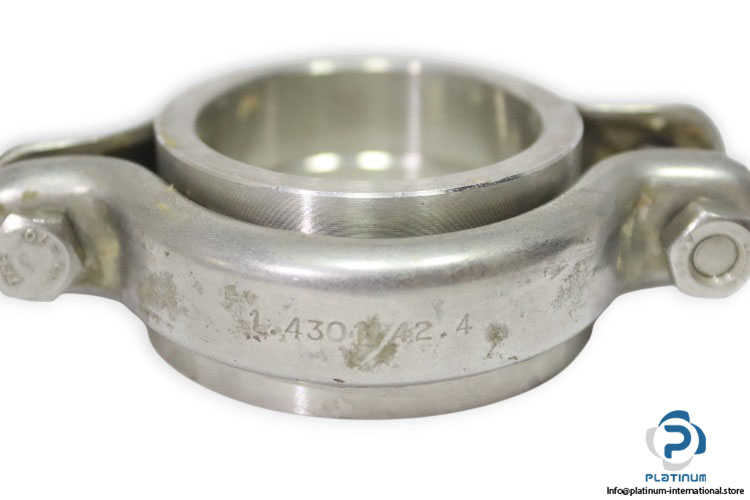

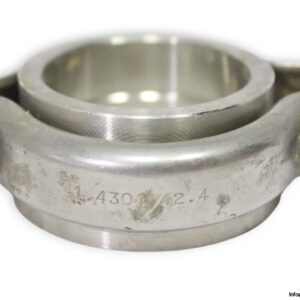

• Marking on Clamp: 1.4301 / 42.4 (AISI 304 stainless steel, tube OD 42.4 mm)
• Function: Manual sampling device for liquids or slurries

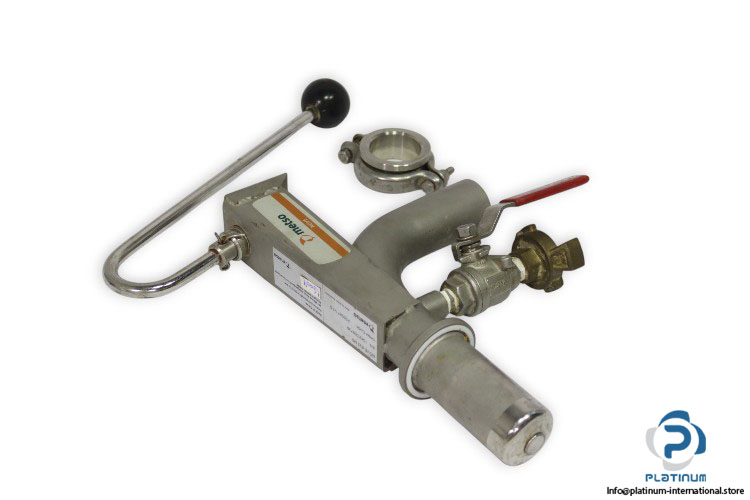

• Design: Stainless steel construction, lever-operated actuator, integrated ball valve, Tri-Clamp / hygienic connection
• Medium Compatibility: Process fluids (chemicals, water, slurries, pulp, food-grade)
• Connection: 34 mm
• Pressure Range: Up to 10 bar
• Temperature Range: -20 °C to +150 °C
• Applications: Pulp & paper, chemical & petrochemical, water treatment, food & beverage (if sanitary certified)
