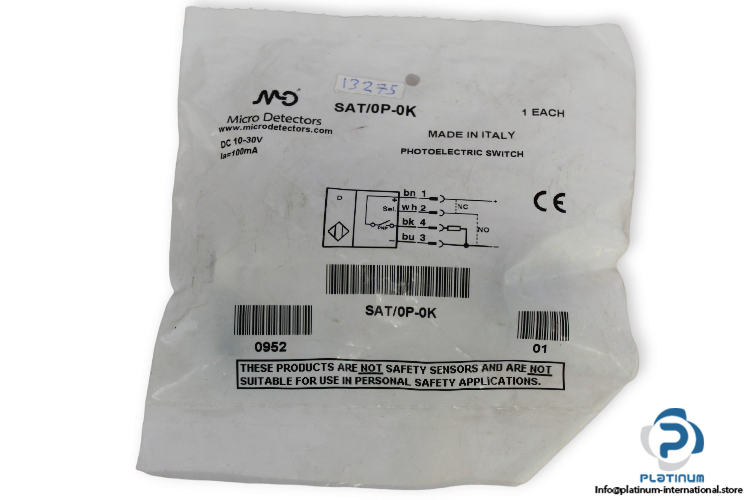

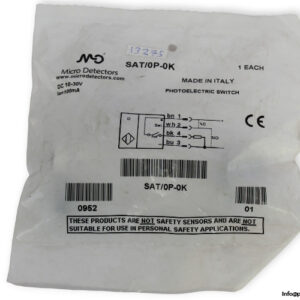

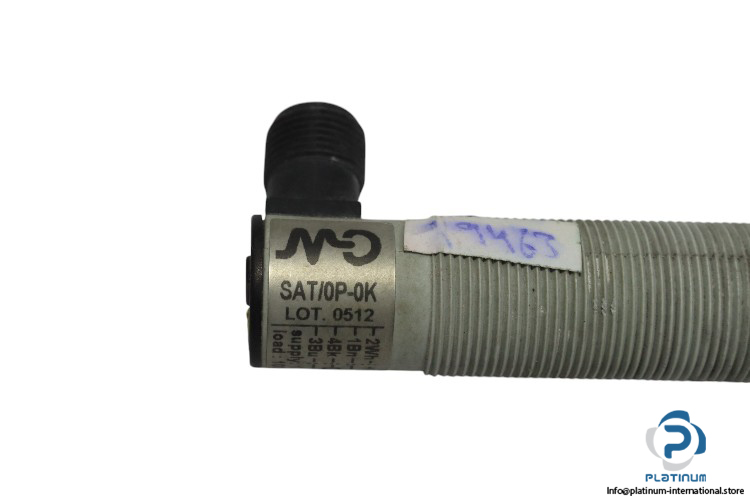

MICRO DETECTORS SAT/0P-0K Photoelectric Sensor
The MICRO DETECTORS SAT/0P-0K is a compact and durable photoelectric sensor designed for precise object detection in industrial automation systems. With a robust IP67-rated housing, axial optics, and versatile output functions, it ensures high reliability and easy integration in harsh environments.
Manufacturer: MICRO DETECTORS
Type: Photoelectric Sensor
Model: SAT/0P-0K
Technical Data:
- Optic Position: Axial
- Nominal Sensing Distance: 12 mm
- Emission: Red (660 nm)
- Operating Voltage: 10“30 V DC
- No-Load Supply Current: 30 mA
- Load Current: 100 mA
- Leakage Current: 10 µA
- LED Indicators: Yellow (output energized), Green (supply), Red (activated output)
- Output Type: PNP
- Output Function: Normally Open, Normally Closed
- Switching Frequency: Max. 1 kHz
- Power On Delay: 200 ms
- Power Supply Protections: Polarity reversal, transient
- Tightening Torque: 1 Nm
- Optic Material: Glass
- Protection Class: IP67
- Operating Temperature: -25 / 70°C
- Connections: M12 right angle plug cable exit
- Housing Material: PBT
- Dimensions: 21.4 mm x 89.8 mm
