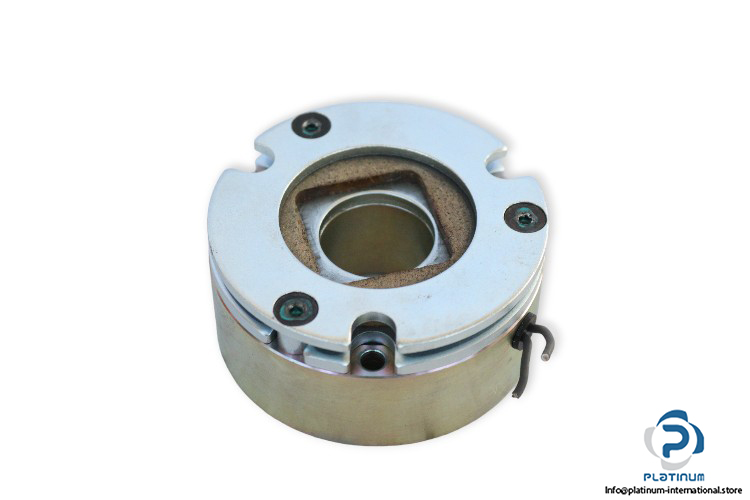

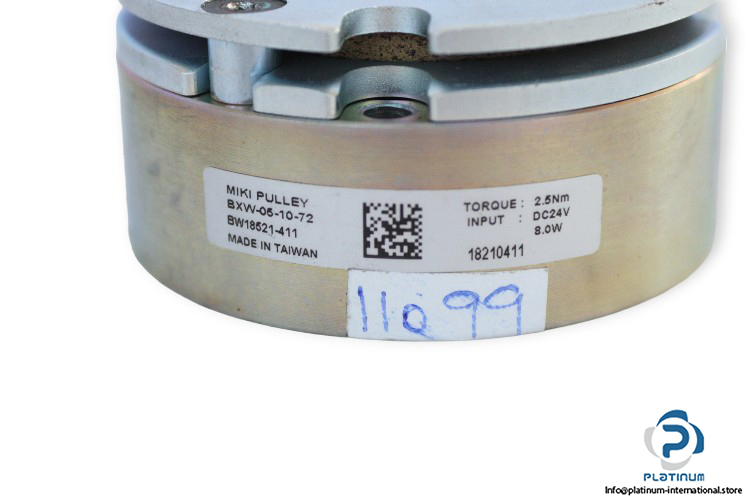

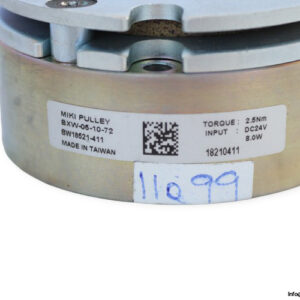

Manufacture: Miki pulley
Type: Spring Actuated Brake
Model: BXW-05-10-72
Part No.: BW18521-411

Size: 05
Coil Voltage: 24 V DC
Power: 8 W
Torque: 2.5 Nm
Resistance: 72 ohms
Max. Rotation speed: 6000 rpm
Allowable Braking energy rate Eba„“: 200 J
Total Braking energy ET: 40000 J
Armature pull-in time ta: 0.060 s
Armature release time tar: 0.020 s
Outside Diameter (A): 64.00 mm
Bolt Circle Diameter (B): 56.00 mm
