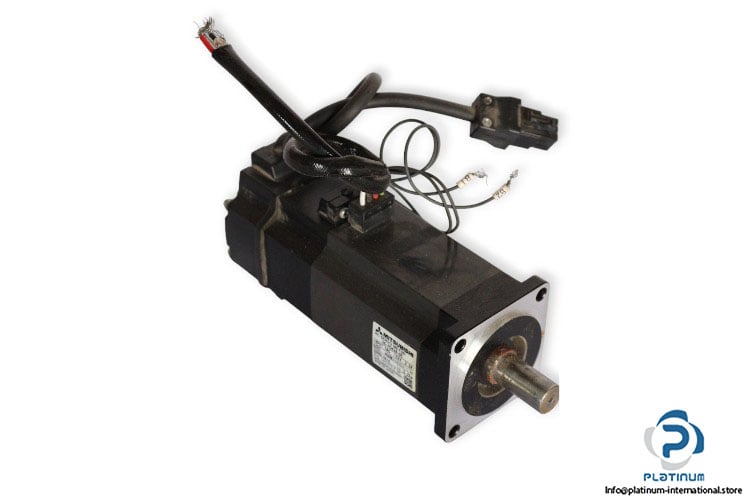

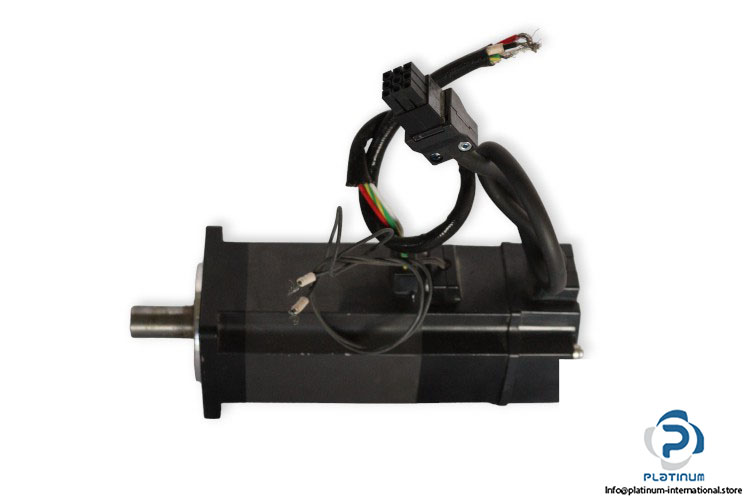

MITSUBISHI HC-PQ43B-UE AC SERVO MOTOR

The Mitsubishi HC-PQ43B-UE is a high-precision AC servo motor engineered for continuous-duty industrial automation systems. With compact size and reliable torque performance, this motor ensures accurate motion control in dynamic applications.

Manufacturer: MITSUBISHI
Type: AC Servo Motor
Model: HC-PQ43B-UE

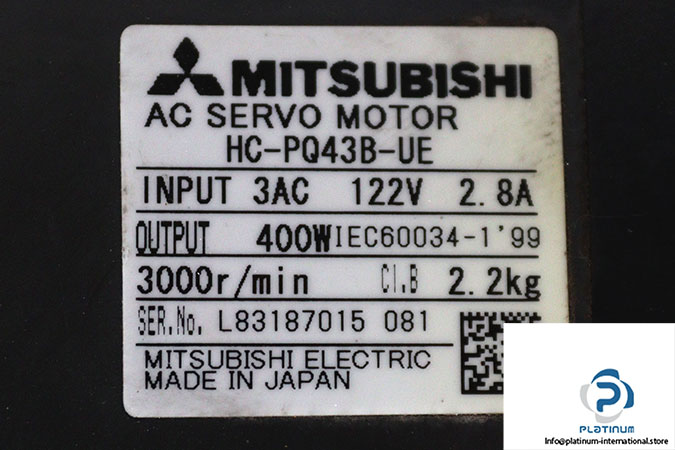

Serial Number: L83187015 081

Technical Information

• Rated Power Output: 400 W
• Rated Speed: 3000 RPM
• Maximum Speed: 4500 RPM
• Rated Current: 2.8 A
• Maximum Current: 6.44 A
• Power Supply Capacity: 0.9 KV/A
• Moment of Inertia: 0.145 kg.cm²
• Rated Torque: 1.27 Nm / 13 kgf.cm
• Maximum Torque: 2.92 Nm / 29.2 kgf.cm
• Duty: Continuous
• Speed Position Detector: Incremental Encoder (4000 pulses/rev)
• Protection Class: IP44
• Insulation Class: B
