MITSUBISHI MR-C40A-UE SERVO MOTOR AMPLIFIER
The Mitsubishi MR-C40A-UE is a high-performance servo motor amplifier from the MR-C series, built for precision control of HC-PQ43 servo motors. It is engineered to operate efficiently in industrial automation systems, delivering consistent 400 W output power with multiple connectivity options and standard compliance.
Manufacturer: MITSUBISHI
Type: Servo Motor Amplifier
Series: MR-C
Model: MR-C40A-UE

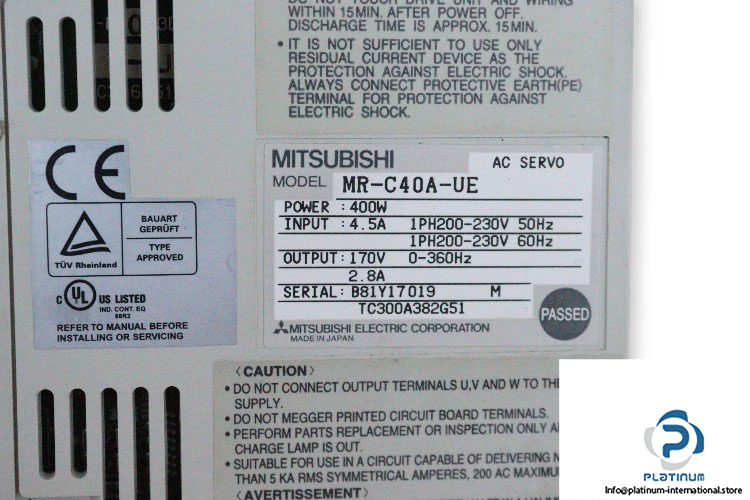

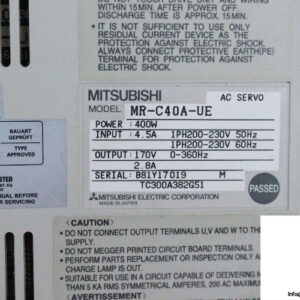

Ref No.: b81y17019 H / TC300A382G51
Technical Information
- Applicable Servo Motor: HC-PQ43
- Operating Voltage (Single Phase): 200 / 230 V AC, 50 / 60 Hz
- Rated Output Power: 400 W
- Max. Input Current: 4.5 A
- Output Voltage: 170 V AC
- Connections:
- I/O signal connector
- Encoder connector
- RS-232C option unit connector
- Main circuit terminal block
- Compliance With Standard: EN Standard, UL/C UL Standard
- Operating Temperature: -25 / 70°C
