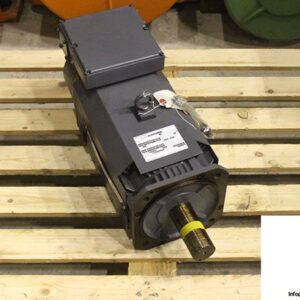

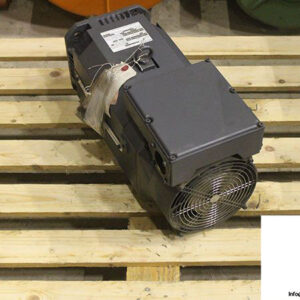

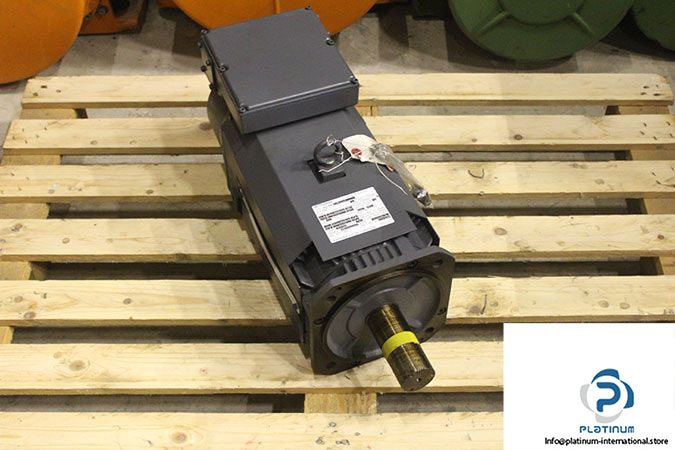

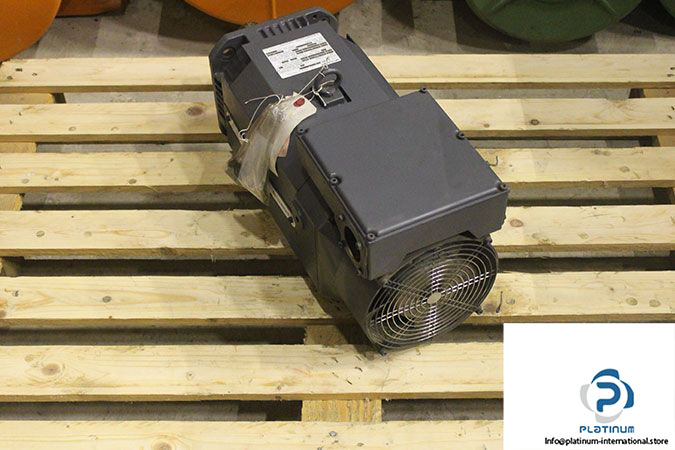

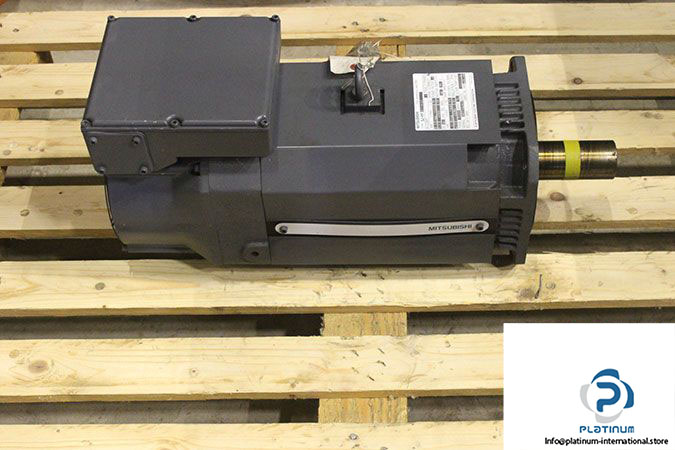

Mitsubishi Electric SJ-PF11-01Z AC Spindle Motor with TAMAGAWA MBE1024-3-TA Encoder

The Mitsubishi Electric SJ-PF11-01Z AC Spindle Motor is a high-performance motor designed for precision applications. With a variable rated power and speed, it provides flexible operation across different duty cycles. Paired with the **TAMAGAWA MBE1024-3-TA Encoder**, it ensures accurate feedback for optimal control in industrial systems.

Manufacturer: Mitsubishi Electric

Type: AC Spindle Motor

Model: SJ-PF11-01Z

Serial No.: B93100007

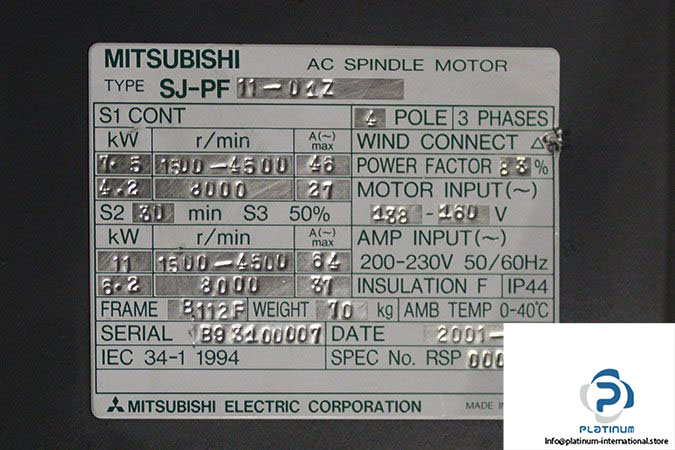

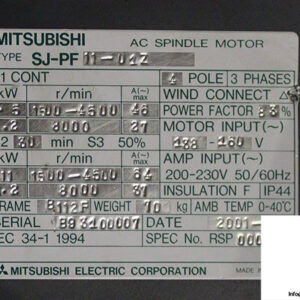

Technical Data:

• Duty: S1 Cont., S2 (30 min), S3 (50%)
• Rated Power: 7.5/4.2 W (S1), 11/6.2 W (S2)
• Rated Speed: 1500-4500/8000 r/min
• Max. Current: 46/27 A (S1), 64/37 A (S2)
• Rated Voltage Input: 138-160 V (S1), 200-230 V (S2)
• Frequency: 50/60 Hz
• Number of Poles: 4
• Shaft Diameter: 48 mm
• Ambient Temperature: 0 / 40°C
• Wind Connect: Delta
• Standards: IEC 34-1
• Power Factor: 83.0%
• Protection Class: IP44
• Insulation Class: F

Attached Encoder:

• Manufacturer: TAMAGAWA
• Type: Encoder
• Model: MBE1024-3-TA
• Part No.: TS5262N 22
