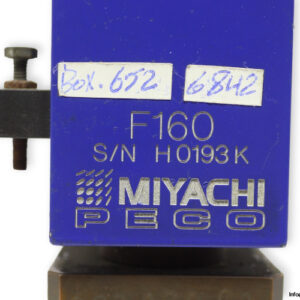

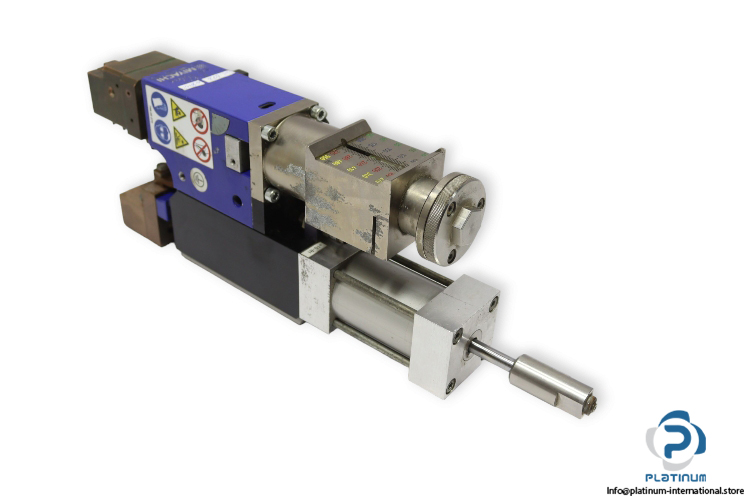

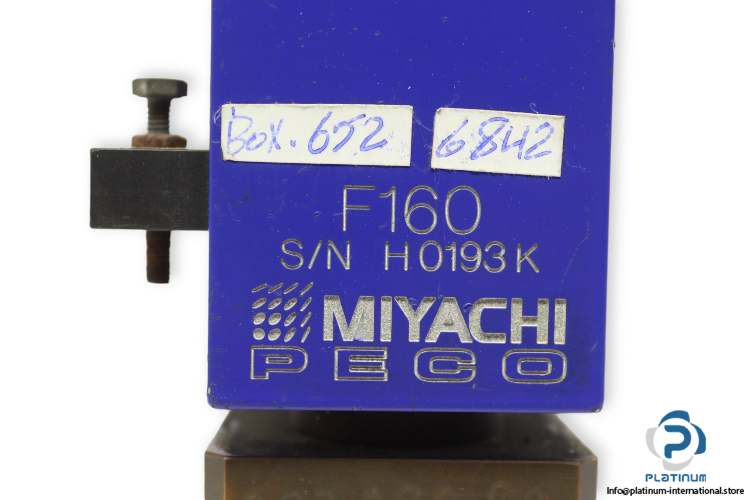

Manufacturer: MIYACHI PECO
Type: Spot Welding Heads for Automation
Model: F160

Electrode stroke: 25 mm
Closing stroke: pneumatic
Welding Pressure: via pneumatic pre-tensioned spring
Max. Current Rating: 5 kA (2 kA with light current band)

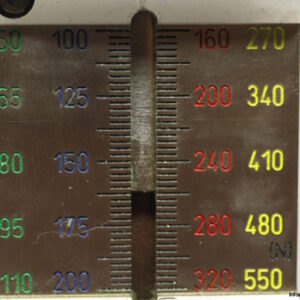

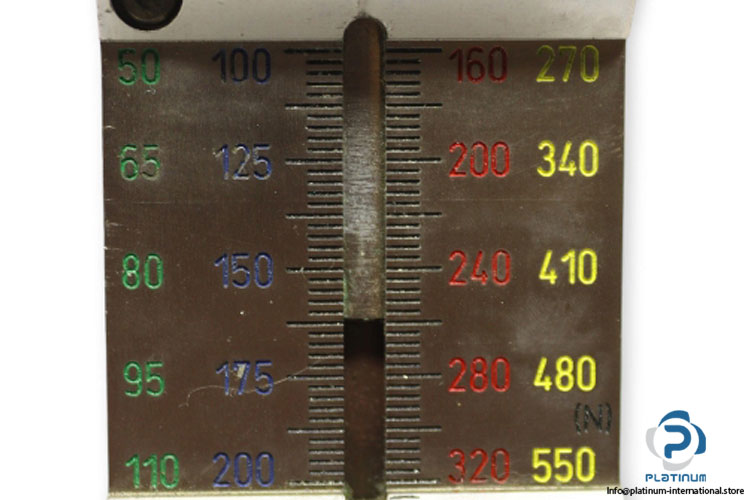

Weld force max.:
-240: 50 to 240 N
-550: 150 to 550 N
Air pressure supply: 6 bar
Electrode shape: cylindrical, d = 6 mm
Electrode holder: quick change holder without antitorsion protection for electrodes
Connection: G1/8
Environment temp.: 0 … 40°C
