Manufacturer: Mobrey
Type: Level and Alarm Controller

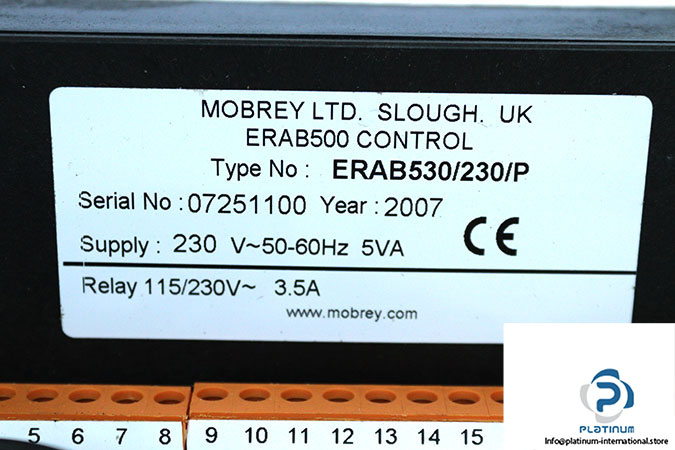

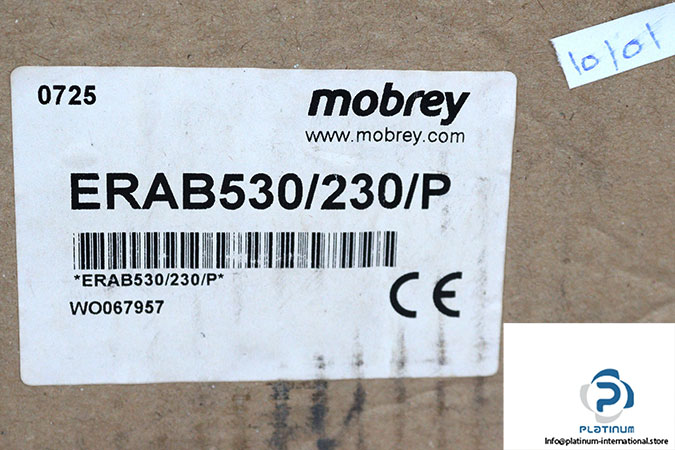

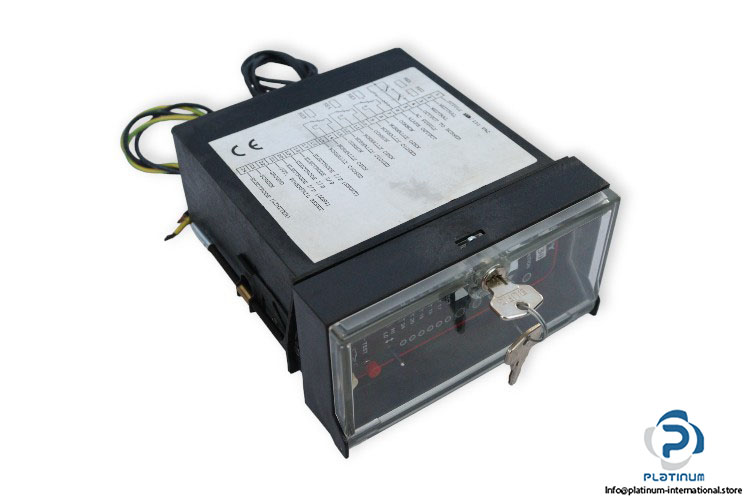

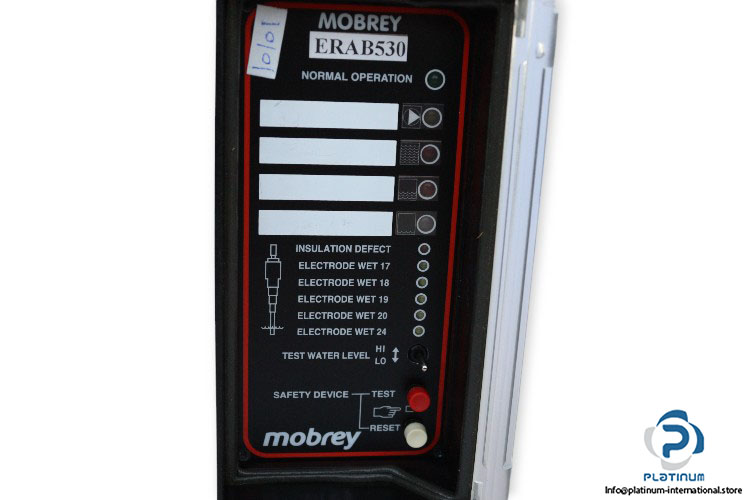

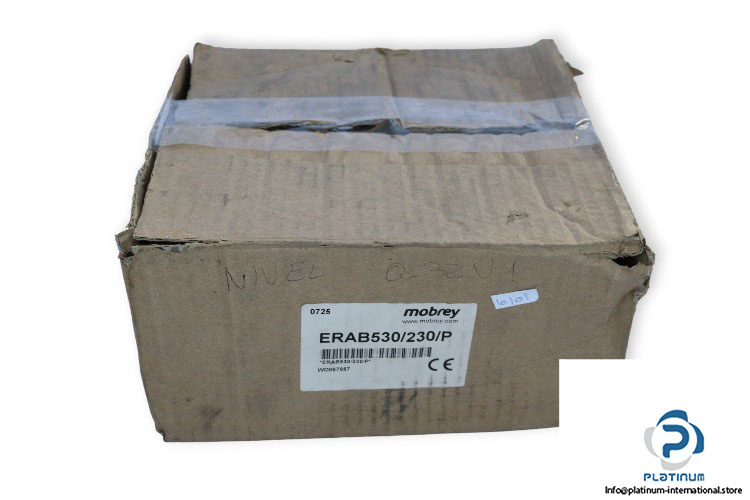

Model: ERAB530/230/P / ERAB 530 230 P/ ERAB-530-230-P
Supply Voltage: 230 V AC
Power Consumption: 5 VA
Frequency: 50 … 60 Hz

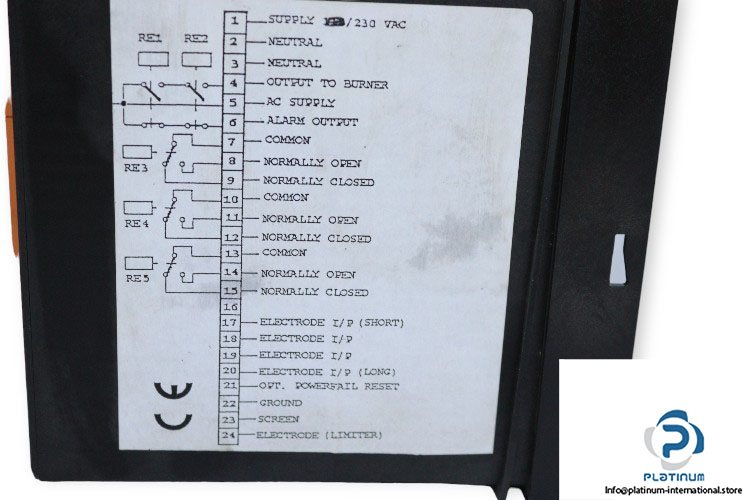

Contact Configuration: 3 Relay Changeover, 1 Relay Alarm, 1 Output to Burner
contact Voltage: 115 … 230 V AC
Contact Current: 3.5 A
Electrode Voltage: 0.1 … 10 V AC (Wet), 34 … 48 V AC Dry
Housing Material: Self-extinguishing Noryl
Mounting: Panel
Operating Temperature: 60 °C Max.
Degree of protection: IP40, IP54 Lockable Door Fitted
