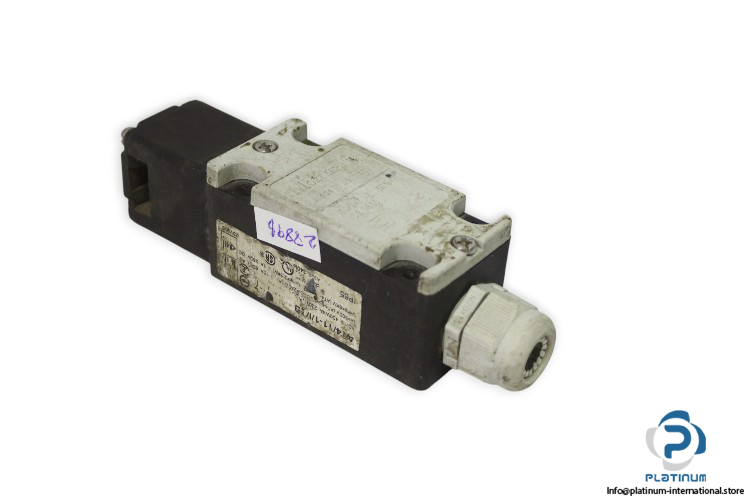

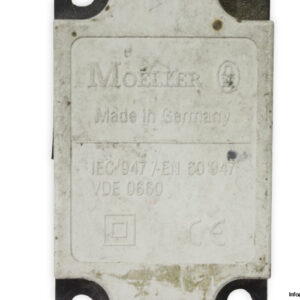

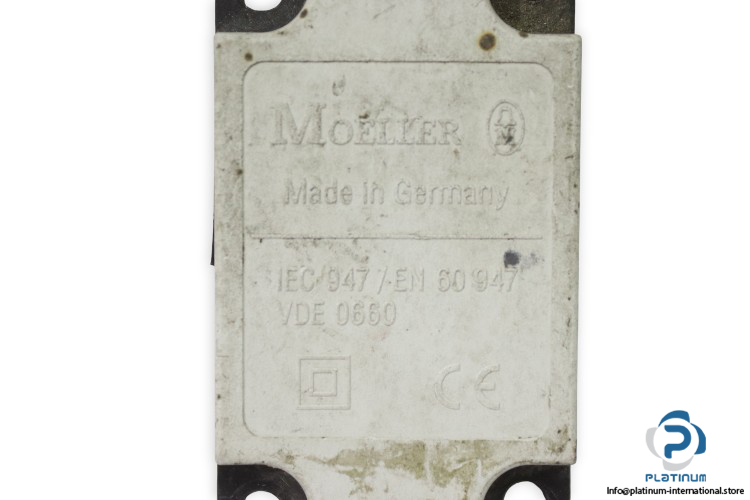

MOELLER AT4/11-1/I/IB Position Switch
The MOELLER AT4/11-1/I/IB is a durable position switch designed for precise and reliable position detection in industrial automation systems. Built for long service life, it delivers excellent mechanical strength, electrical reliability, and environmental resistance for various industrial applications.
Manufacturer: MOELLER
Type: Position Switch
Model: AT4/11-1/I/IB
Technical Information

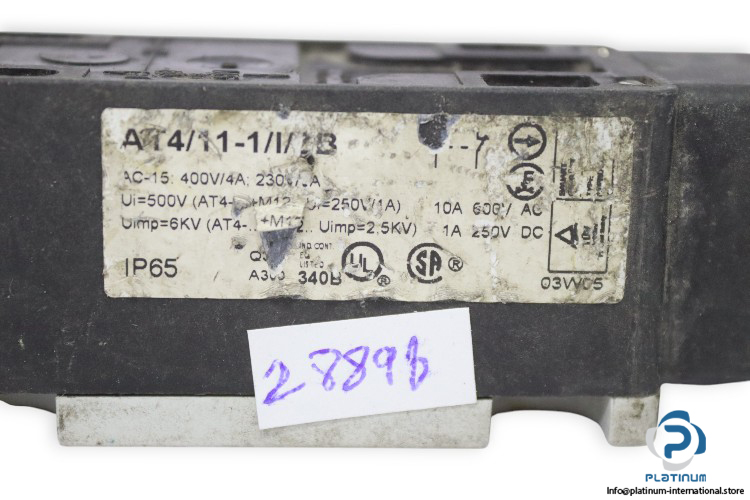

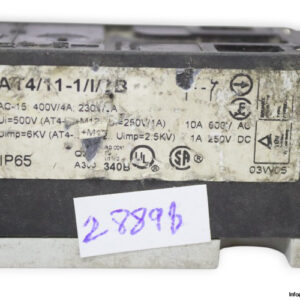

- Rated Operational Ratings: AC-15: 400 V, 4 A / 230 V, 6 A
- Rated Insulation Voltage: 500 V AC
- Rated Thermal Current: 10 A
- Rated Impulse Voltage (Uimp): 6 kV
- Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Contact Ratings: 600 V AC, 10 A / 250 V DC, 1 A
- Housing Material: Plastic
- Protection Class: IP65
- Ambient Operating Temperature: -25 / 70 °C
- Dimensions: 83 x 56 x 30 mm
