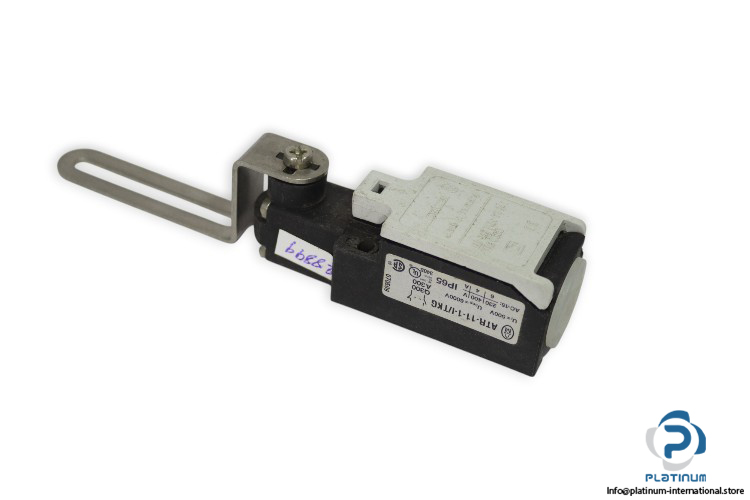

MOELLER ATR-11-1-L/TKG Safety Door Flap Switch
The MOELLER ATR111LTKG is a high-quality safety door flap switch designed to ensure secure monitoring and control of protective doors and enclosures in industrial environments. Engineered for reliability and precision, this switch provides dependable protection against unauthorized access and enhances machine safety systems.
Manufacturer: MOELLER
Type: Safety Door Flap Switch
Model: ATR-11-1-L/TKG
Technical Information

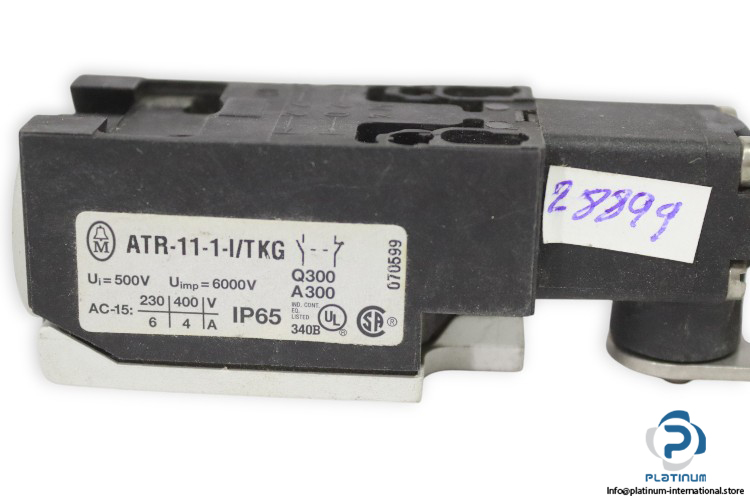

- Rated Operational Ratings: AC-15: 230 V, 6 A / 400 V, 4 A
- Rated Insulation Voltage: 500 V AC
- Rated Thermal Current: 10 A
- Rated Impulse Voltage (Uimp): 6 kV
- Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Actuator Type: Door Flap
- Protection Class: IP65
- Ambient Temperature: -25 / 70 °C
- Dimensions: 86 x 56 x 33.5 mm
