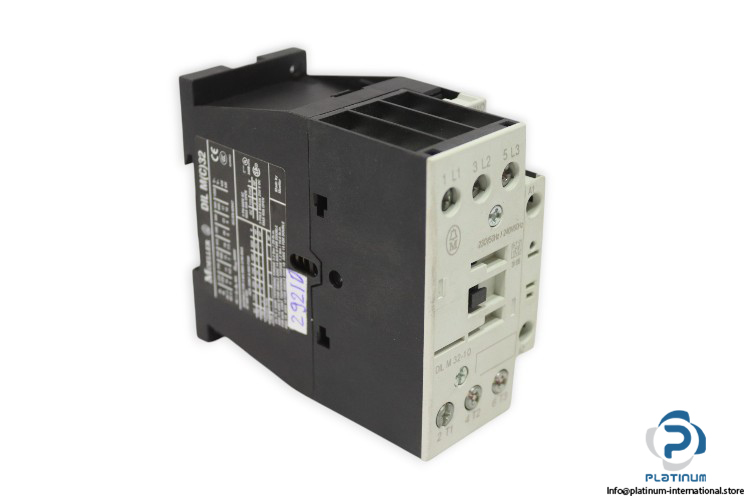

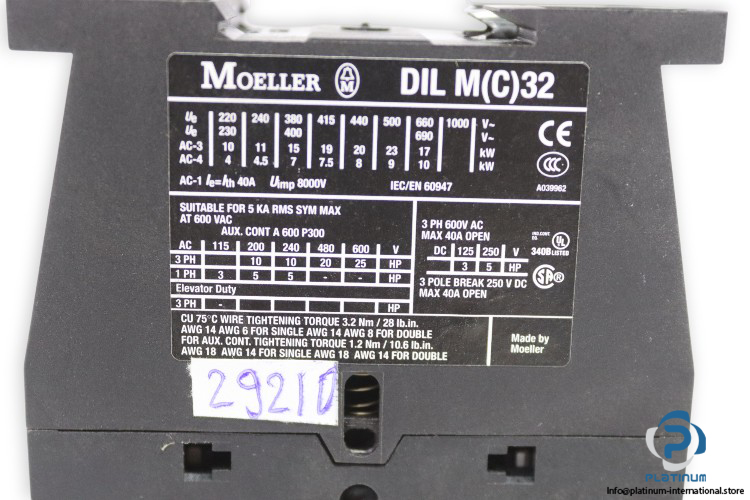

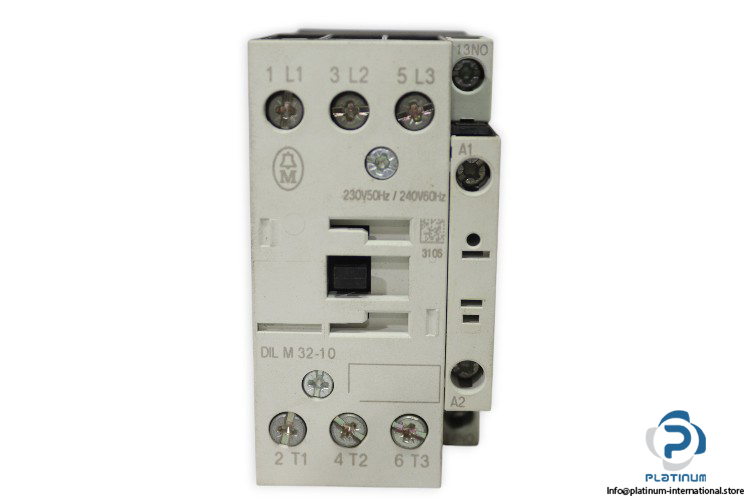

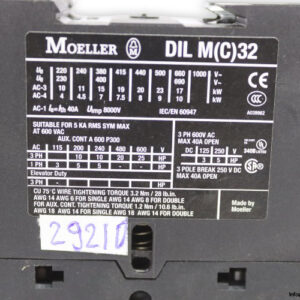

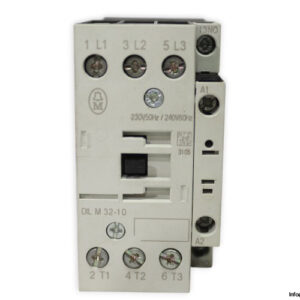

Moeller DILM32-10 Contactor (xStart Series)

The Moeller DILM32-10 is a robust contactor from the xStart series, engineered for reliable motor control and switching applications. With a 230/240 V coil, 40 A thermal current, and power ratings up to 17 kW, it delivers dependable performance for both AC-3 and AC-4 duty categories.

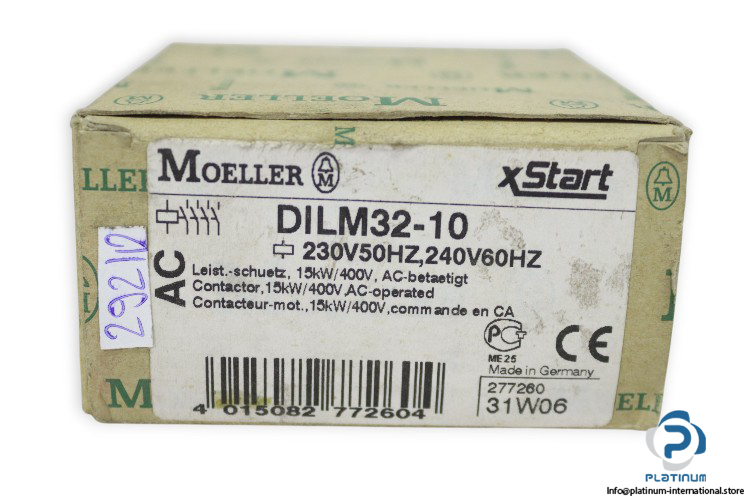

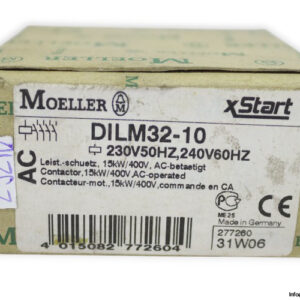

Manufacturer: Moeller
Type: Contactor
Model: DILM32-10 (DIL M(C)32)
Part No.: 277260
Code: 3106/31W06/ME 25
Serial No.: 4015082 772604
Series: xStart

Technical information

• No. of Poles: 3
• Coil Voltage: 230 V 50 Hz / 240 V 60 Hz
• Power Rating: 15 kW @ 400 V (AC-3 duty)
• Thermal Current (Ie): 40 A
• Utilization Category: AC-3 / AC-1
• Rated Insulation Voltage (Ui): 690 V
• Impulse Withstand Voltage (Uimp): 8 kV
• Breaking Capacity: Suitable for 5 kA RMS symmetric max at 600 V AC
• Auxiliary Contacts: 1 NO (10 designation)

Power Ratings

• AC-3: 10 kW @ 220/230 V, 15 kW @ 380/400 V, 17 kW @ 660/690 V
• AC-4: 4 kW @ 220/230 V, 7 kW @ 380/400 V, 10 kW @ 660/690 V
• Horse Power @ 200/240 V: 5 HP (3 PH / 1 PH)

Main Circuit Wiring

• Conductor Type: Copper conductors (Cu 75 °C)
• Tightening Torque: 3.2 Nm / 28 lb·in
• Wire Size (Single): AWG 14 / AWG 6
• Wire Size (Double): AWG 14 / AWG 8

Auxiliary Contact Wiring

• Tightening Torque: 1.2 Nm / 10.6 lb·in
• Wire Size (Single): AWG 18 / AWG 14
• Wire Size (Double): AWG 18 / AWG 14

Dimensions

• Size: 97 x 85 x 45 mm
