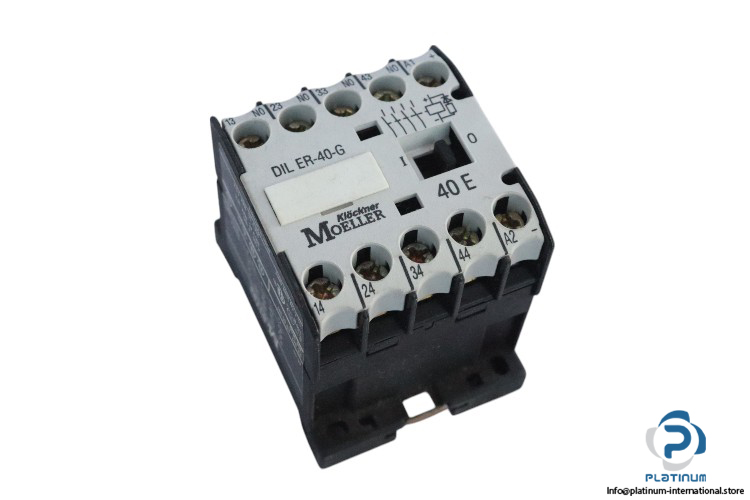

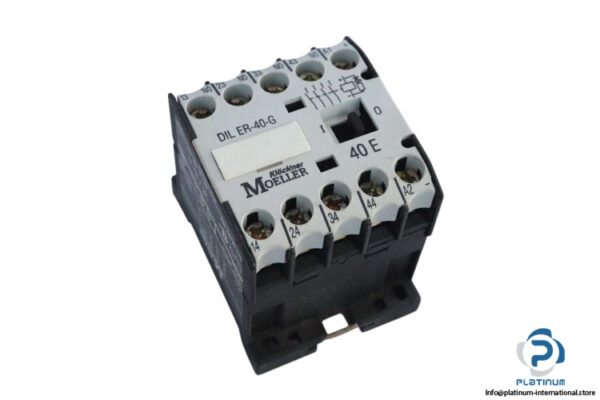

Klockner Moeller / Eaton Contactor Relay DIL ER-40-G
Klockner Moeller / Eaton Contactor Relay DIL ER-40-G is a high-quality contactor relay designed to provide reliable switching performance in industrial applications. It is ideal for use in control circuits requiring efficient operation. Below are the key technical specifications:
- Manufacturer: Klockner Moeller / Eaton
- Type: Contactor Relay
- Model: DIL ER-40-G
- Series: DILER

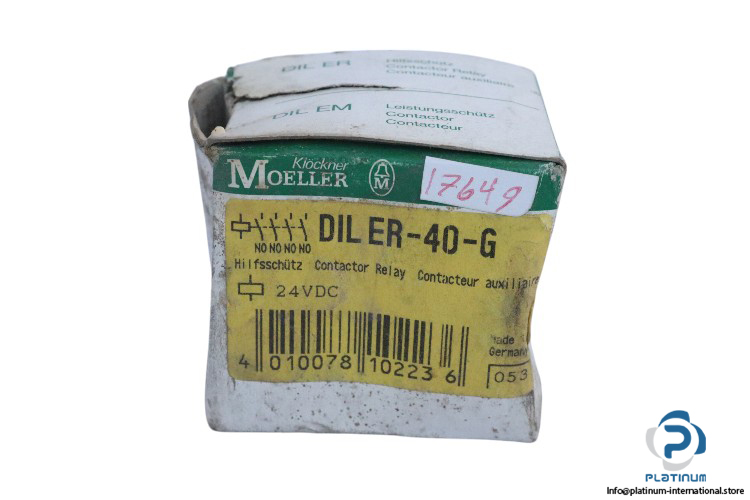

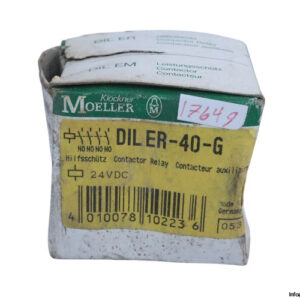

- EAN No.: 4010078102236
- Part No.: 053
Technical Data:
- Coil Voltage: 24 V DC
- Power Consumption: 2.3 W

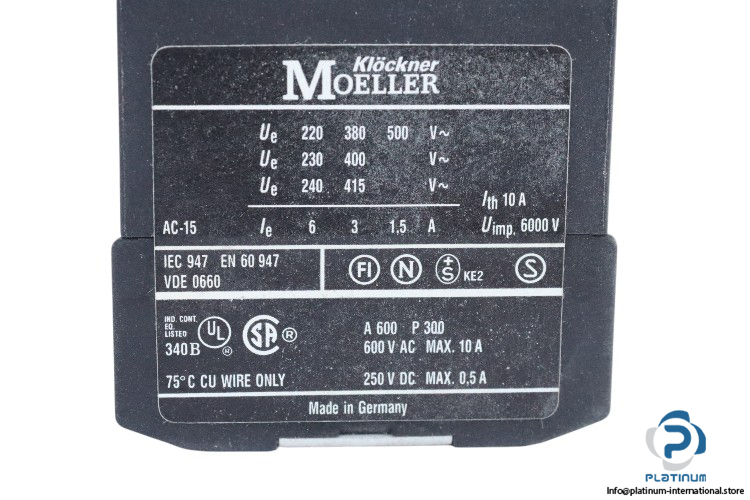

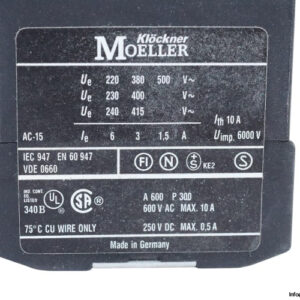

- Rated Operational Current (Ie) AC-15: 3 A at 400 V AC
- Rated Impulse Withstand Voltage (Uimp): 6000 V AC
- Thermal Current (Ith): 10 A

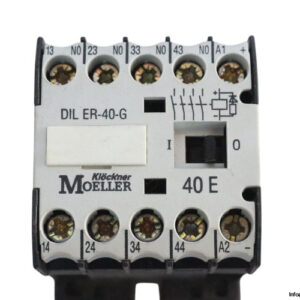

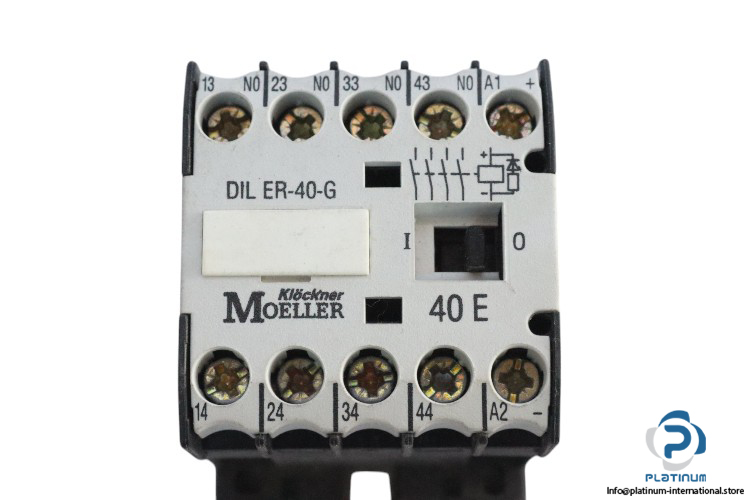

- Contact: 4NO
- Pollution Degree: 3
- Standard: IEC 947, EN 60947, VDE 0660
- Degree of Protection: IP20
- Ambient Operating Temperature: -25 to 50 degrees Celsius
- Dimensions: 54 x 58 x 45 mm
