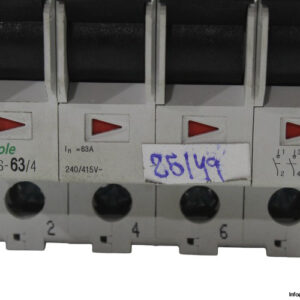

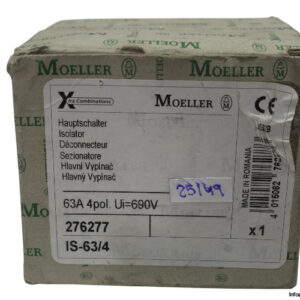

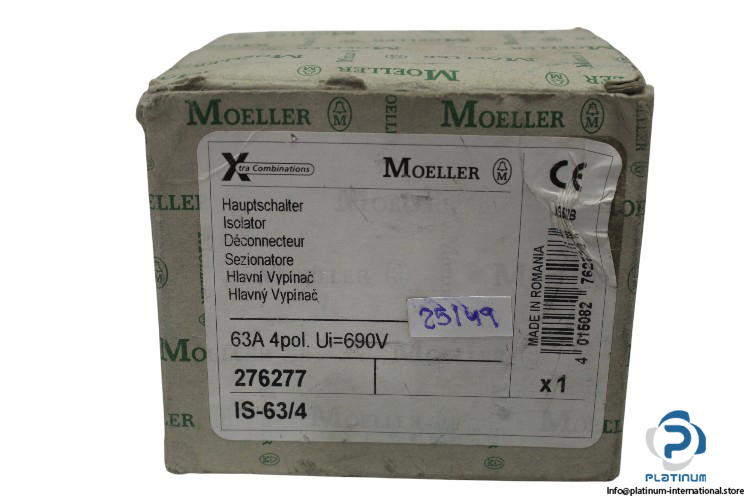

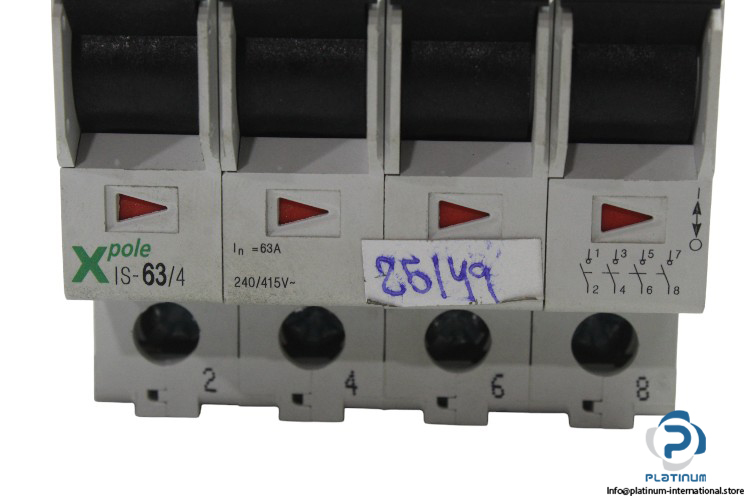

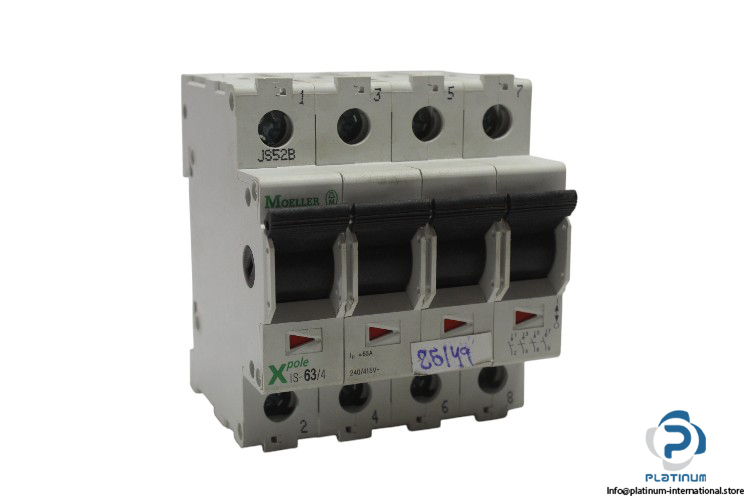

Moeller IS-63/4 Disconnector Switch

The Moeller IS-63/4 is a robust four-pole disconnector switch designed for safe and efficient power isolation in industrial electrical systems. With a 63 A rated current and high switching capacity, it provides reliable performance in compact form.

Manufacturer: MOELLER

Type: Disconnector Switch

Model: IS-63/4

Part No.: 276277

Technical Data:

• Terminals: Lift terminal
• Equipment Heat Dissipation, Current-Dependent: 7 W
• Heat Dissipation Per Pole, Current-Dependent: 4.8 W
• Built-in Depth: 69.5 mm
• Amperage Rating: 63 A
• Rated Operational Current (In): 63 A
• Rated Operational Voltage (Ue) “ Max: 415 V
• Voltage Rating “ Min: 240 V
• Rated Switching Capacity: 12.5 kA
• Width in Number of Modular Spacings: 4
• Number of Poles: Four-pole
• Dimensions: 60 x 80 x 70.8 mm
