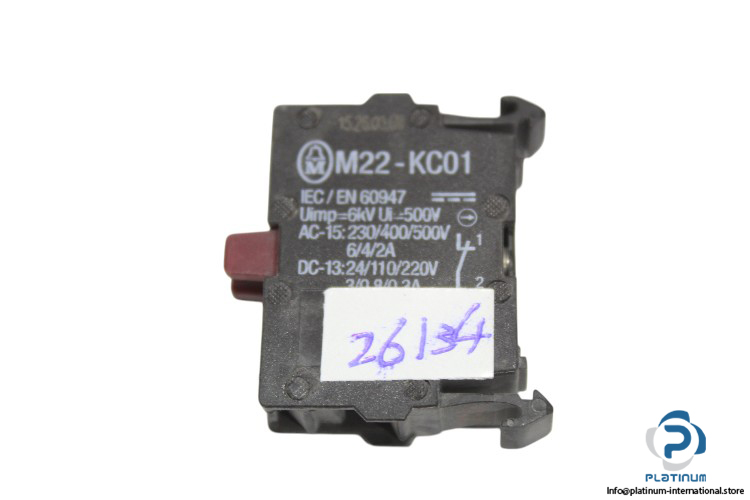

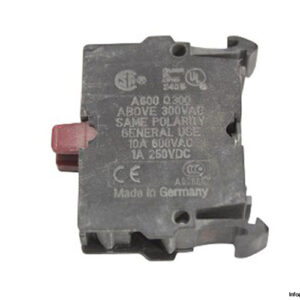

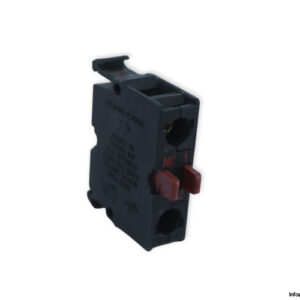

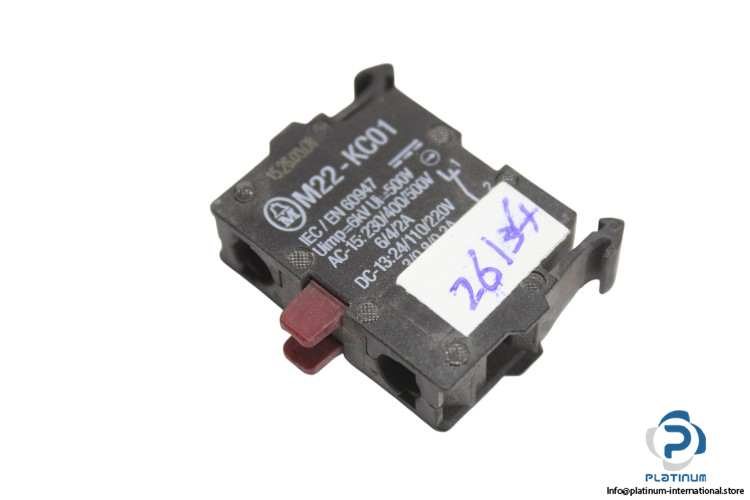

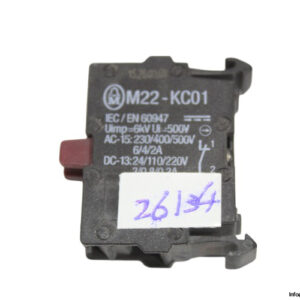

Moeller M22KC01 “ Pushbutton Contact Module

The Moeller M22KC01 pushbutton contact module is engineered for reliable performance in industrial applications. Designed for easy integration, it features screw connections and a robust IP20 rating, making it a durable choice for diverse environments.

• Manufacturer: Moeller
• Type: Pushbutton Contact Module
• Model: M22KC01
• Part No.: 15.26.00.00
• Product Tradename: M22

Technical Information:

• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Operational Current (Ie) at AC-15:
  • At 230 V: 6 A
  • At 400 V: 4 A
  • At 500 V: 2 A
• Rated Operational Current (Ie) at DC-13:
  • At 24 V: 3 A
  • At 110 V: 0.8 A
  • At 220 V: 0.3 A
• Rated Conditional Short-Circuit Current (Iq): 1 kA
• Contact: 1 Normally closed
• Electric Connection Type: Screw connection
• Pollution Degree: 3
• Operating Torque: 0.8 N·m
• Standard: IEC/EN 60947
• Degree of Protection: IP20
• Ambient Operating Temperature: -25 to 70°C
• Dimensions: 38 x 10 x 32 mm
