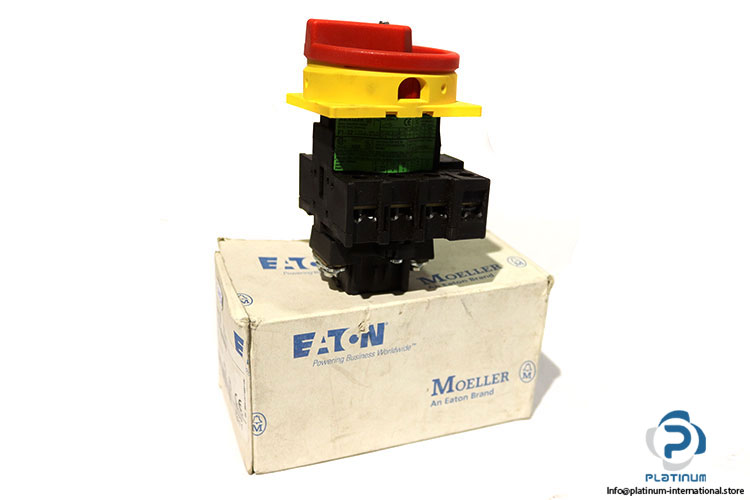

MOELLER EATON P1-32/EA/SVB/N MAIN SWITCH

The Moeller Eaton P1-32/EA/SVB/N Main Switch is designed for reliable power control and motor disconnecting applications. With a robust 32 A current rating, high short-circuit withstand capacity, and compliance with international standards, it provides safe and efficient operation in demanding industrial environments.

Manufacturer: Moeller Eaton
Type: Main Switch

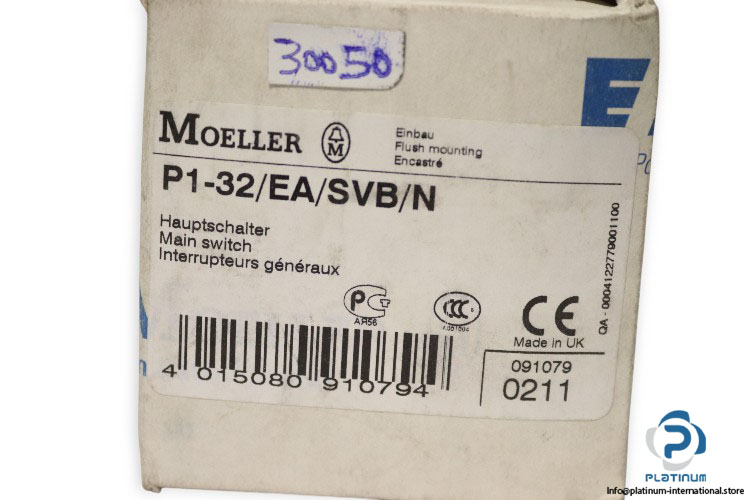

Model: P1-32/EA/SVB/N
Serial No.: 4015080910794
Codes: 091079 / 0211 / QA-0004122779001100 / 340B / 165628 / A001004 / GB14048.3

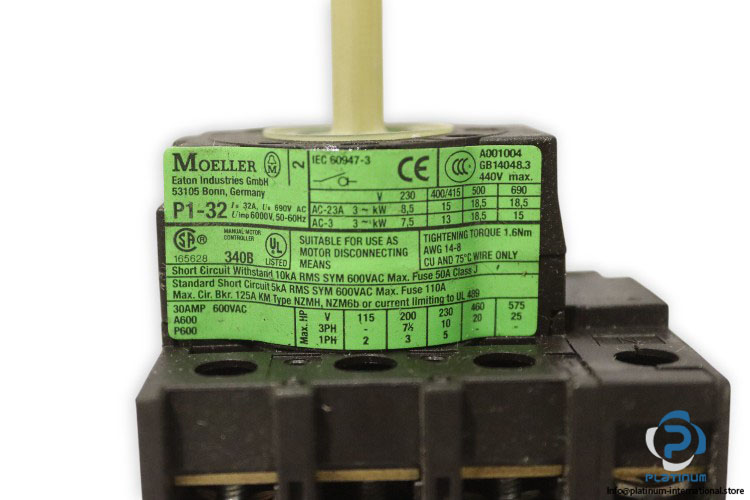

Technical Information

• Series: P1-32
• Current: 32 A
• Voltage: 690 V AC
• Rated Impulse Voltage: 6000 V
• Frequency: 50“60 Hz
• Tightening Torque: 1.6 Nm (AWG 14“8)
• Short Circuit Withstand: 10 kA RMS SYM @ 600 V AC, Max. Fuse 50 A (Class J)
• Standard Short Circuit: 5 kA RMS SYM @ 600 V AC, Max. Fuse 110 A
• Suitable For Use: As Motor Disconnecting Means
• Power:
  • @ AC-23A: @ 690 V, 18.5 kW
  • @ AC-3: @ 690 V, 15 kW
• Horse Power:
  • @ 3PH: @ 230 V, 7 ½ HP
  • @ 1PH: @ 230 V, 3 HP
• Rated Voltage: 600 V @ 30 A
• Number of Poles: 3 Pole
