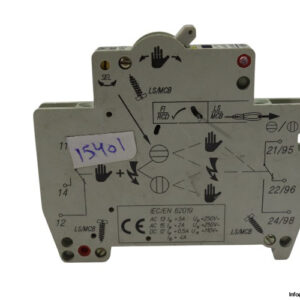

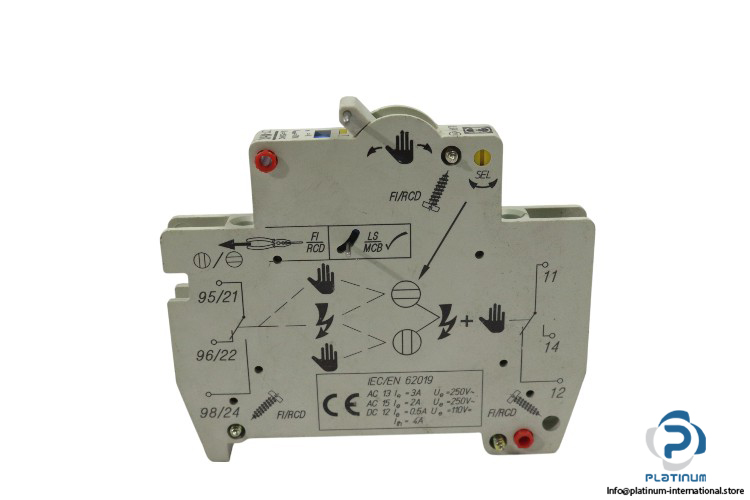

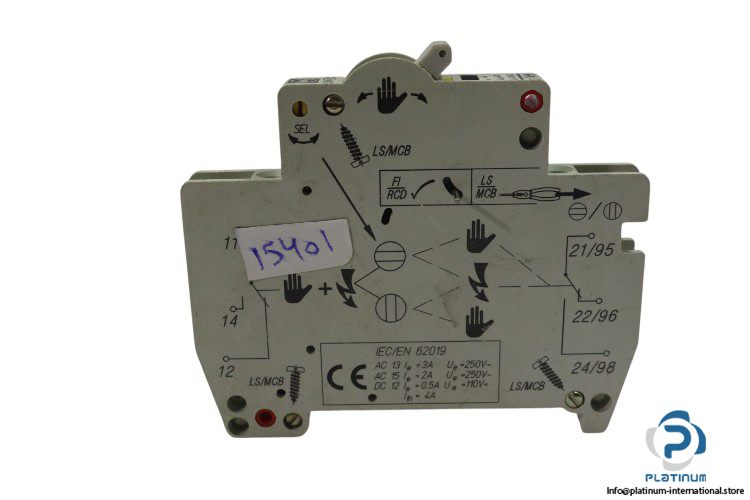

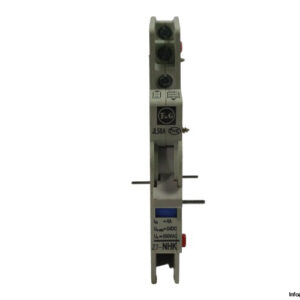

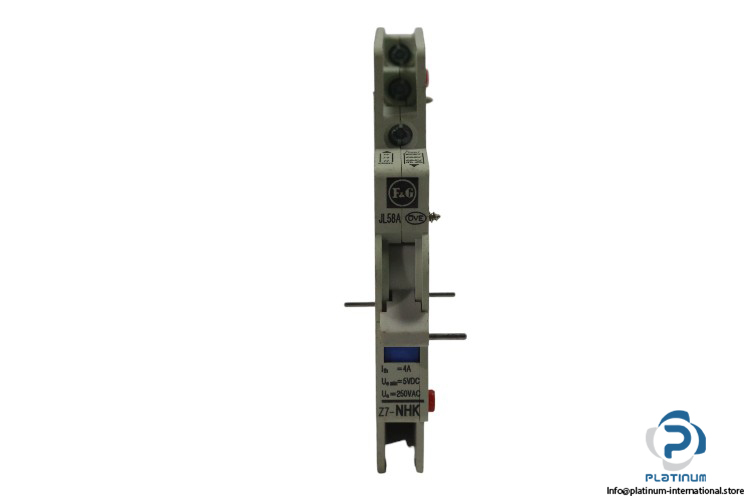

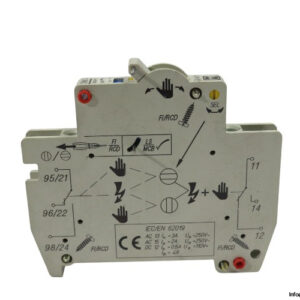

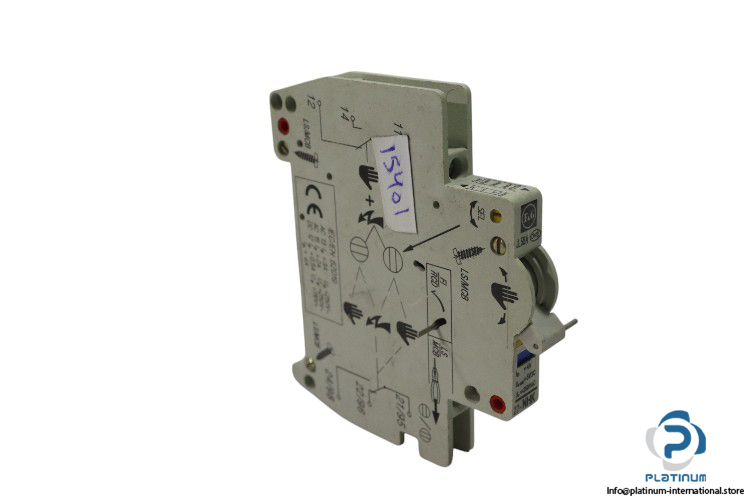

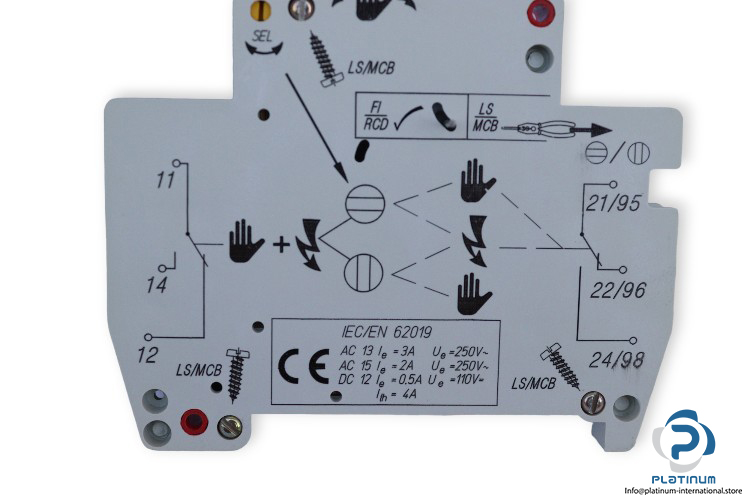

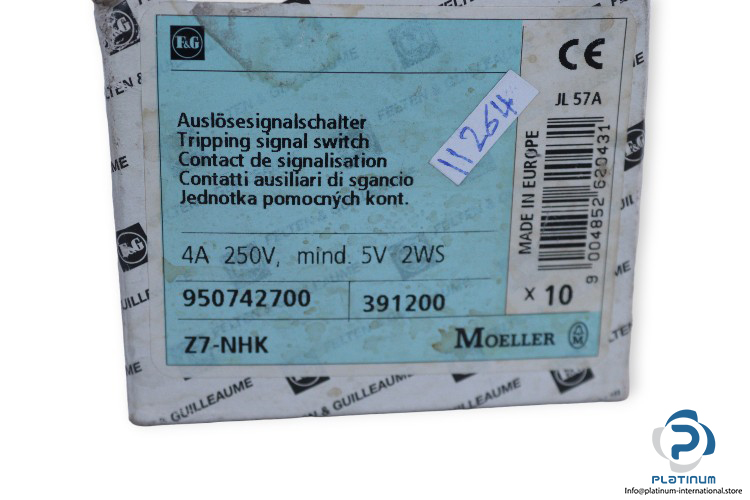

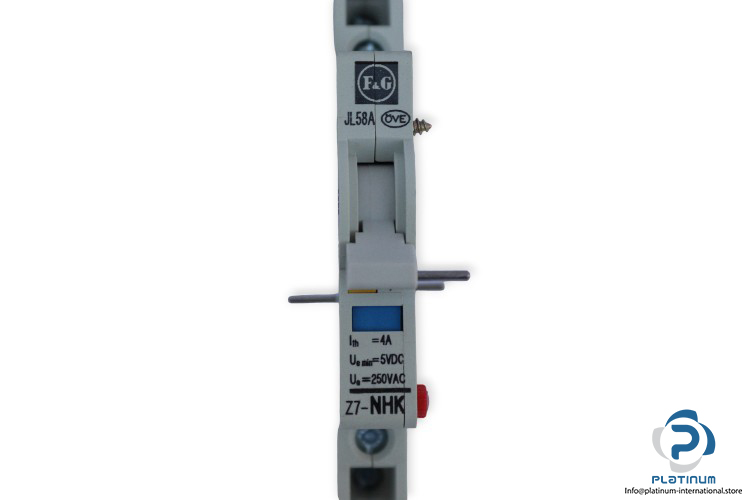

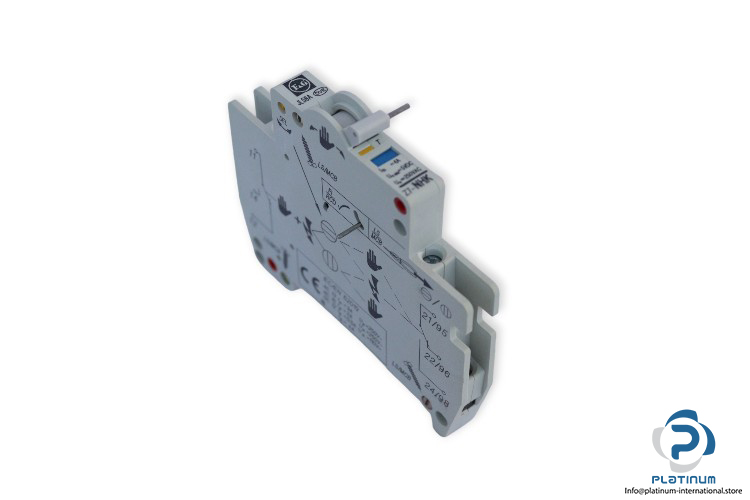

Moeller Z7-NHK Tripping Signal Switch

The Moeller Z7-NHK is a compact and reliable tripping signal switch designed for control and signaling applications in industrial systems. Featuring two change-over contacts, it supports versatile switching operations across both AC and DC circuits. It conforms to IEC/EN 62019 standards and offers a rated voltage of 250 V AC, with a thermal current rating of 4 A. With robust switching capacities including AC-13 and AC-15 applications, the Z7-NHK is ideal for tripping circuits, alarms, and control systems requiring dependable performance and safety compliance.

• Manufacturer: Moeller
• Type: Tripping Signal Switch
• Model: Z7-NHK

Technical Specifications:

• Thermal Current (Ith): 4 A
• Minimum Operating Voltage (Umin): 5 V DC
• Rated Voltage (Ue): 250 V AC
• Contact Function: 2 Change-over contacts
• Switching Capacity:
  • AC-13: 250 V AC, 3 A
  • AC-15: 250 V AC, 2 A
  • DC-12: 110 V DC, 0.5 A
• Standard: IEC/EN 62019
