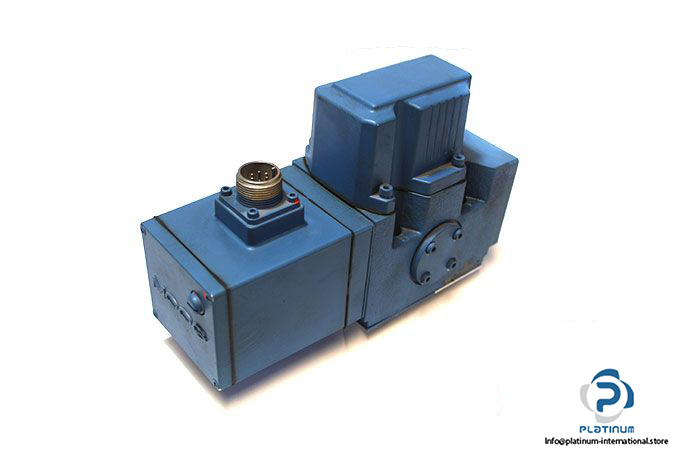

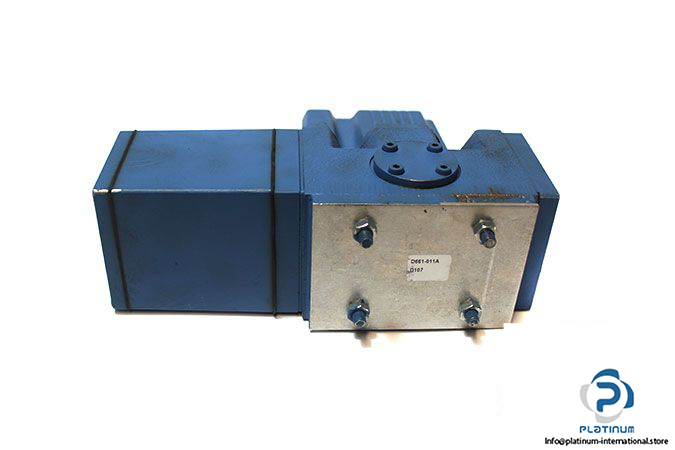

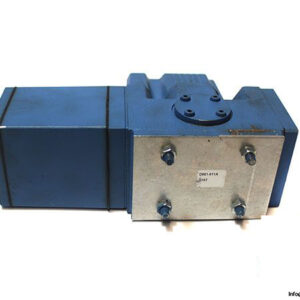

Manufacturer: MOOG

Type: Servo Proportional Control Valve

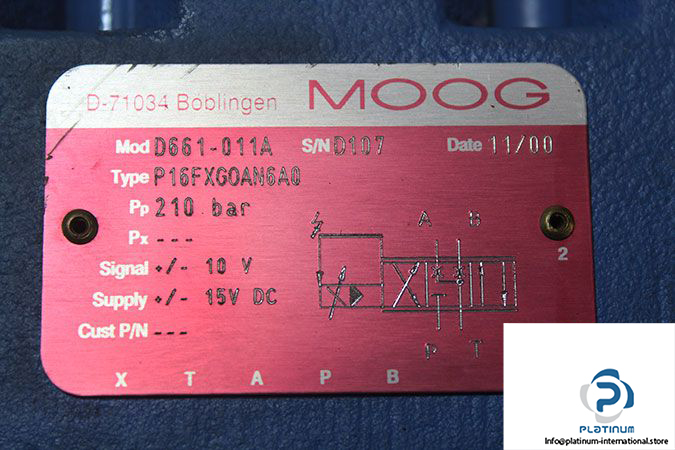

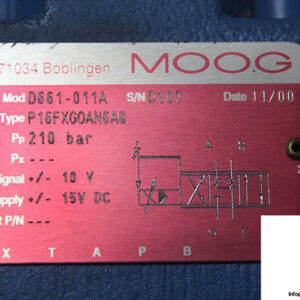

Model: D661-011A

Type Designation: P16FXGOAN6A0

Max. Operating Pressure Port P, A, B: 210 bar

Max. Operating Pressure Port T: Up To 350 bar

Rated Flow: 16 l/min

Main Spool Type: Special Spool on Request

Pilot Stage: Nozzle/Flapper

Pilot Flow At 140 bar: 0.65

Pilot Pressure: 15-280

Electric Supply: 15 V DC

Weight: 5.24 kg
