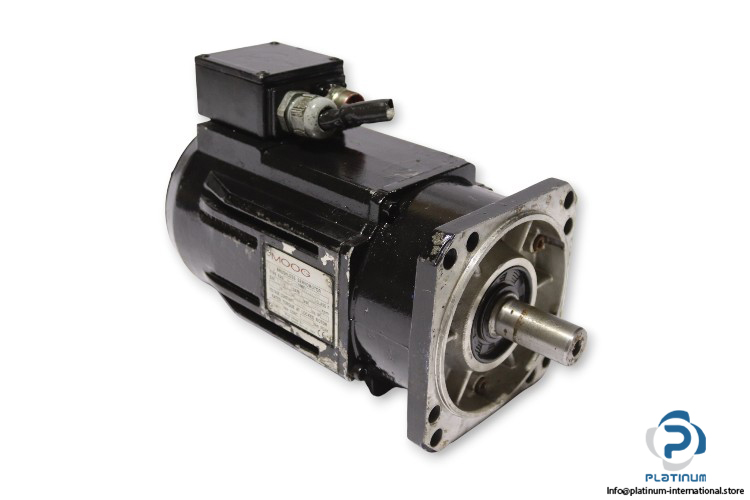

Moog FAS N-2-M3-030-10-02 Brushless AC Servomotor
The Moog FAS N-2-M3-030-10-02 from the Fastact N Series is a high-performance brushless AC servomotor engineered for precision, speed, and reliability. Designed for demanding automation and motion control systems, it delivers accurate positioning and exceptional torque consistency even under continuous operation.

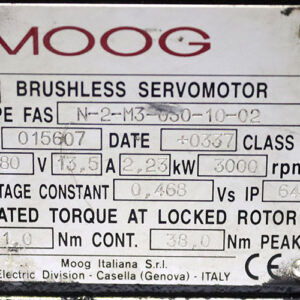

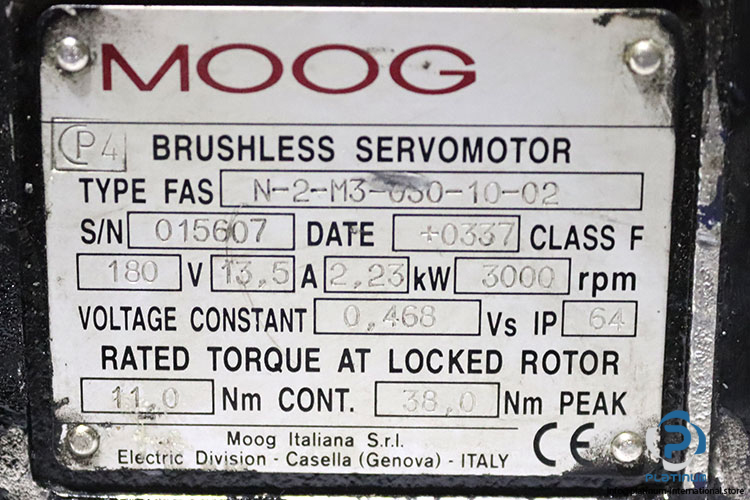

Manufacturer: Moog
Type: Brushless AC Servomotor
Model: FAS N-2-M3-030-10-02
Serial No.: 015607
Series: Fastact N
Technical Information
- Size: 2
- Rated Voltage: 180 V
- Rated Current: 13.5 A
- Rated Power: 2.23 kW
- Rated Speed: 3000 rpm
- Voltage Constant (Ke): 0.468 Vs
- Rated Torque at Locked Rotor: 11 Nm (continuous)
- Peak Torque: 38 Nm
- No. of Poles: 6
- Type of Motor: Synchronous brushless (permanent magnet)
- Cooling Type: Natural convection (self-cooled)

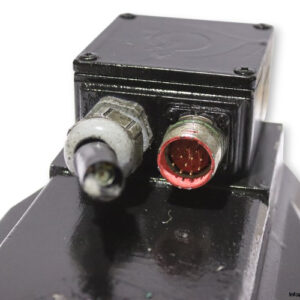

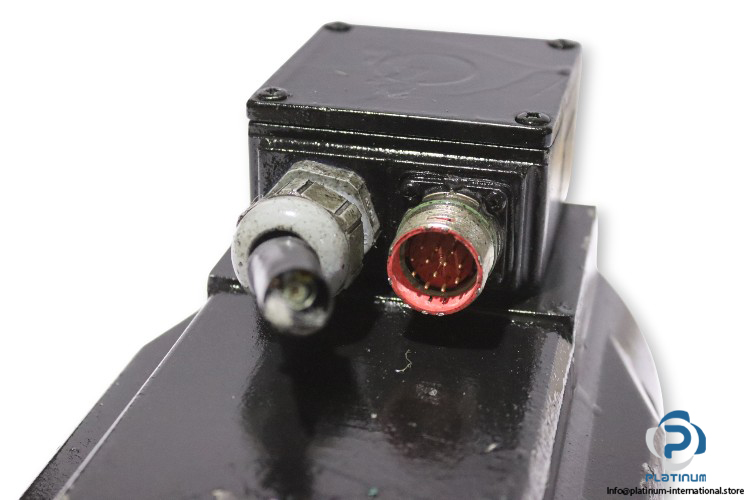

- Feedback Connector: Circular multipin type (for encoder/resolver feedback)
- Insulation Class: F
- Protection Degree: IP64
- Compliance: CE Marked
- Electrical Options: Safety Brake
- Mechanical Options: Key IEC72

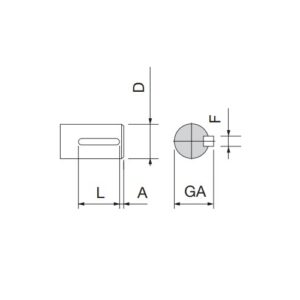

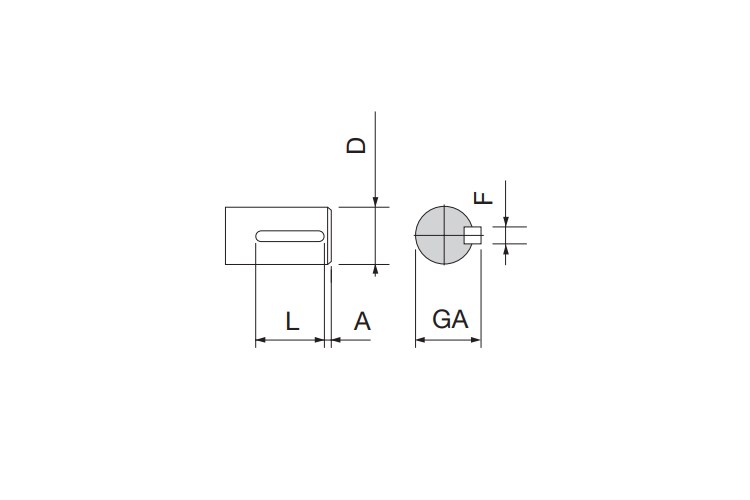

- Dimensions: A: 24J6, L: 32, A: 3, GA: 27, F: 8
Built for dynamic motion control applications, this Moog servomotor ensures smooth acceleration and precise torque delivery. Its robust IP64 housing offers excellent protection in industrial environments, while the CE-marked compliance guarantees safety and reliability. Ideal for robotics, CNC machinery, and automated production systems, it combines high torque density with exceptional efficiency, helping you achieve faster cycle times and superior performance stability.
