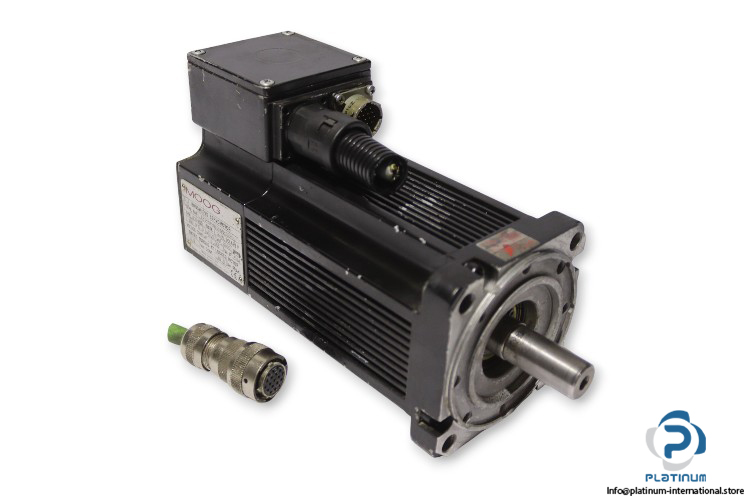

Moog FAST-1-M4-030-00-02-00 Brushless Servomotor
The Moog FAST-1-M4-030-00-02-00 is a high-performance brushless servomotor from the Fastact T Series, engineered for precision, efficiency, and long-term reliability in demanding industrial applications. Its compact design, high torque density, and smooth speed control make it ideal for automation systems, robotics, CNC machinery, and other motion control environments that require exceptional accuracy and responsiveness.

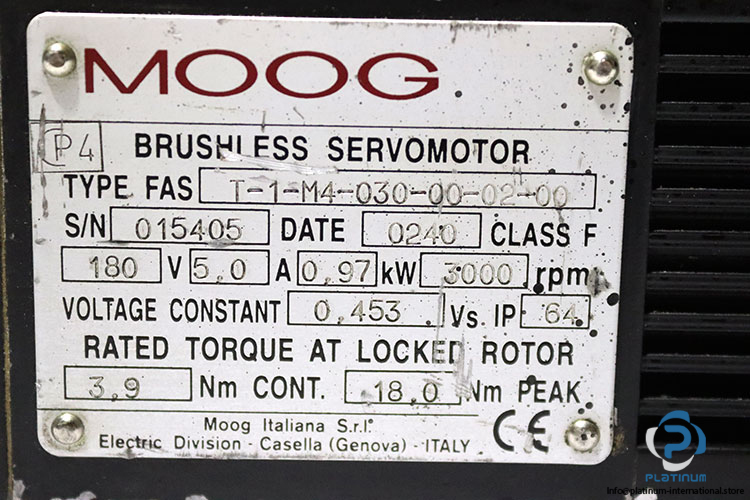

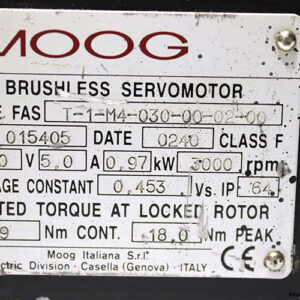

Manufacturer: Moog
Type: Brushless Servomotor
Model: FAST-1-M4-030-00-02-00
Serial No.: 015405
Series: Fastact T
Technical Information
- Size: 1
- No. of Rotor Modules: 4
- Rated Voltage: 180 V
- Rated Current: 5 A
- Rated Power: 0.97 kW
- Rated Speed: 3000 rpm
- Voltage Constant (Ke): 0.453 Vs
- Rated Torque at Locked Rotor: 3.9 Nm (continuous)
- Peak Torque: 18 Nm
- No. of Poles: 6
- Cooling Type: Natural Convection (Self-cooled, ribbed housing)

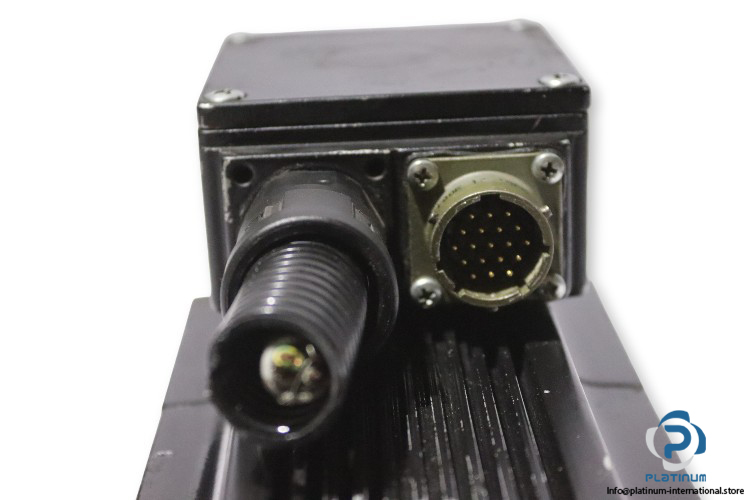

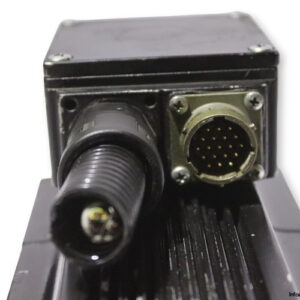

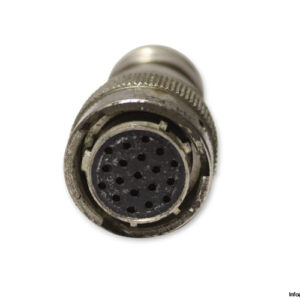

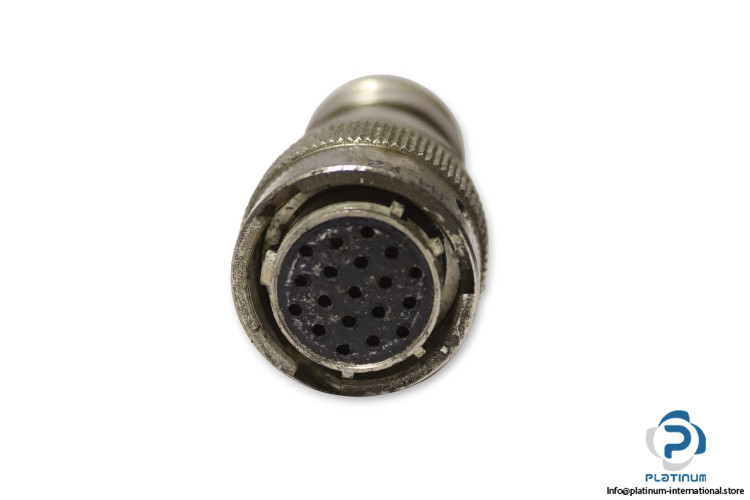

- Connection Type: Circular industrial connectors for power and feedback
- Insulation Class: F
- Protection Degree: IP64
- Compliance: CE Marked
- Mechanical Options: Key IEC72
Engineered by Moog for precision and dynamic performance, this servomotor delivers exceptional torque response and stability under varying loads. Its brushless design ensures low maintenance, high efficiency, and extended lifetime operation. Perfect for advanced automation tasks, it provides seamless integration with modern motion controllers and servo drives.
