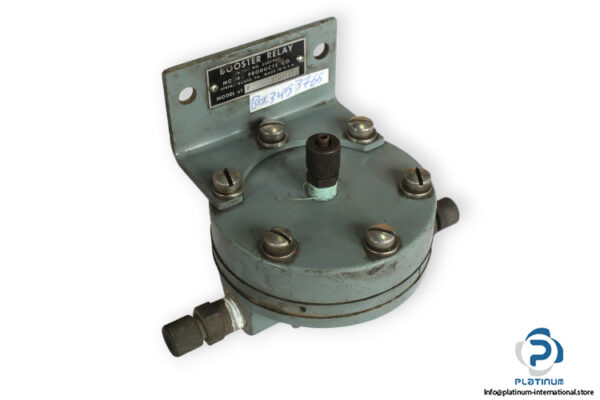

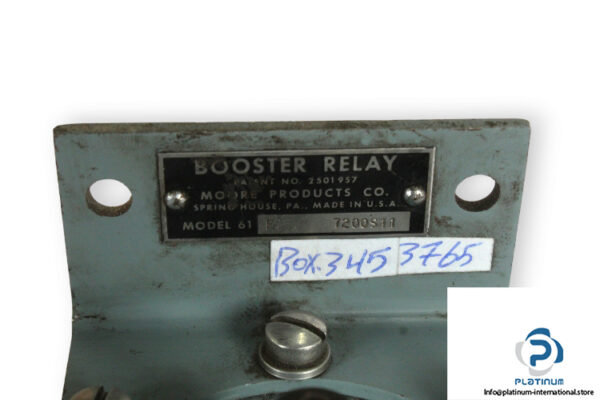

Manufacturer: MOORE
Type: Booster Relay
Model: 61F
Part no.: 7200S11

Input and Output Ranges
Normal: 3 to 15 psig
Maximum: 0 to 50 psig
Supply Pressure
 Normal: 20 psi
 Minimum: 1 psi above the highest output
 Maximum: 50 psi
Zero Adjustment: +/- 0.5 psi
Ambient Temperature Limits: -40°C to 82°C
Supply and output Connections: G1/4
Input Connection: G1/8
