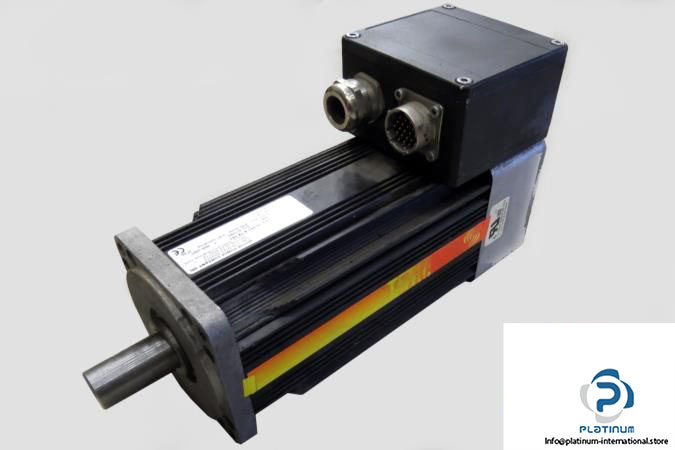

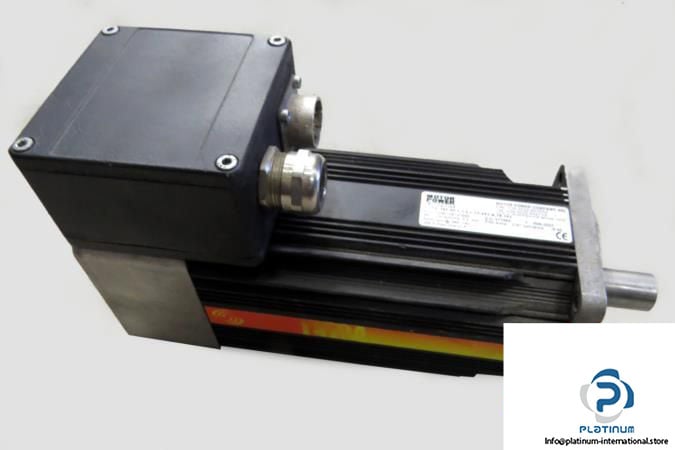

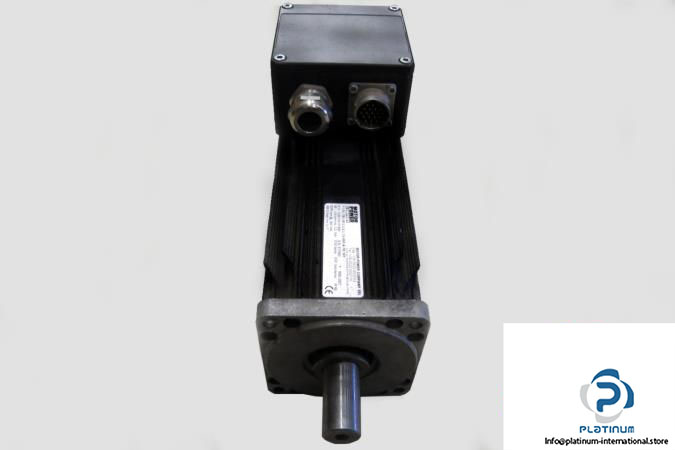

Motor Power Tetra Servo Motor T85.SR.3.2.E.L.15.003.A.18.101

The Motor Power Tetra Servo Motor is designed for high-performance applications, delivering precision control and efficiency. With a nominal torque of 3.2 Nm and a maximum speed of 5200 rpm, this servo motor is ideal for industrial automation systems that require reliable and consistent operation under varying conditions.

Manufacturer: Motor Power

Type: Tetra Servo Motor

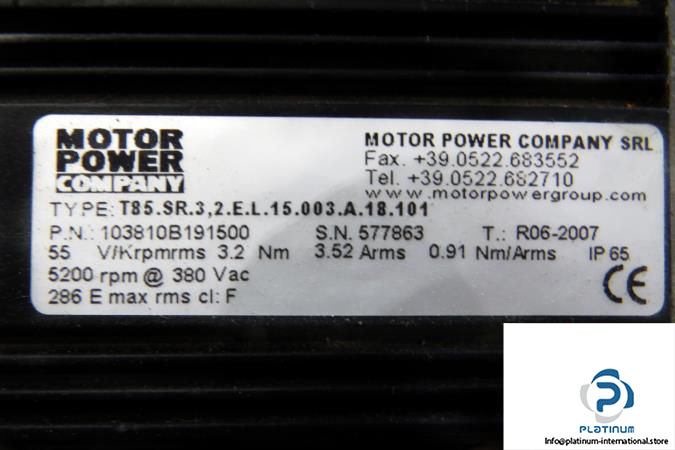

Model: T85.SR.3.2.E.L.15.003.A.18.101

MRN: 103810B191500

Ref No.: 577863

Technical Data:

• Waveform: Sinewave
• Transducer Type: Encoder
• Moment of Inertia: Low
• Transducer Model: Encoder dia 48, 4p 2000 ppr
• Nominal Torque: 3.2 Nm
• Speed: 5200 rpm at 380 Vac
• Rated Current: 3.5 A
• Torque Constant: 0.91 Nm/Arms
• Poles Number: 4
• Operating Temperature: 0 to +40 °C
• Protection Degree: IP65
