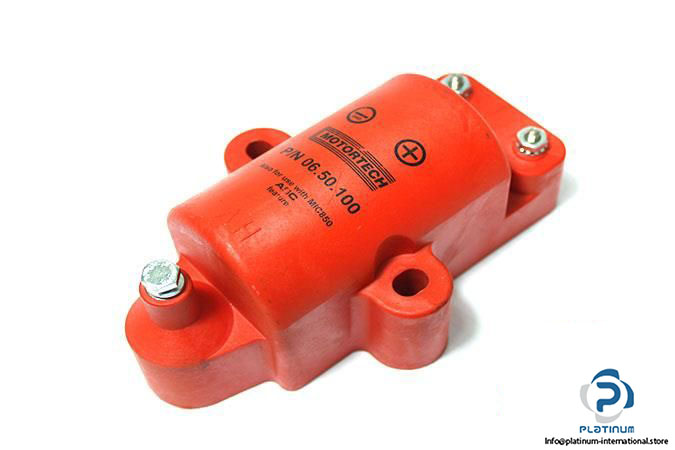

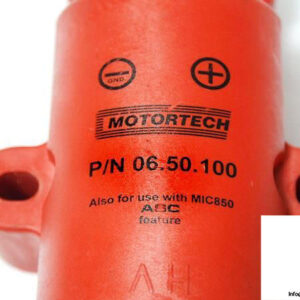

Manufacturer: MOTORTECH

Type: Ignition Coil

Part No.: 06.50.100

Also For Use with MIC850 ASC Feature

Compatible Ignition Controllers: MIC3, MIC4, MIC5, MIC500, MIC850

Maximum Secondary Voltage: 45 kV

Resistance Primary Side: 0.6 Ω ± 0.1 Ω

Resistance Secondary Side: 11.5 kΩ +0.5 kΩ /-2.0 kΩ

Primary Termination: N10-32 UNF studs

Secondary Side: M6

Permissible Vibrations: 5 g at 20 Hz to 2,000 Hz

Temperature Range: -20 … 95 °C

Dimensions: 72 x 101.2 x 161.6 mm

Weight: 1 kg
