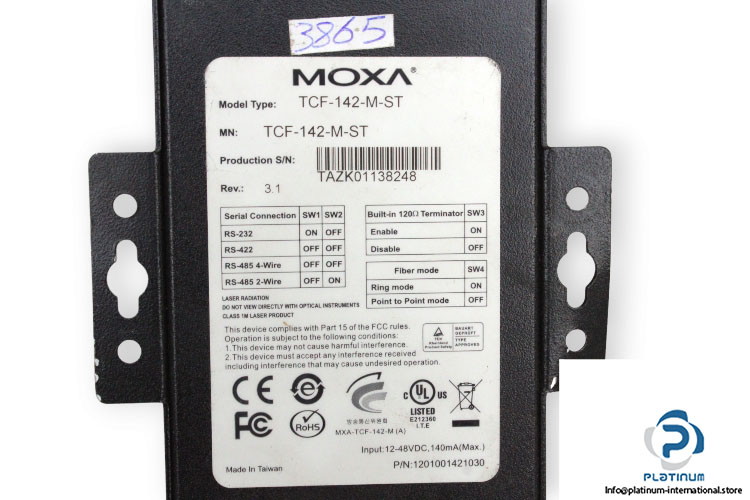

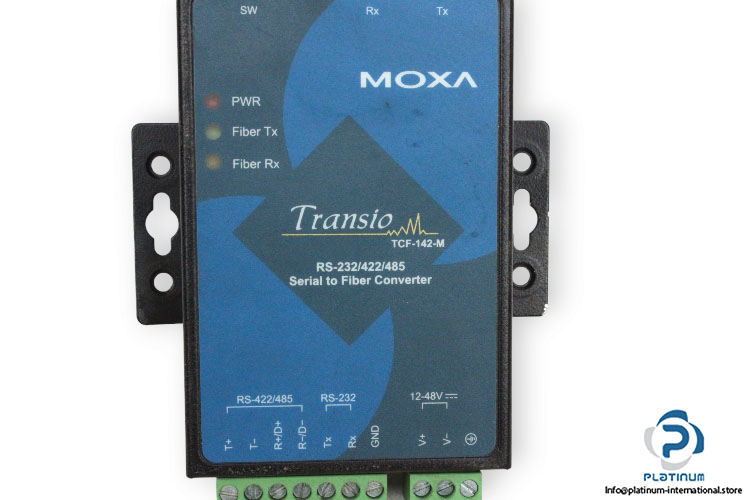

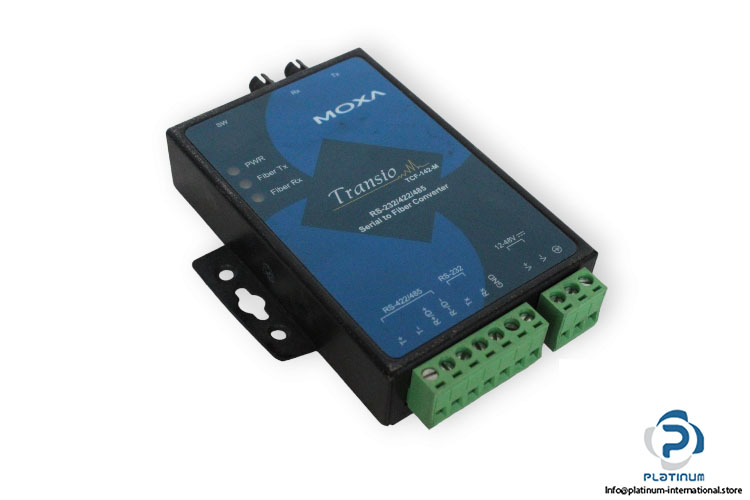

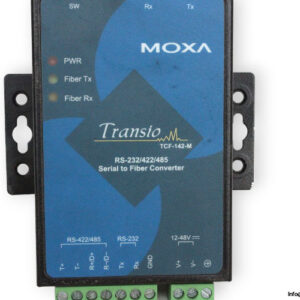

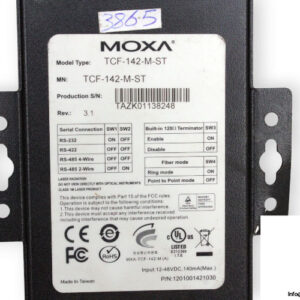

Moxa TCF-142-M-ST Media Converter

The Moxa TCF-142-M-ST is a high-performance industrial media converter designed to extend serial communication over optical fiber. Supporting RS-232, RS-422, and RS-485 interfaces, it ensures secure and interference-free data transmission across long distances. Featuring ST connectors and fiber ring redundancy, this multi-mode converter is ideal for automation, transportation, and process control systems.

Manufacturer: Moxa
Type: Media Converter
Model: TCF-142-M-ST

Technical Information

• Input Current: 70 / 140 mA
• Input Voltage: 12 / 48 VDC
• Interface Type: RS-232 / RS-422 / RS-485
• Function: Multi-Mode Optical Fiber Media Converter With Fiber Ring Support And ST Connector
• Typical Distance: 5 km
• Installation: Wall Mounting
• Typical Wavelength: 850 nm
• TX Range: 840 / 860 nm
• RX Range: 800 / 900 nm
• Connector: 7-Pin Terminal Block
• No. of Ports: 2
• Protection Degree: IP30
• Housing Material: Metal
• Operating Temperature: 0 / 60 °C
• Dimensions: 90 × 100 × 22 mm
