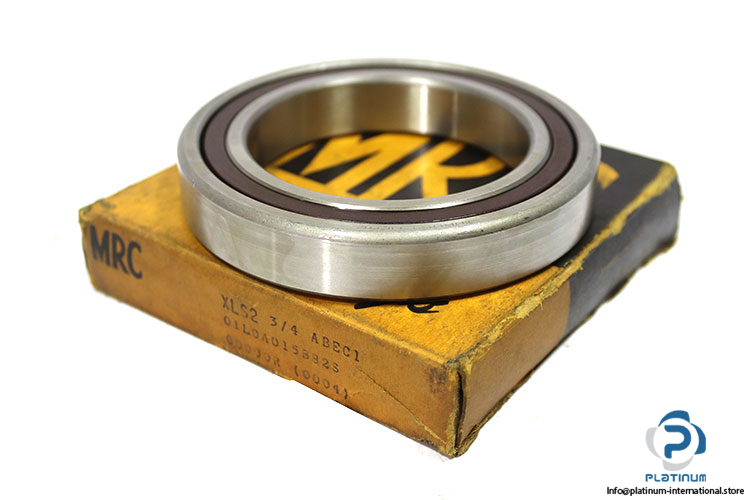

MRC XLS2 3/4 ABEC1 ANGULAR CONTACT BALL BEARING

This precision-engineered angular contact ball bearing from MRC is built to handle combined radial and axial loads with superior speed and durability. With a 15° contact angle and ABEC1 tolerance class, it is ideal for high-performance industrial applications requiring both accuracy and reliability.

Manufacturer: MRC
Type: Angular Contact Ball Bearing
Model: XLS2 3/4 ABEC1

Technical Information

• Bore Diameter (d): 69.9 mm
• Outer Diameter (D): 105 mm
• Width (B): 17.5 mm
• Angle: 15°
• Dynamic Load Rating (Cr): 42300 N
• Static Load Rating (C0r): 39000 N
• Lubrication with Oil: 7300 rpm
• Lubrication with Grease: 6000 rpm
• Tolerance Class: ABEC1
