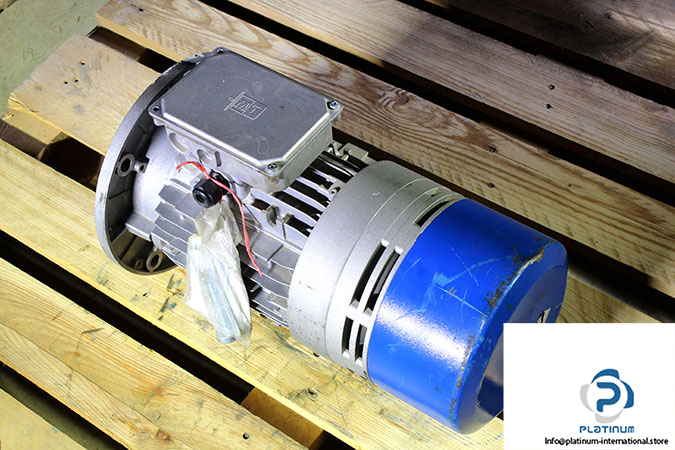

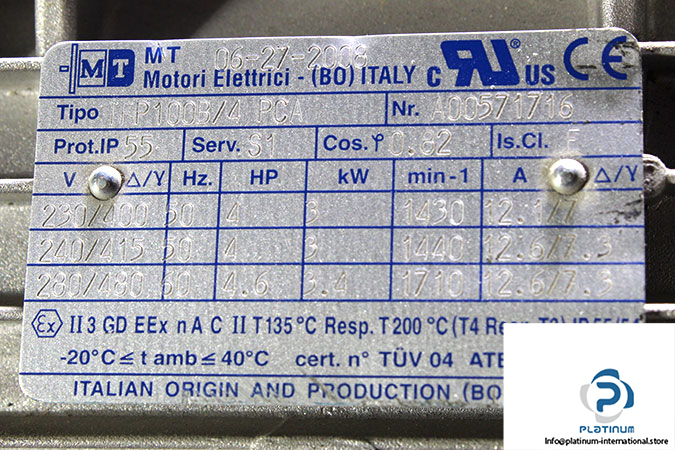

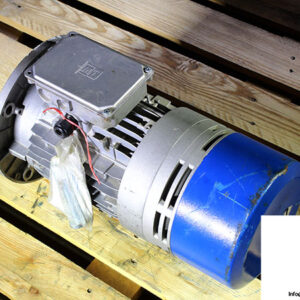

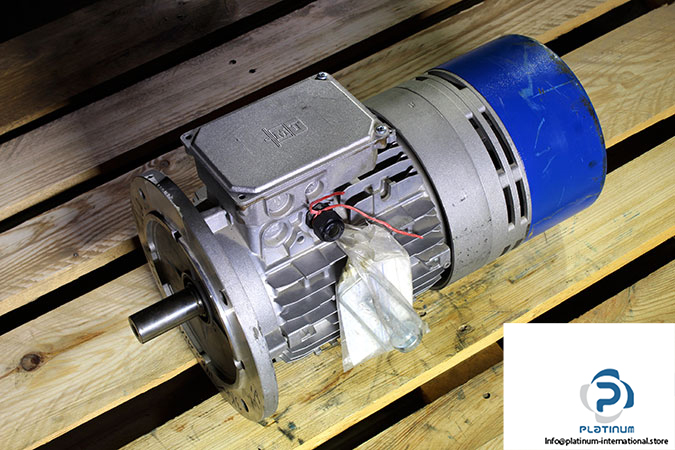

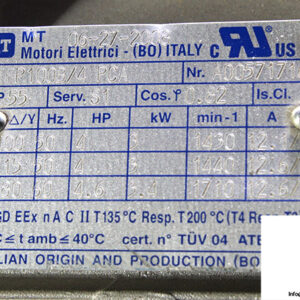

Manufacturer: MT Motori Elettric
Type: Motor Brake
Model: TFP100B/4 PCA

Frequency (HZ): 50
Voltages (V(Delta – Star)): 230 – 400
Rated Current (A(Delta – Star)): 12.1 – 7
Rated Power (KW): 3
Rated Speed (RPM): 1430
Pawer factor: 0.82

Frequency (HZ): 60
Voltages (V(Delta – Star)): 280 – 480
Rated Current (A(Delta – Star)): 12.6 – 7.3
Rated Power (KW): 3.4
Rated Speed (RPM): 1710
Pawer factor: 0.82
Number of Pole: 4
Protection Class (IP): 55
Duty: S1

BRAKE Size: 100
Max AC Brake Torque (Nm): 75
Rated AC Brake Current (mA (Star)): 390
