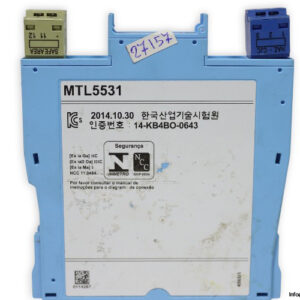

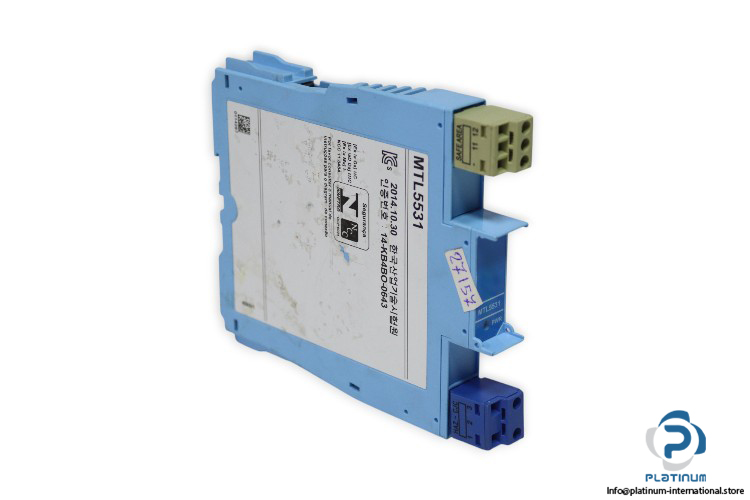

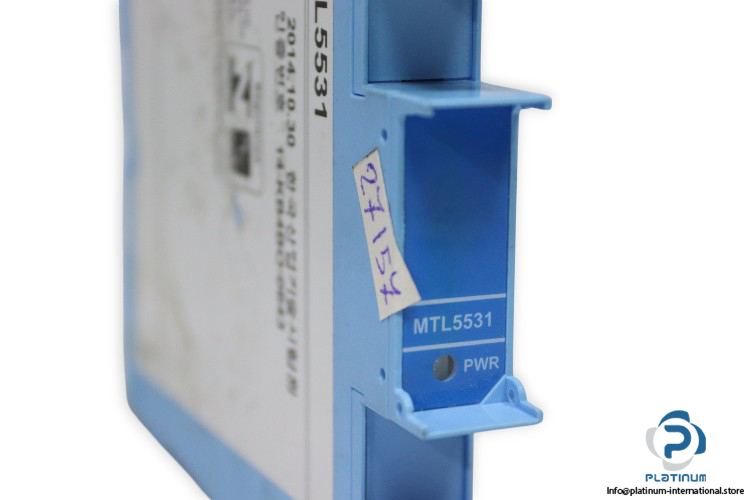

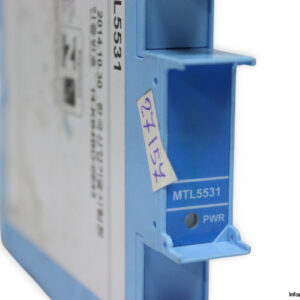

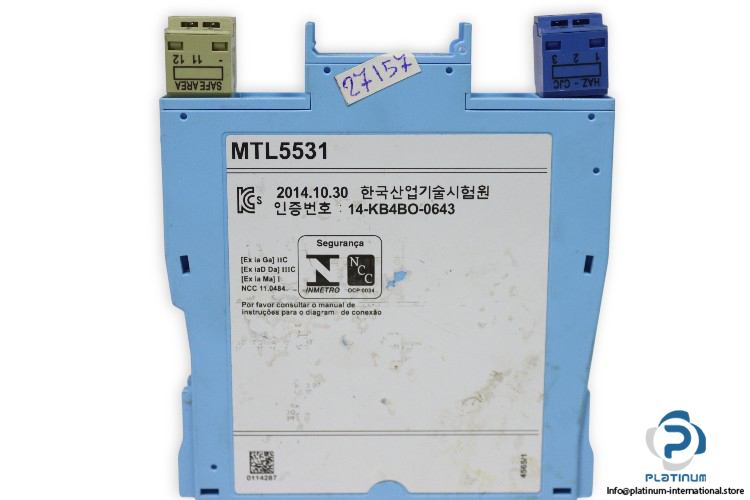

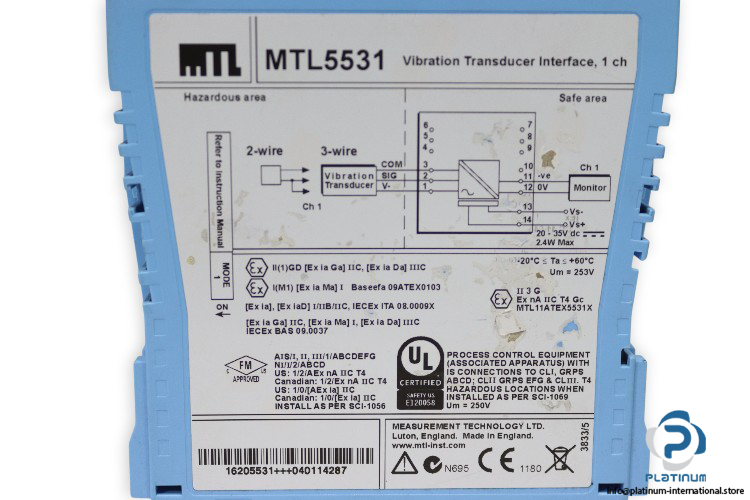

EATON MTL5531 / PWR VIBRATION TRANSDUCER INTERFACE
The Eaton MTL5531 / PWR Vibration Transducer Interface is designed for safe and accurate transmission of vibration signals from hazardous areas. With high accuracy, wide bandwidth, and support for 2- and 3-wire transducers, it provides reliable signal conversion for industrial monitoring systems.
Manufacturer: Eaton MTL
Type: Vibration Transducer Interface
Model: MTL5531 / PWR
Technical Information
- Supply Voltage: 20 to 35V DC
- Maximum Current Consumption: 65mA at 24V (with 10mA transducer load)
- Power Dissipation: Max 1.33W
- Number of Channels: One
- Signal Source: Zone 0, IIC, T4 – 6 hazardous area / Div. 1, Group A hazardous location (if suitably certified)
- Signal Range: Minimum -20V, Maximum -0.5V
- Sensor Type: 2- or 3-wire vibration transducer
- Transducer Supply Current (2-wire): 3.3mA nominal, user-selectable
- DC Transfer Accuracy at 20°C: ±50mV
- AC Transfer Accuracy at 20°C:
- 0Hz to 1kHz: ±1%
- 1kHz to 10kHz: -5% to +1%
- 10kHz to 20kHz: -10% to +1%
- Temperature Coefficient:
- ±50ppm/°C (10 to 65 °C)
- ±100ppm/°C (-20 to 10 °C)
- Voltage Bandwidth: -3dB at 47kHz (typical)
- Operating Temperature Range: -20 to 60°C
