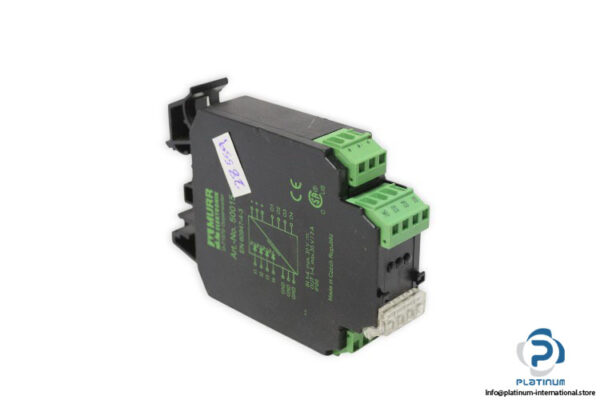

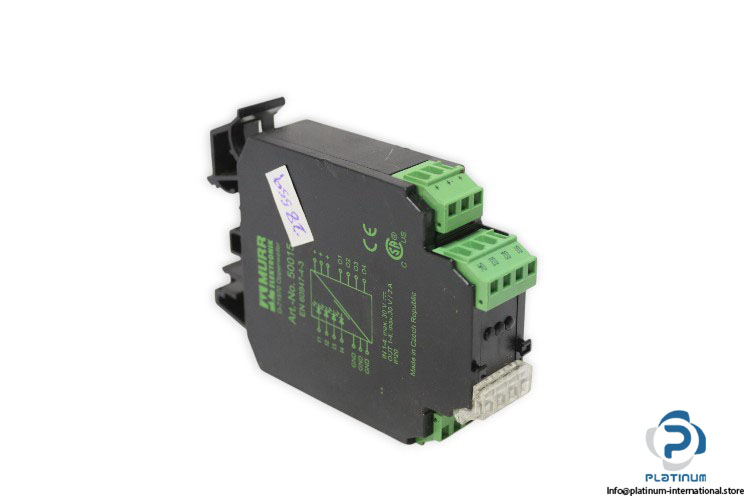

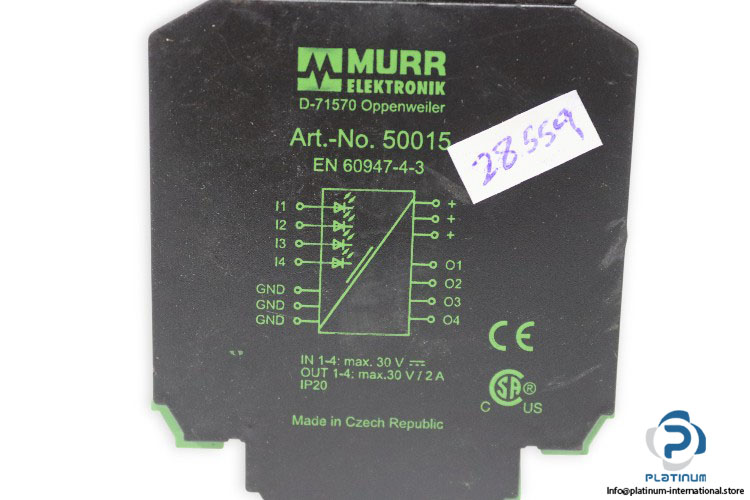

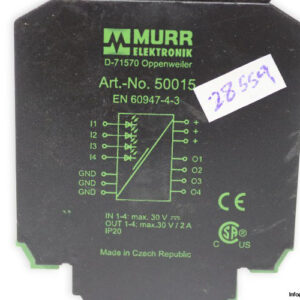

MURR 50015 OPTO COUPLER MODULE
The MURR 50015 is a reliable opto-coupler module designed for safe signal isolation and efficient switching performance in industrial automation systems. It offers robust operation with compact dimensions and easy DIN-rail mounting.
Manufacturer: MURR
Type: Opto-Coupler Module
Model: 50015
Technical Information
- Input Voltage Range: 20 / 30 V DC
- Input Current: 27 mA
- Output Voltage Max.: 30 V DC
- Output Current: 2 A
- Contact: 4 Normally Open (NO)
- Mounting Method: DIN-Rail
- Material: Plastic
- Protection Class: IP20
- Temperature: -25 / 50 °C
- Dimensions: 75 x 22.5 x 102 mm
