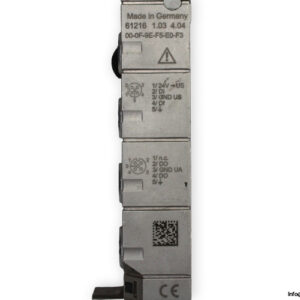

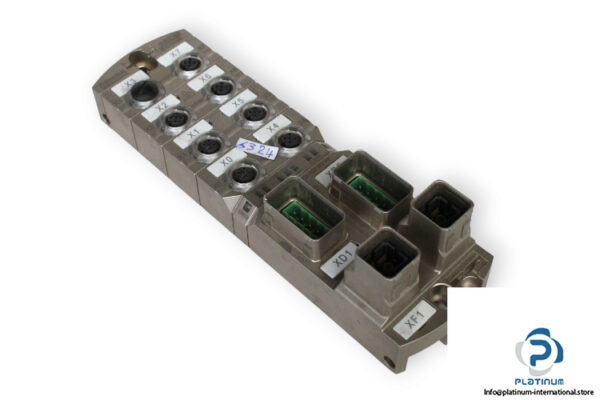

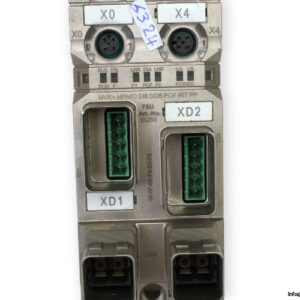

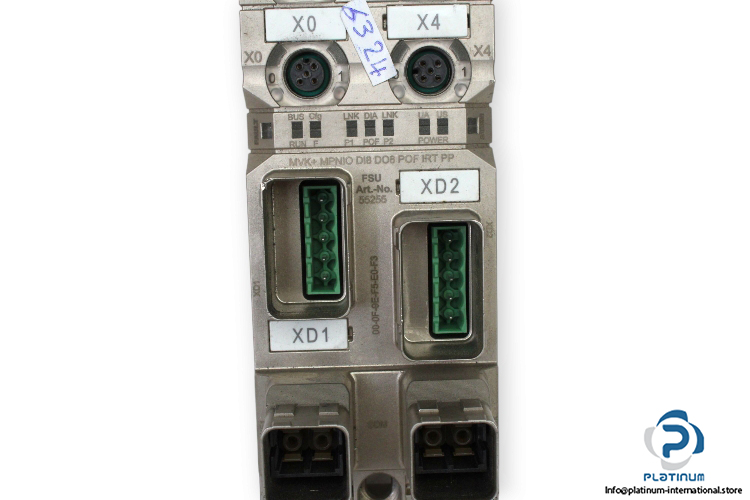

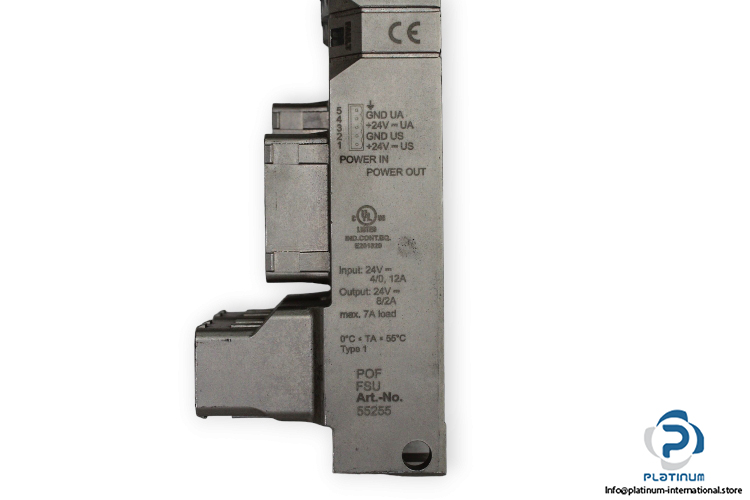

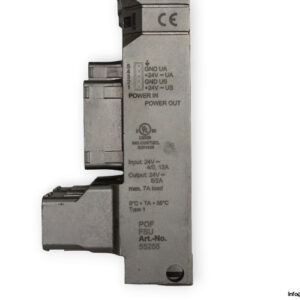

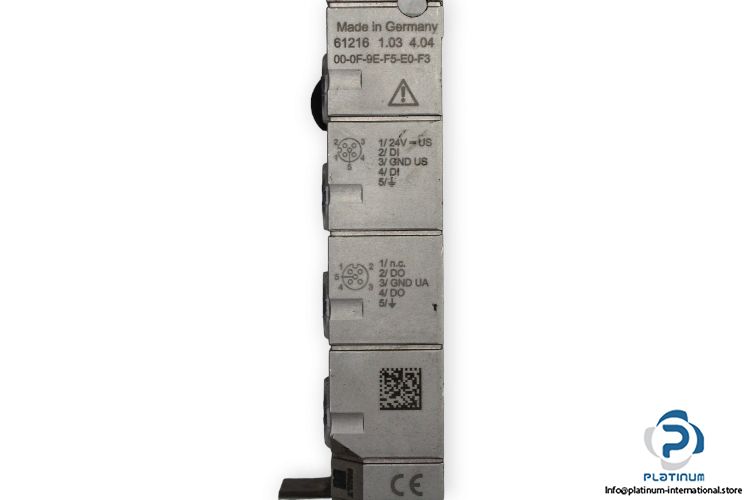

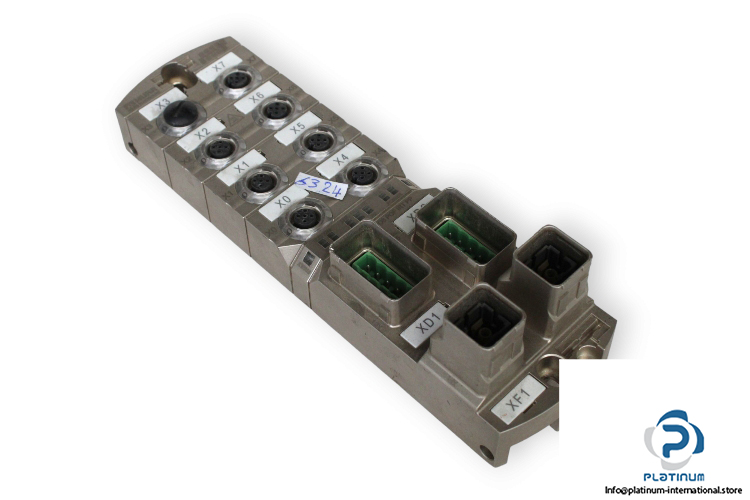

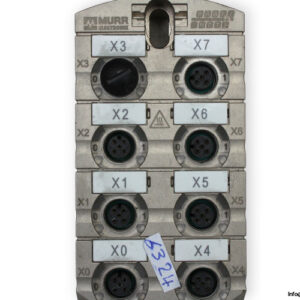

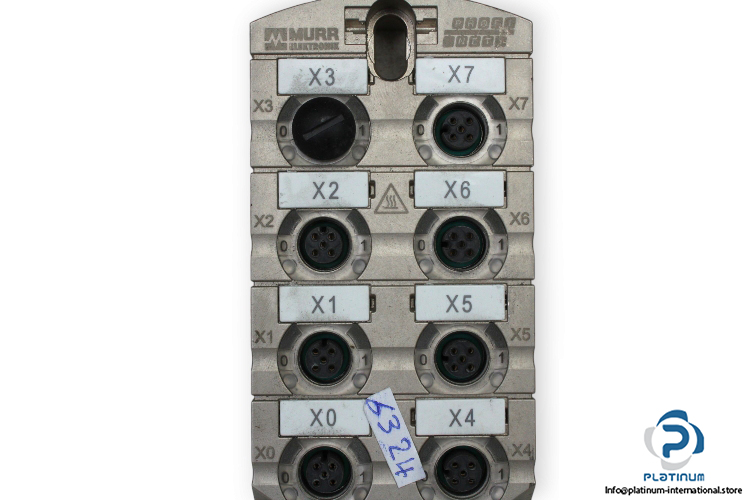

MURR MVK+MPNIO DI8 DO8 POF IRT PP Push Pull Galvanic Separation
The MURR MVK+MPNIO DI8 DO8 POF IRT PP is a high-performance galvanic separation and I/O interface module designed for industrial automation and fieldbus systems. It ensures reliable data and power transmission through push-pull connectivity, providing robust performance in harsh environments. With IP67 protection and POF-based Ethernet communication, it offers safe isolation, high-speed transfer, and flexible installation for distributed control systems.
Manufacturer: MURR
Type: Push Pull Galvanic Separation
Model: MVK+MPNIO DI8 DO8 POF IRT PP
Part No.: 55255
Code: 00-0F-9E-F5-E0-F3
Technical Information
- Operating Voltage: 24 V DC
- Input Type: PNP, for 3-wire Sensors or Mechanical Switch
- Fieldbus: Ethernet 10/100 Mbit/s; 2 × SCRJ45 POF-Push Pull
- Sensor-System/Actuator Supply: Push Pull Power Connector, Max. 12 A
- I/O Ports: M12, 5-pole, A-coded
- Mounting Method: 2-Hole Screw Mounting
- Temperature Range: 0 / 55 °C
- Degree of Protection: IP67
- Dimensions: 56.2 × 63 × 225 mm
