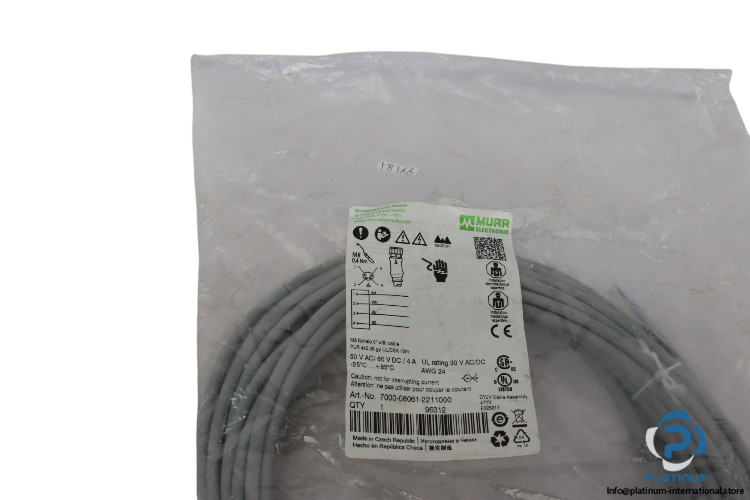

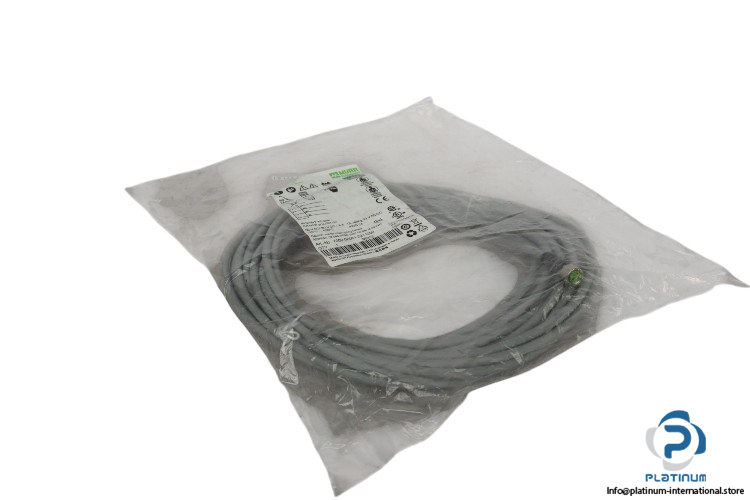

Murr Connection Cable 7000-08061-2211000
The Murr Connection Cable 7000-08061-2211000 is designed to provide reliable and secure electrical connections in various applications. With a nominal voltage of 300 V AC and a current load capacity of 3.6 A per wire, this cable offers robust performance. It is suitable for use in environments with temperatures ranging from -30 to 85°C, providing flexibility and durability.
- Nominal Voltage: 300 V AC
- Current Load Capacity: 3.6 A per wire
- Operating Voltage Max.: 50 V AC / 60 V DC
- Current per Contact Max.: 4 A
- Cable Length: 10 m
- Tightening Torque: 0.4 Nm
- Mounting Method: Inserted, Screwed
- Coating Contact: Gold Plated
- Thread Size: M8 x 1
- Suitable for Corrugated Tube: Internal Diameter 6.5 mm
- Electrical Resistance: 79 „¦/km
- Number of Poles: 4
- Stripping Length: 20 mm
- Rated Surge Voltage: 1.5 kV
- Material Screw Connection: Zinc Die-Casting
- Jacket Color: Gray
- Outer Diameter (Jacket): 4.6 mm
- Degree of Protection: IP65, IP67
- Operating Temperature: -30 to 85°C
