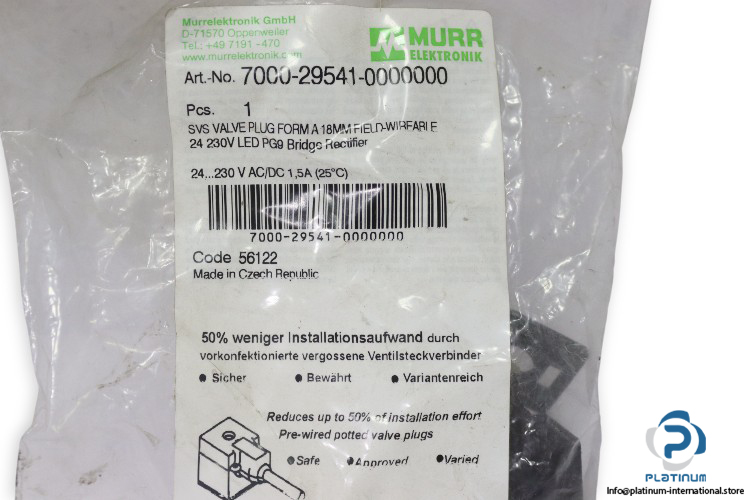

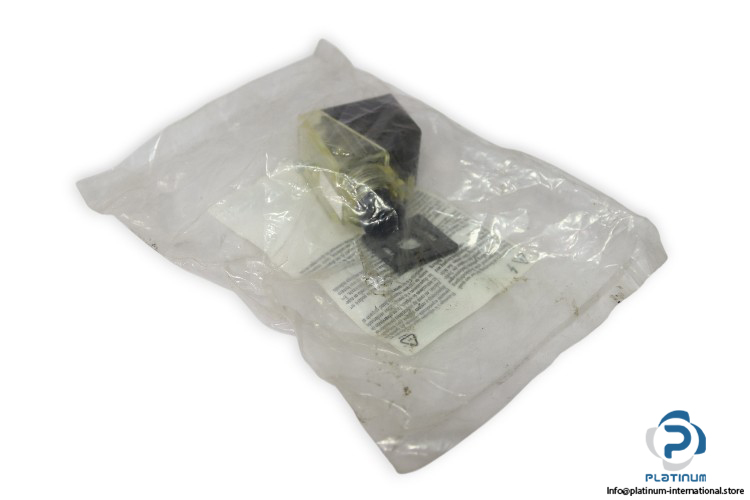

MURR 7000-29541-0000000 Valve Plug
The MURR 7000-29541-0000000 Valve Plug provides secure electrical connection for solenoid valves and sensors. Designed for durability and easy installation, it offers reliable signal transmission in demanding industrial environments.
Manufacturer: MURR
Type: Valve Plug
Model: 7000-29541-0000000
Code No.: 56122
Technical Information
- Mounting Method: Inserted, Screwed
- Form: A
- Degree of Protection: IP65
- Operating Voltage: 24…230 V AC/DC
- Current Operating Per Contact Max.: 1.5 A
- Status Indication LED: Yellow
- Tightening Torque: 0.4 Nm
- Mounting Set: M3
- No. of Poles: 2 + PE
- Cable Entry: PG9
- Clamping Range Min.: 5 mm
- Clamping Range Max.: 9.5 mm
- Operating Temperature: -20 / 60°C
- Dimensions (W x H x D): 28 x 45 x 41 mm
