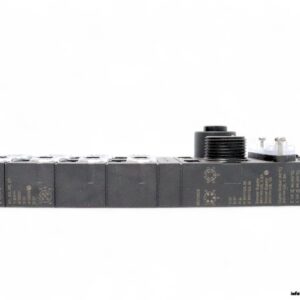

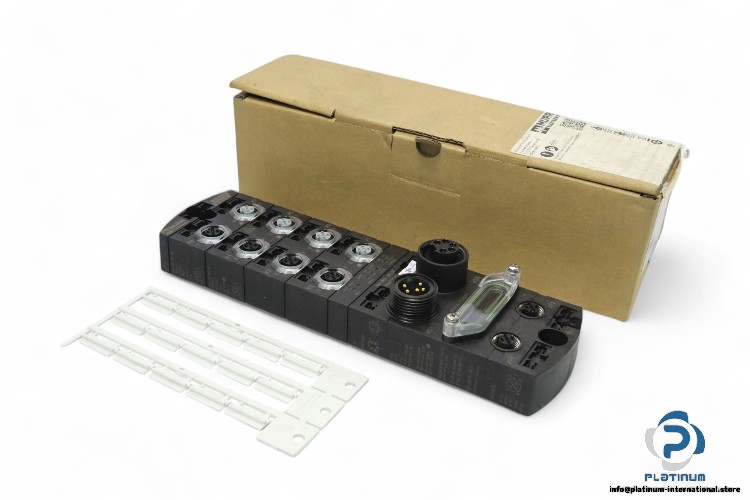

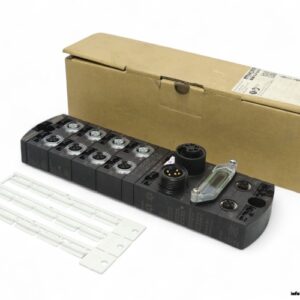

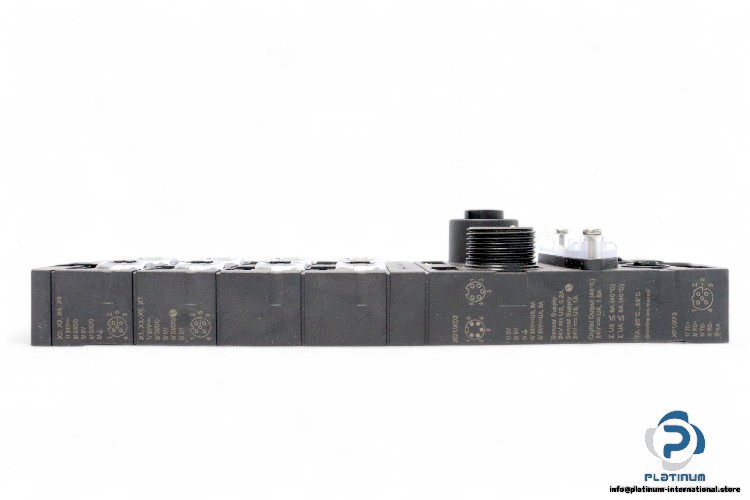

MURR Compact Module – Model IMPACT67PN DIO12 LOL4 IRT

The MURR IMPACT67PN DIO12 LOL4 IRT is a high-performance compact module designed for reliable and efficient industrial communication and control in automated systems. With a supply voltage of 24 V DC (ranging from 18 to 30.2 V), it ensures compatibility with various industrial setups.

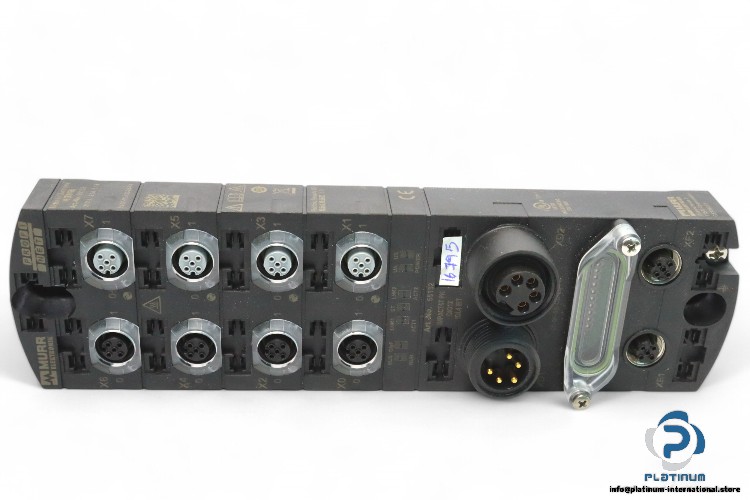

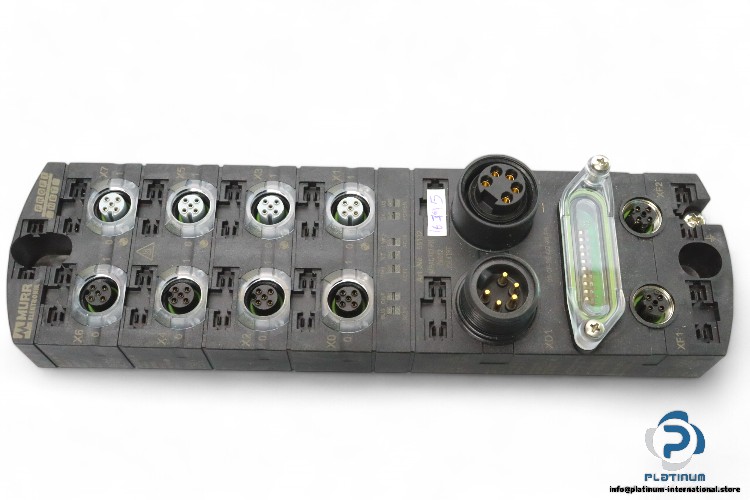

This module features a robust connection interface with 7/8œ 5-pole connectivity, capable of handling up to 9 A. It also includes M12, D-coded connections for easy and secure wiring. The IMPACT67PN module offers multifunctional channels, including 8 M12 ports, with the option of up to 16 digital inputs/outputs when IO-Link is deactivated.

Its digital inputs are compliant with EN 61131-2 Type 3 standards (200 mA), while its digital outputs can handle up to 1.6 A per output. The module operates with a maximum cycle frequency of 50 Hz, with single-channel protection for enhanced durability and safety.

For communication, the IMPACT67PN uses the PROFINET IO transfer protocol, with support for PROFINET Netload Class III. The module supports shared devices/inputs and can handle up to 2 controls, providing flexibility for complex automation applications. The module operates with autonegotiation/Auto MDI/MDI-X functionality and supports transfer rates of up to 100 MBits Full Duplex, ensuring high-speed data exchange. Additionally, the FSU support is maximized at 500 ms.
