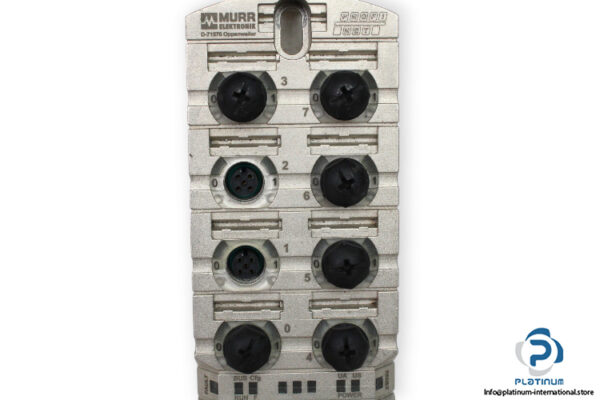

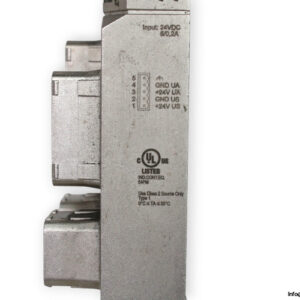

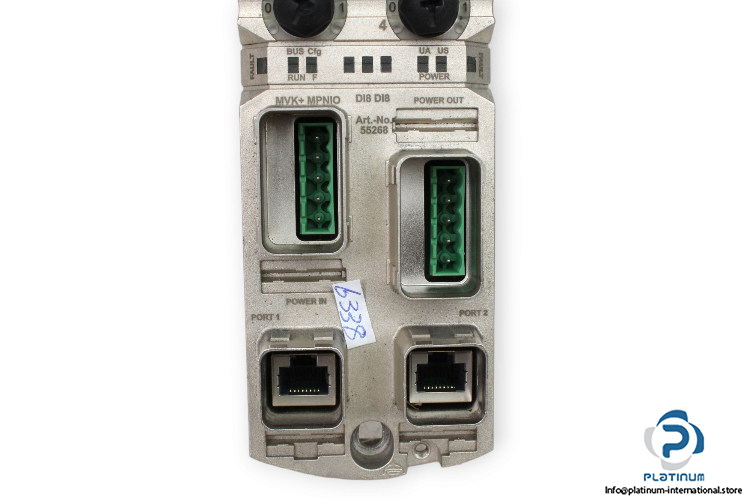

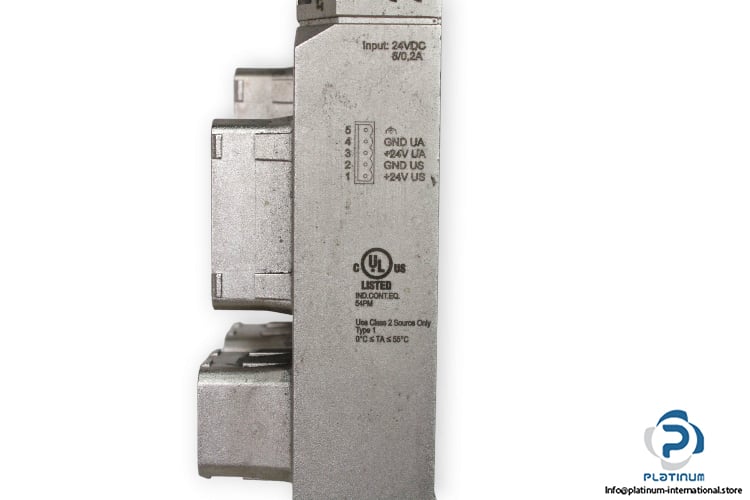

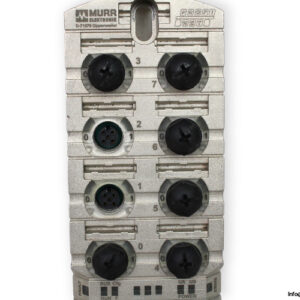

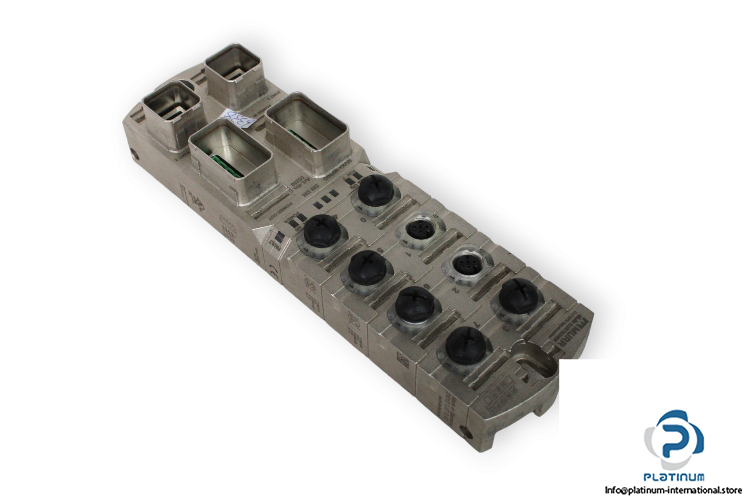

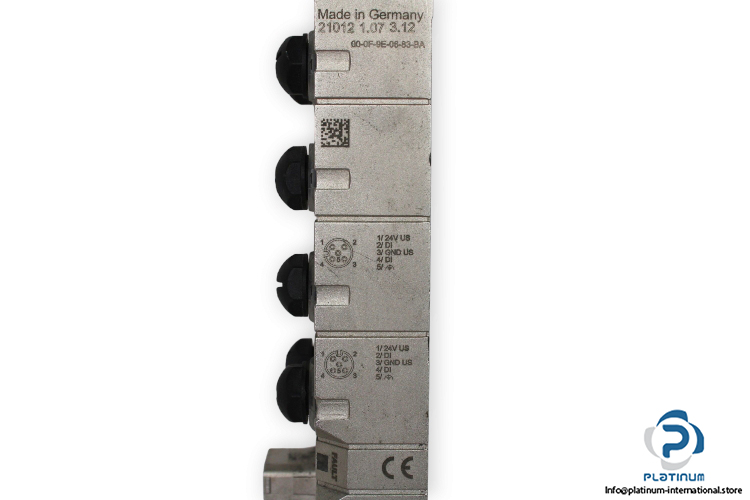

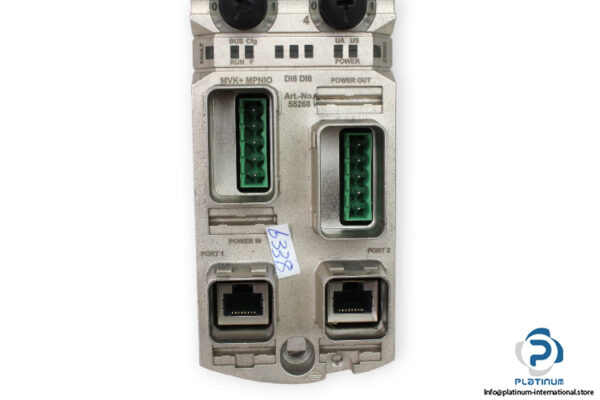

Murr MVK+MPNIODI8DI8 Push Pull Module

The Murr MVK+MPNIODI8DI8 Push Pull Module is a high-performance PROFINET I/O module designed for industrial automation systems. It provides eight digital inputs for PNP sensors or mechanical switches and ensures reliable data communication in demanding environments. Its compact, IP67-rated housing makes it ideal for decentralized field installation in harsh industrial conditions.

Manufacturer: Murr
Type: Push Pull
Model: MVK+MPNIODI8DI8
Art. No.: 55268

Technical Information

• Operating Voltage: 24 V DC
• Total Current Max: 12 A
• No. of Digital Inputs (DI): 8
• Input Type: PNP, for 3-wire Sensors or Mechanical Switches
• Sensor Current: 0.2 A
• Supported Protocol: PROFINET
• Degree of Protection: IP67
• No. of Poles: 8
• Operating Temperature: 0 / 55 °C
• Dimensions: 42.7 × 63 × 225 mm
