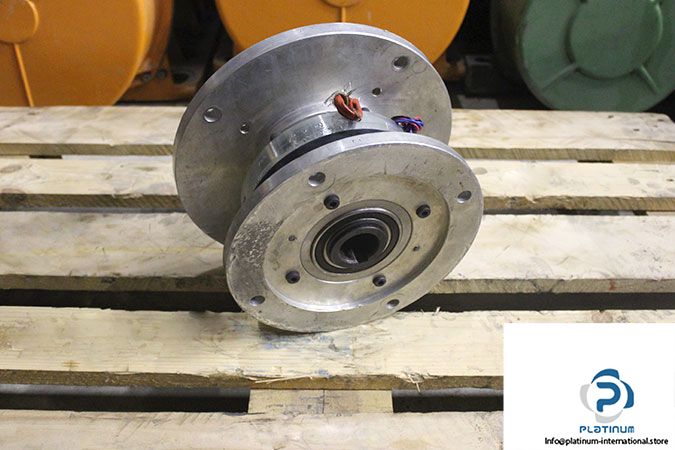

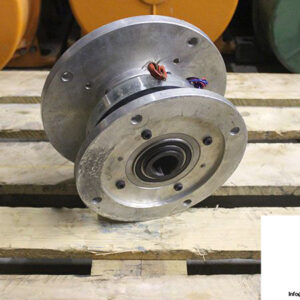

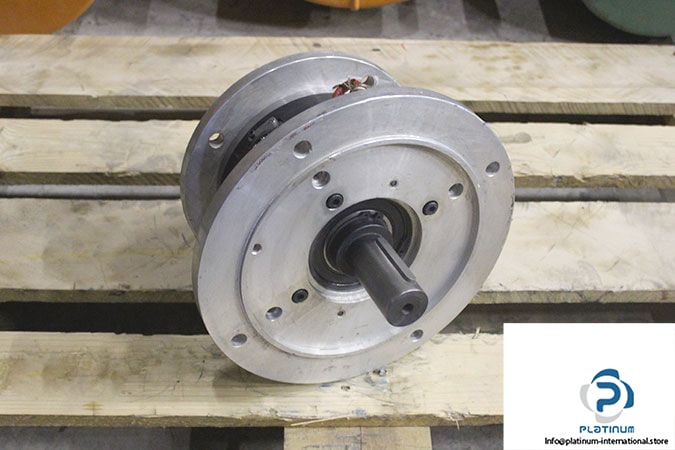

MWM FN185/FC-FA Negative Electromagnetic Brake
The MWM FN185/FC-FA is a high-performance negative electromagnetic brake designed for industrial drive systems. With robust torque capacity, reliable operation at high speeds, and optimized thermal performance, it ensures precise braking and safety in demanding applications.
Manufacturer: MWM
Type: Negative Electromagnetic Brake

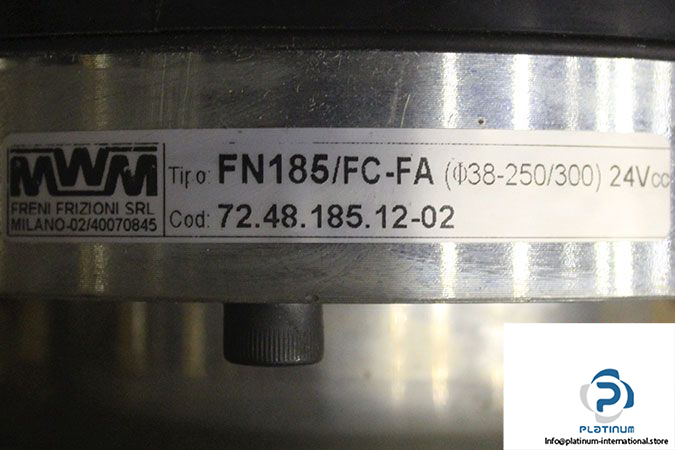

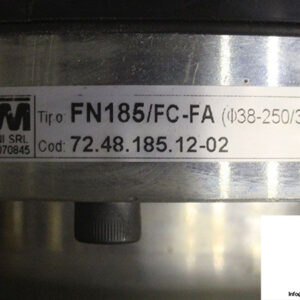

Model: FN185/FC-FA
Code: 72.48.185.12-02
Type Brake: FN / FC-FA
Size: 185.12
Technical information
- Power Supply Voltage: 24 VDC
- Hollow/Shaft Diameter: 38 mm
- Flange Diameter: 300 mm
- Moment Torque: 140 Nm
- Max. Speed: 2600 rpm
- Rated Power at 20°: 54 W
- Rated Power at 120°: 38.9 W
