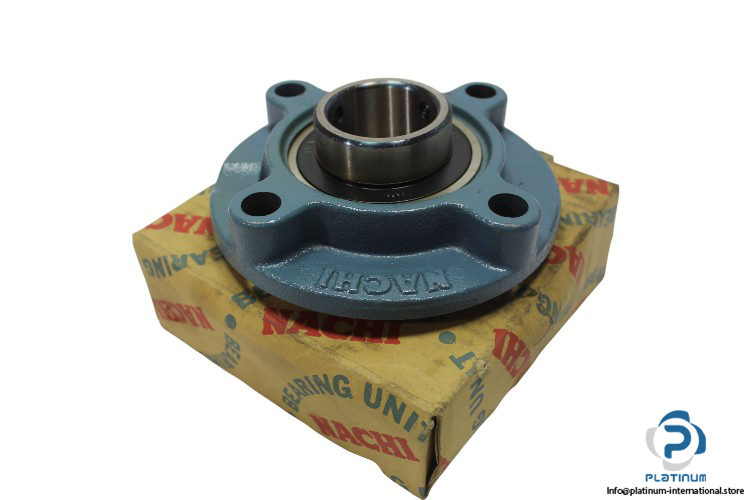

Nachi UCFC 208 Round Flange Ball Bearing

The Nachi UCFC 208 Round Flange Ball Bearing is designed for smooth rotation and high load capacity. Ideal for use in various industrial applications where space is limited and high performance is required.

Manufacturer: Nachi

Type: Round Flange Ball Bearing

Model: UCFC 208

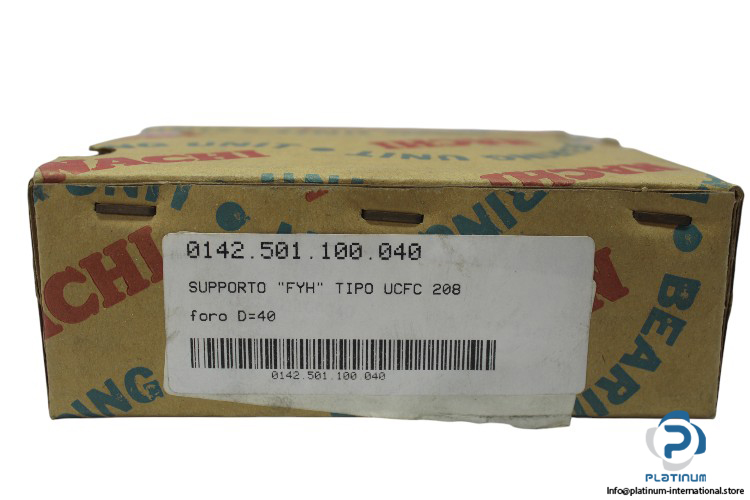

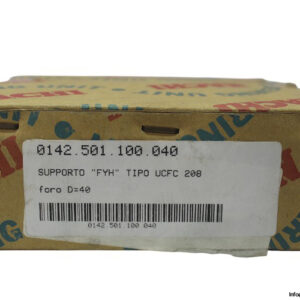

COMAS P/N: 0.142.501.100.040

Technical Information:

• Bearing Number: UC 208
• Housing Number: FC 208
• Bore Diameter (d): 40 mm
• Outside Diameter (L): 145 mm
• Pitch Diameter of Attachment Bolts (J): 120 mm
• Length of Attachment Bolt Hole (N): 14 mm
• Width of Inner Ring (B): 49.2 mm
• Overall Width (A0): 41.2 mm
• Dynamic Load Rating: 29300 N
• Static Load Rating: 17900 N
• Bolt Size: M12
• Locking Device: Set Screw
• Housing Type: Round flange, cylindrical bore
