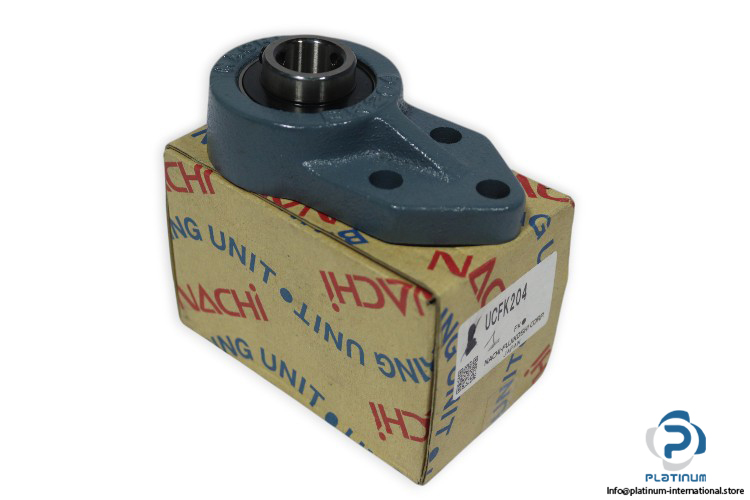

Nachi UCFK204 One Side Flange Housing Unit

The Nachi UCFK204 One Side Flange Housing Unit is a precision-engineered and reliable solution for industrial applications. Featuring the FK 204 housing and UC 204 bearing, this unit offers durability, stability, and efficient operation for demanding environments.

Manufacturer: Nachi

Type: ONE SIDE FLANGE HOUSING UNIT

Model: UCFK204

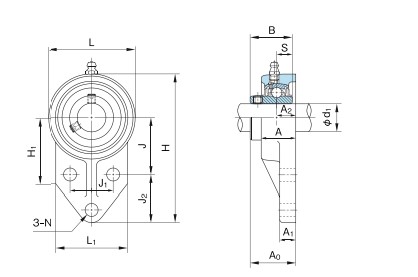

Technical Information:

• Bearing No.: UC 204
• Housing No.: FK 204
• Bore Diameter (d): 20 mm
• Overall Length (L): 62 mm
• Overall Height (H): 110 mm
• Width of Inner Ring (B): 31 mm
• J: 42 mm
• J1: 32 mm
• J2: 27 mm
• H1: 52 mm
• Overall Unit Width (A0): 33.3 mm
• Basic Load Rating (Dynamic Cr): 12800 N
• Basic Load Rating (Static C0r): 6600 N
• Bore Type: Cylindrical Bore
• Locking Device: Set Screw

The Nachi UCFK204 is an ideal choice for machinery requiring accurate alignment, robust construction, and reliable performance in industrial systems.
