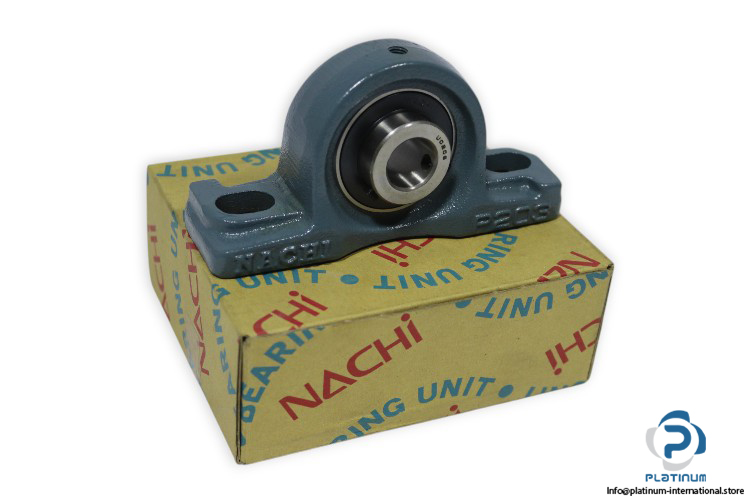

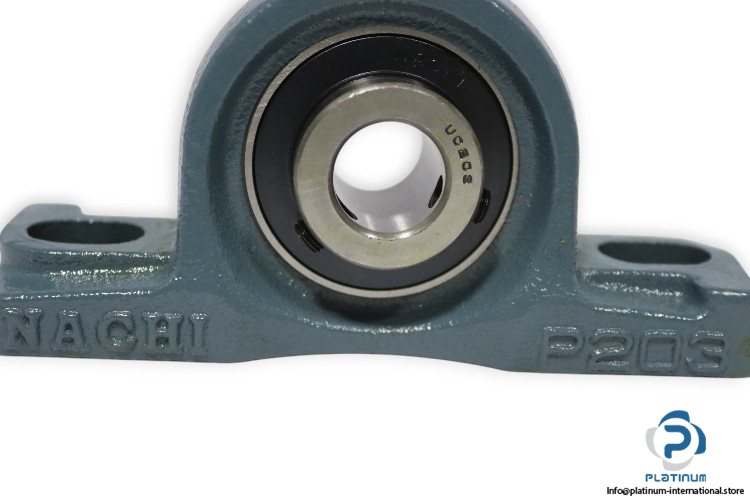

Nachi UCP 203 Pillow Block Ball Bearing Unit

The Nachi UCP 203 Pillow Block Ball Bearing Unit is designed for precision and durability, offering reliable performance in industrial applications. Featuring the P 203 housing and UC 203 bearing, this unit is perfect for systems requiring stability and efficient load management.

Manufacturer: Nachi

Type: PILLOW BLOCK BALL BEARING UNIT

Model: UCP 203

Technical Information:

• Bearing No.: UC 203
• Housing No.: P 203
• Bore Diameter: 17 mm
• Overall Length: 127 mm
• Overall Height: 62 mm
• Width of Inner Ring: 31 mm
• Distance Between Attachment Bolts: 95 mm
• Diameter of Attachment Bolt Hole: 13 mm
• Overall Width: 38 mm
• Bolt Size: M10
• Basic Load Rating (Dynamic): 12800 N
• Basic Load Rating (Static): 6600 N
• Item Per Set: 2

The Nachi UCP 203 Pillow Block Ball Bearing Unit is a versatile and reliable component, providing excellent support, stability, and performance for various industrial systems.
