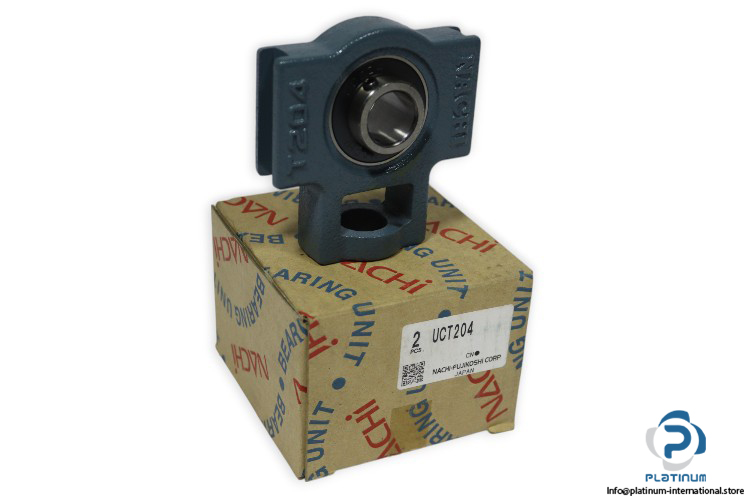

Nachi UCT 204 Take-Up Ball Bearing Unit

The Nachi UCT 204 Take-Up Ball Bearing Unit is a precision-engineered solution designed for industrial applications. With its durable T204 housing and reliable UC204 bearing, this unit provides excellent performance, alignment, and stability in demanding environments.

Manufacturer: Nachi

Type: TAKE UP BALL BEARING UNIT

Model: UCT 204

Technical Information:

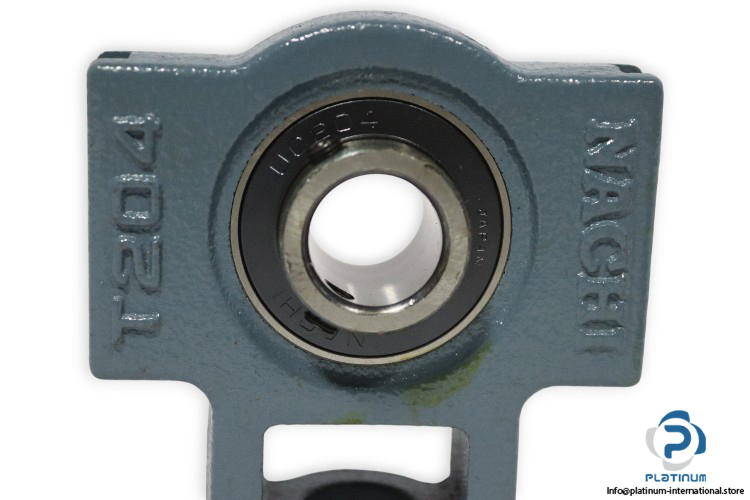

• Housing No.: T204
• Bearing No.: UC204
• Shaft Diameter (d): 20 mm
• Overall Width: 32 mm
• Width of Inner Ring (Bi): 31 mm
• Overall Height: 89 mm
• Height of Attachment End: 51 mm
• Distance from Attachment End Face to Center Line of Spherical Seat Diameter: 61 mm
• Overall Length: 94 mm
• Basic Load Rating (Dynamic, Static): 12800, 6600 N
• Housing Type: Take-up
• Locking Device: Set Screw
• Item Per Set: 2

The Nachi UCT 204 is a reliable choice for industrial systems that require precision, durability, and stable operation under heavy loads.
