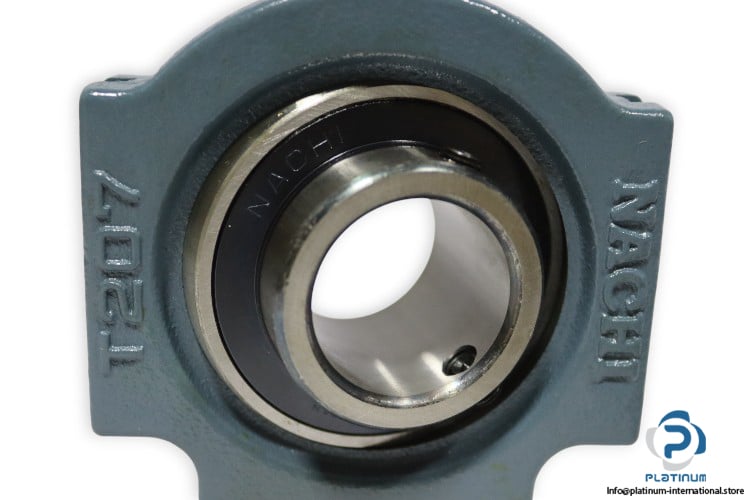

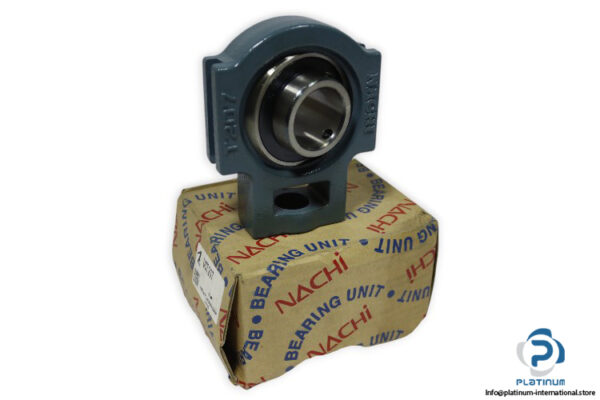

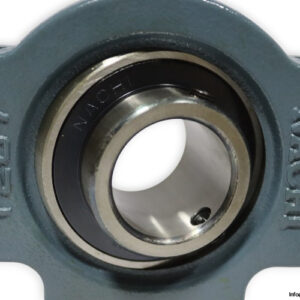

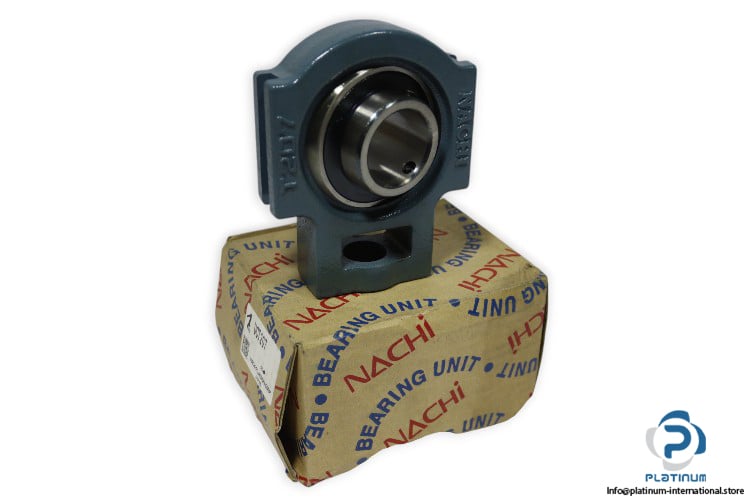

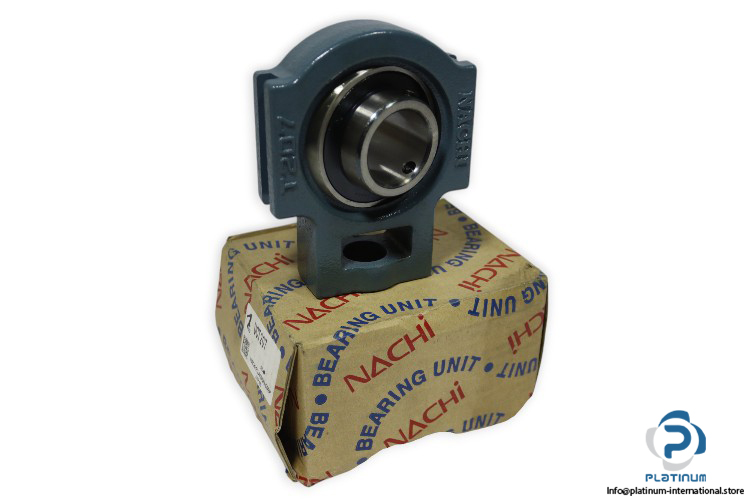

Nachi UCT 207 Take-Up Ball Bearing Unit
The Nachi UCT 207 Take-Up Ball Bearing Unit is a high-performance, durable solution for industrial applications. Featuring the T207 housing and UC207 bearing, this unit ensures precision, stability, and consistent operation in demanding environments.
Manufacturer: Nachi
Type: TAKE UP BALL BEARING UNIT
Model: UCT 207
Technical Information:
- Housing No.: T207

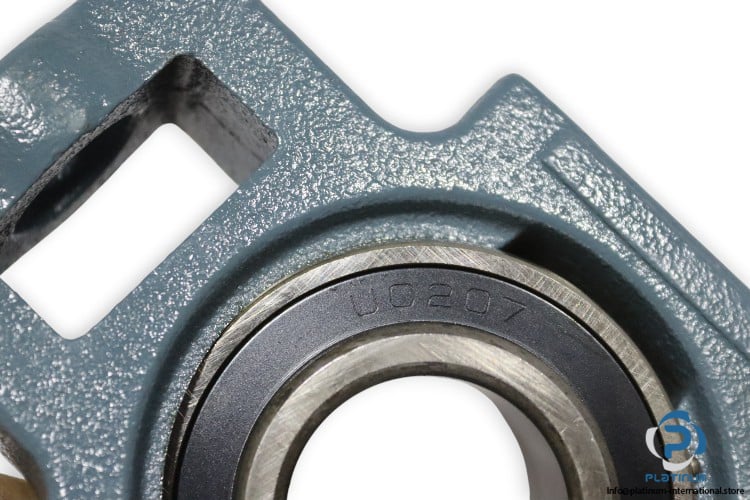

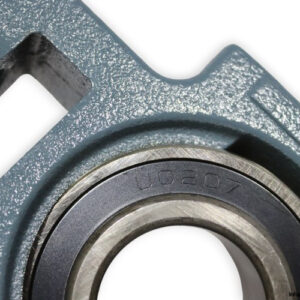

- Bearing No.: UC207
- Shaft Diameter (d): 35 mm
- Overall Width: 37 mm
- Width of Inner Ring (Bi): 42.9 mm
- Overall Height: 102 mm
- Height of Attachment End: 64 mm
- Distance from Attachment End Face to Center Line of Spherical Seat Diameter: 78 mm
- Overall Length: 129 mm
- Basic Load Rating (Dynamic, Static): 25900, 15400 N
- Housing Type: Take-up
- Locking Device: Set Screw
Engineered for reliability and precision, the Nachi UCT 207 Take-Up Ball Bearing Unit is suitable for a variety of industrial systems that require stable and precise performance under heavy loads.
