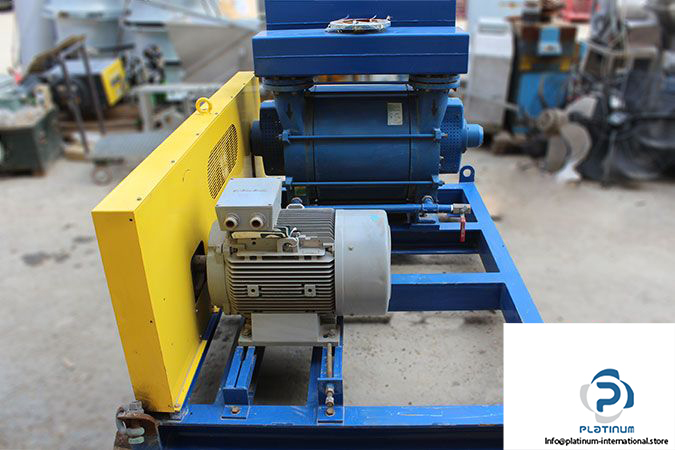

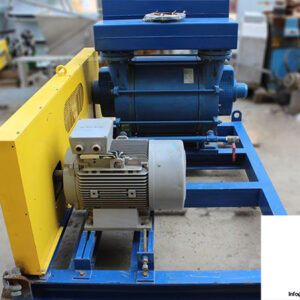

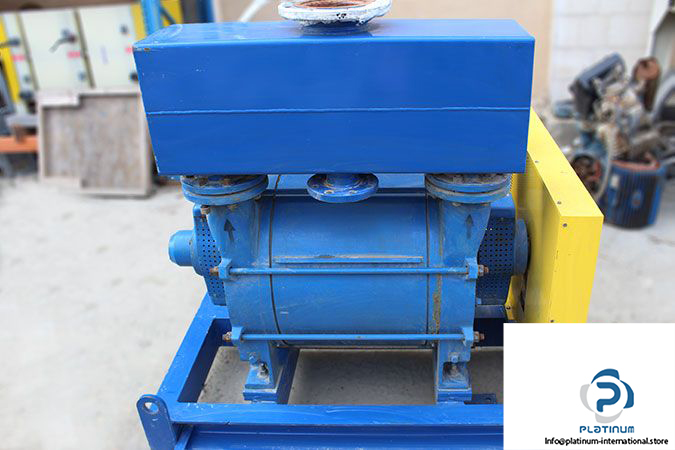

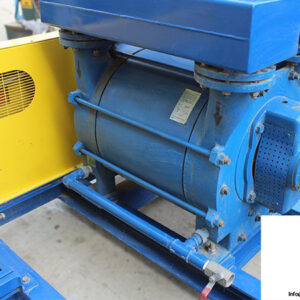

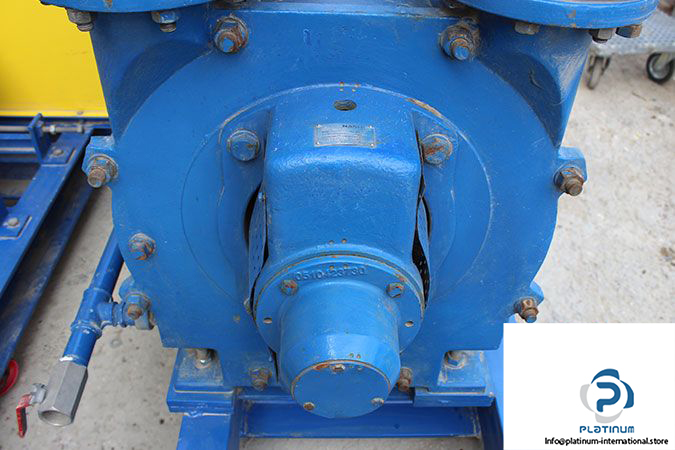

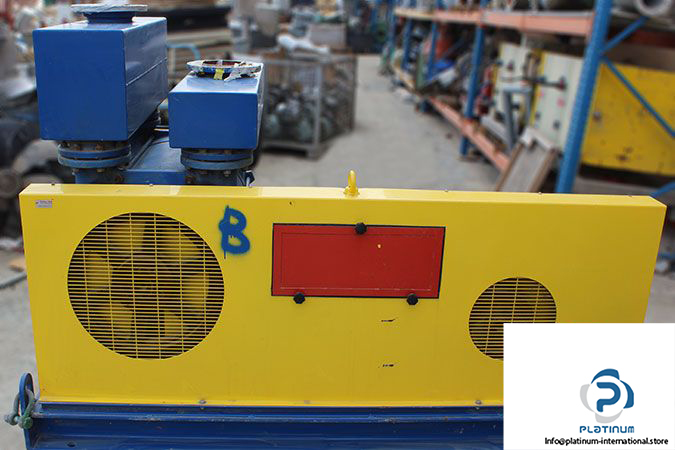

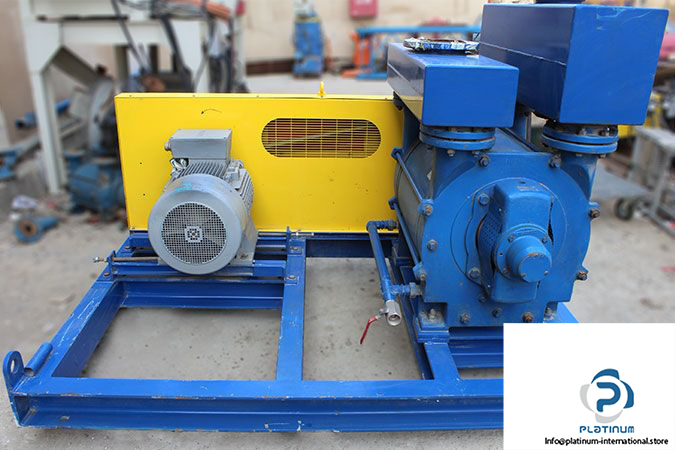

NASH L2BE12530BY4C001 LIQUID RING VACUUM PUMP WITH SIEMENS MOTOR
This robust vacuum system combines the high-efficiency NASH L2BE12530BY4C001 Liquid Ring Vacuum Pump with the reliable SIEMENS 1LA52234AA60-Z Three-Phase Squirrel-Cage Motor. Engineered for demanding industrial processes, it ensures stable performance, high capacity, and reliable operation in hazardous or heavy-duty applications.

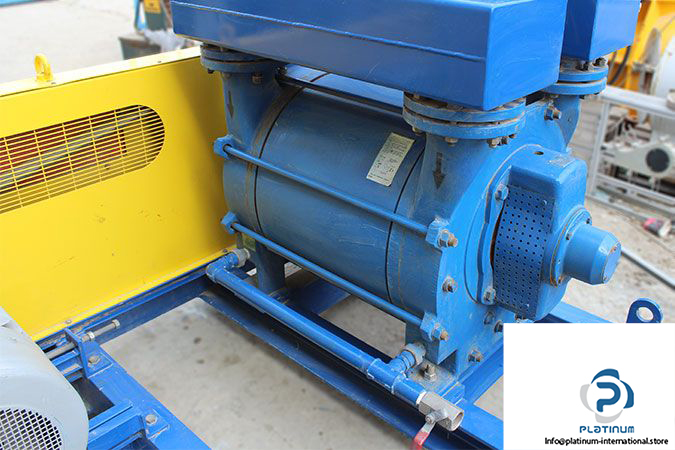

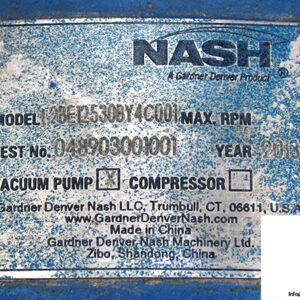

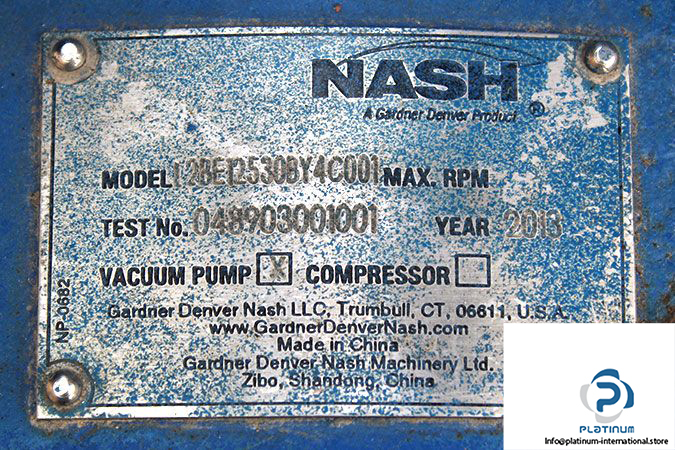

Manufacturer: NASH
Type: Liquid Ring Vacuum Pump
Model: L2BE12530BY4C001
Part No.: 048903001001
Applications
- Reaction Process
- VCM Recovery
- Explosive Gas Compression
- Filtration
- Solvent Recovery
- Gasoline Vapor Recovery
Vacuum Pump Specifications
- Limit Vacuum: 33 mbar

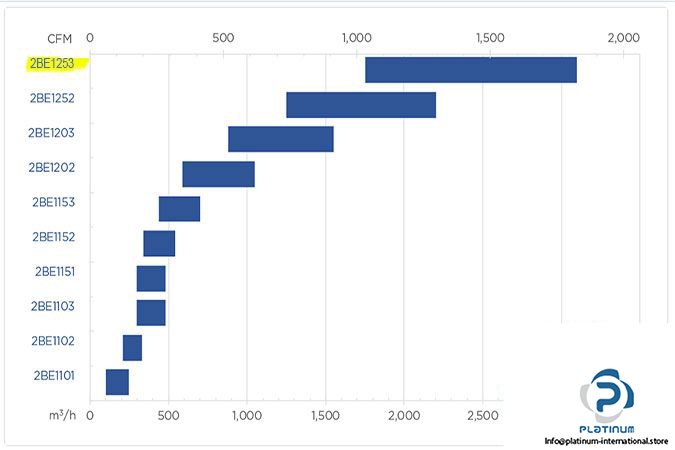

- Capacity: 1750 “ 3100 m3/h
- Construction Materials: Cast Iron, Stainless Steel, or Combination

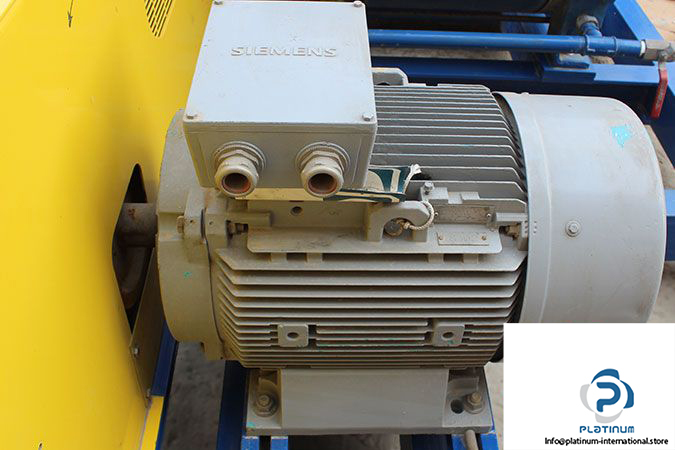

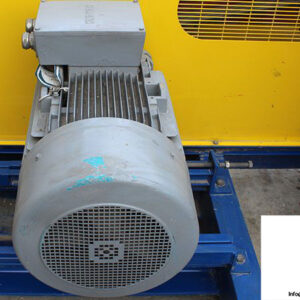

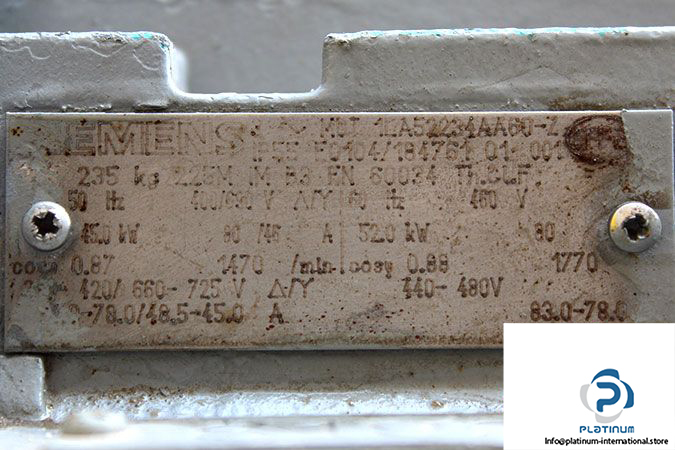

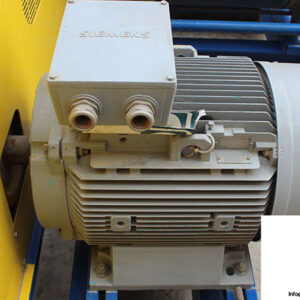

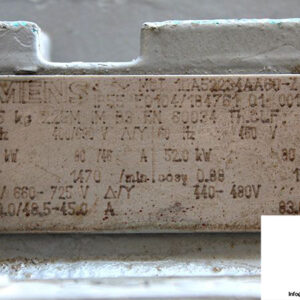

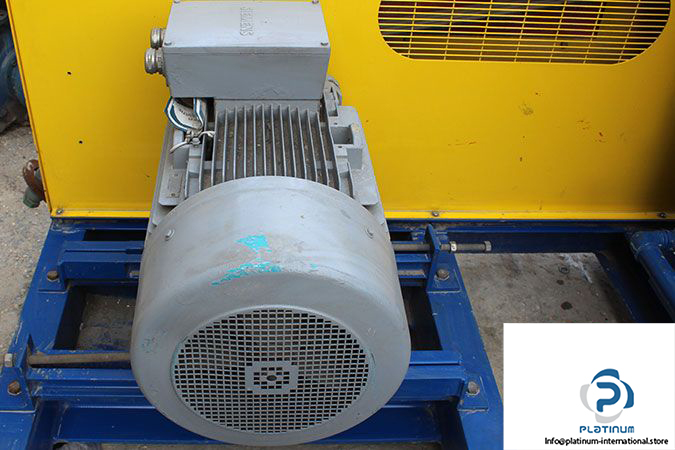

Attached Motor: SIEMENS 1LA52234AA60-Z
- Type: Three-Phase Squirrel-Cage Motor
- Part No.: IP55 E0104/184761 01 001
- Protection Class: IP55
At 50 Hz
- Input Voltage (Star): 690 V AC
- Input Voltage (Delta): 400 V AC
- Input Current (Star): 46 A
- Input Current (Delta): 80 A
- Rated Torque: 292.3 Nm
- Speed: 1470 min»¹
- Output Power: 45 kW
At 60 Hz
- Input Voltage (Delta): 460 V AC
- Input Current (Star): 82 A
- Rated Torque: 280.6 Nm
- Speed: 1770 min»¹
- Output Power: 52 kW
