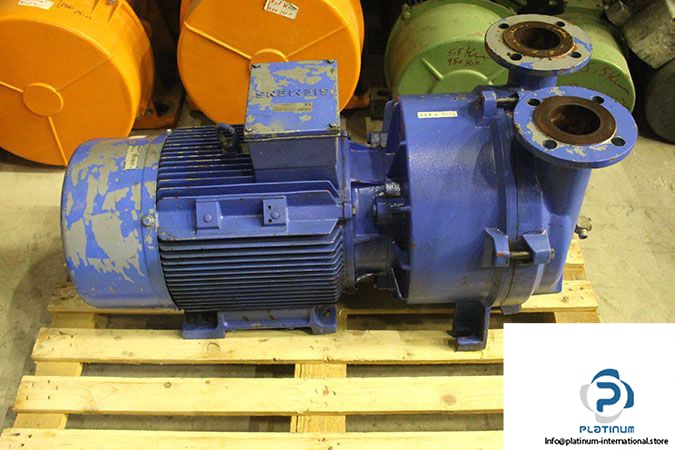

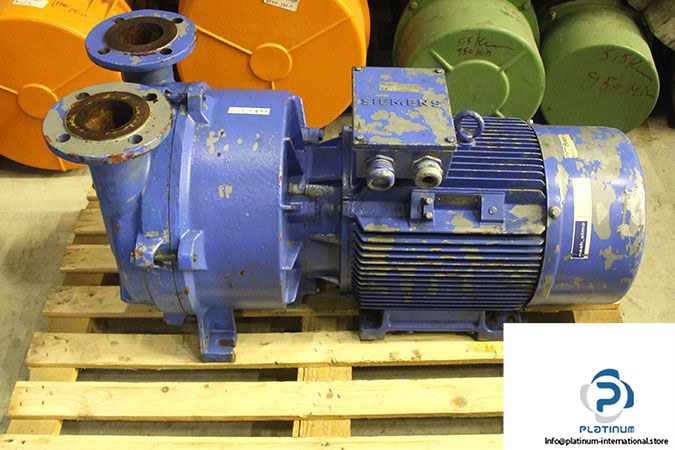

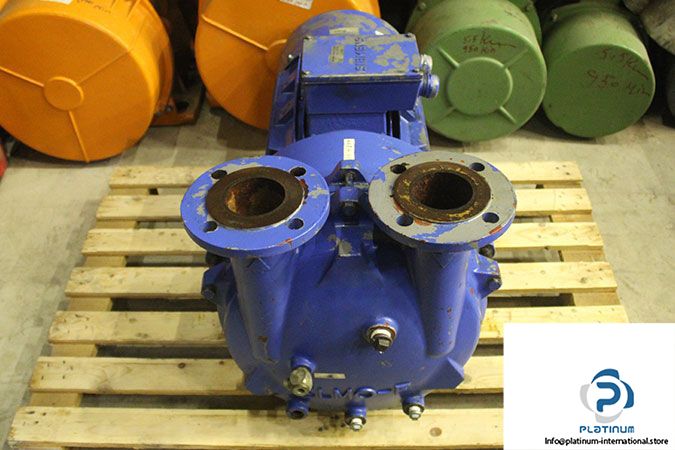

NASH ELMO / ELMO RIETSCHLE 2BV5161-0KD02-6S-Z RING VACUUM PUMP WITH SIEMENS MOTOR
This high-performance ring vacuum pump from Nash Elmo / Elmo Rietschle is engineered for industrial reliability, optimal flow rates, and explosion-proof operation. Attached with a Siemens 3-phase electric motor, this system offers excellent energy efficiency and protection under heavy-duty conditions.

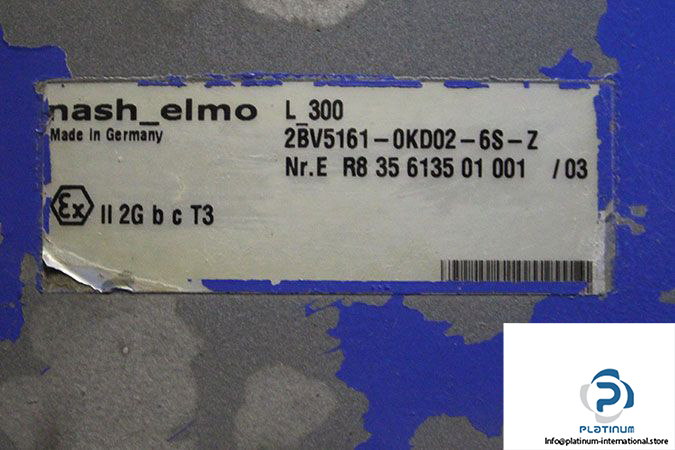

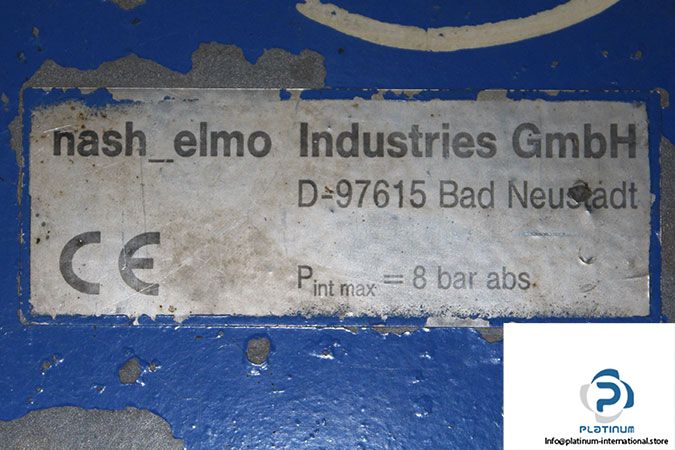

Pump Manufacturer: Nash Elmo / Elmo Rietschle
Type: Ring Vacuum Pump
Model: 2BV5161-0KD02-6S-Z
Part No.: R8 35 6135 01 001 / 03
Dimensions: L 300 mm
Vacuum Pump Technical Information
- Material Conveying Parts: Cast Iron
- Max. Flow Rate: 500 m³/h
- Min. Flow Rate: 160 m³/h
- Inlet Pressure: 8 mbar abs.
- Max. Inlet Pressure: 33.0 mbar abs.
- Operating Liquid Quantity: 2.4 m³/h
- Sound Pressure Level: 74 dB(A) at 50 Hz
- Explosion-Proof Rating: II 2G b c T3
- Rated Speed: 1000/1200 min»¹
- Min. Speed: 913 min»¹
- Max. Speed: 1597 min»¹
- Service Factor: 1.1

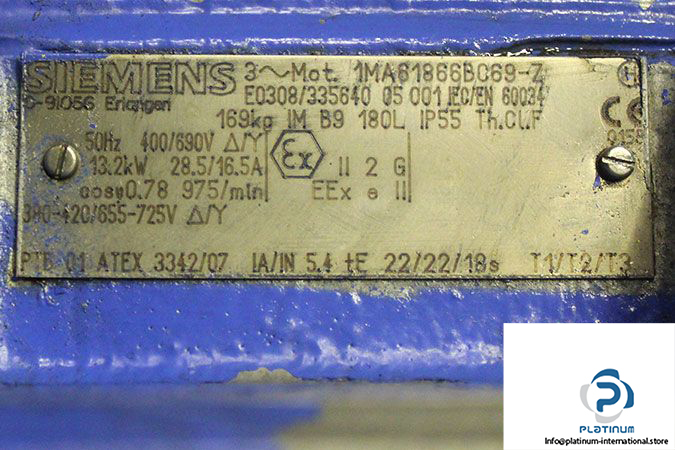

Attached Electric Motor Information
- Motor Manufacturer: Siemens
- Type: 3 Phase Electric Motor
- Model: 1MA61866B069-Z
- Part No.: E0308/335640 05 001 IEC/EN 60034
- Frame Size: 180L
- Rated Voltage: 400/690 V (Delta / Star)
- Rated Current: 28.5/16.5 A
- Rated Power: 13.2 kW
- Rated Speed: 975 min»¹
- Power Factor: 0.82
- Explosion-Proof Rating: II 2G EX e II
- Frequency: 50 Hz
- Mounting Position: B9
- Protection Class: IP55
- Insulation Class: F
